【BETAFPV百達】F722 35A 一體式無刷控 V2 搭配 BLHeli_32 電調

這是 BETAFPV 的飛控與電子零組件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。

商品重點

商品識別：【BETAFPV百達】F722 35A 一體式無刷控 V2 搭配 BLHeli_32 電調
品牌：BETAFPV
商品類型：電子變速器

選購與安裝確認

確認輸入電壓、電流容量、安裝孔距、接頭與韌體目標。
安裝及焊接前請斷電，完成後先檢查短路與極性。
首次上電建議使用限流保護並先拆除槳葉。

包裝與出貨說明

本商品依您選擇的規格出貨；若商品名稱、選項或圖片標示數量，出貨內容以該規格為準。商品圖可能同時展示安裝效果或其他搭配零件，未列於所選規格者不包含。若無法確認版本，請在下單前提供實機型號或照片由我們協助核對。

既有詳細資訊與原廠資料

	V2 with BLHeli_32 ESC	V1 with BLHeli_S ESC
PWM Frequency	24k-128k	24k-96k
ESC Firmware	BLHeli_32.9, 32-bit	BLUEJAY V0.16, 8-bit
Blackbox	16MB	Not included

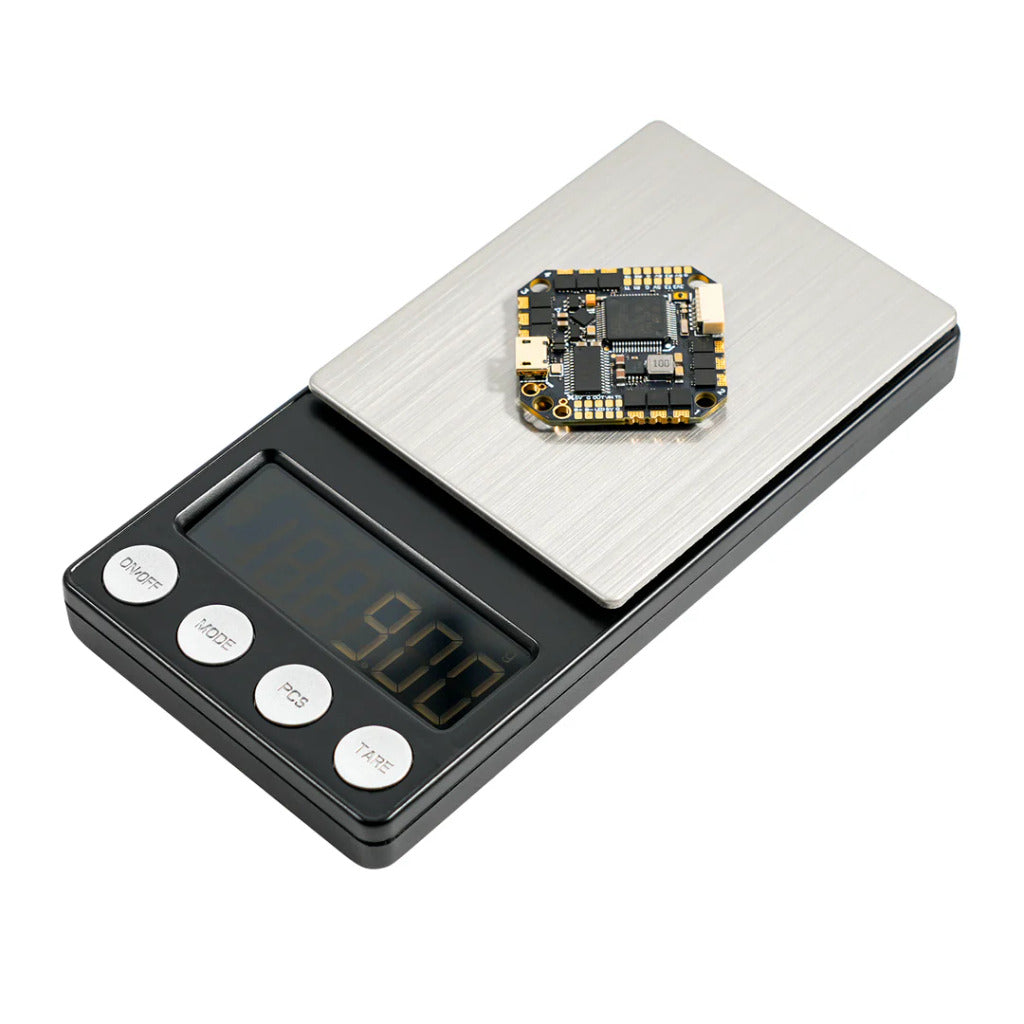

Weight	9.00g	7.06g
Board Thickness	1.6mm	1.4mm

Specification of FC

Item: F722 35A AIO Brushless Flight Controller
Weight: 7.06g(BLHeli_S) / 9.00g (BLHeli_32)
CPU: STM32F722RET6
Six-Axis: ICM42688
Mounting hole size: 26mm*26mm
Firmware version: betaflight_4.3.0_STM32F7X2
OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
Support programmable LED like WS2812 etc
Built-in current sensor
Blackbox: 16MB (V2 with BLHeli_32 ESC included)

Specification of ESC

Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/Flysky Receiver/DSMX Receiver/TBS Crossfire Receiver (requires external connection)
Input voltage: 2S-6S Lipo
Continuous current: 35A
Peak current: 40A
ESC firmware: BLUEJAY G_H_30_48_v0.16 (BLHeli_S) / BETAFPV_35A_V2_BLHeli_32_Multi_32_9 (BLHeli_32)
Indicators: Power indicator (Red) / FC indicator (Blue)
Capacitance: CS|5*10*13mm|470μF|35V
Connector: 80mm 14AWG silicone cable with XT60
Recommended motors: 14XX series, 15XX series, 16XX series, 18XX series, 20XX series

BLHeli_32 ESC Firmware

The F722 35A AIO FC has two boards with different ESC versions for choice. The V2 board uses AT32F421G8U7 MCU, a 32-bit ESC chip, with BLHeli_32 ESC firmware. This firmware supports up to 128k PWM frequency, featuring faster processing speed and unlocking more functions for the flight.

	BLHeli_32 ESC	BLHeli_S ESC
MCU	AT32F421G8U7	EFM8BB21F16G-C
Firmware Version	BLHeli_32.9, 32-bit	BLUEJAY V0.16, 8-bit
PWM Frequency	24k-128k	24k-96k
Bidirectional DSHOT	Support	Support
Signal Support	PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Know More About ICM42688 Gyro

The F722 FC ICM42688 version has the same solder pad and layout as BMI270 except for the gyro chip. Besides, you can also find the difference in Betaflight settings.

The ICM42688 gyro supports 8.00 kHz gyro update frequency compared with the BMI270 gyro which supports 3.20 kHz. When using a 6S battery, the ICM42688 gyro has a good performance.

The degree between ICM42688 and BMI270 gyro is different. When configuring F722 FC ICM42688 version, the gyro degree should be set to CW270°.

Diagram for F722 35A AIO FC

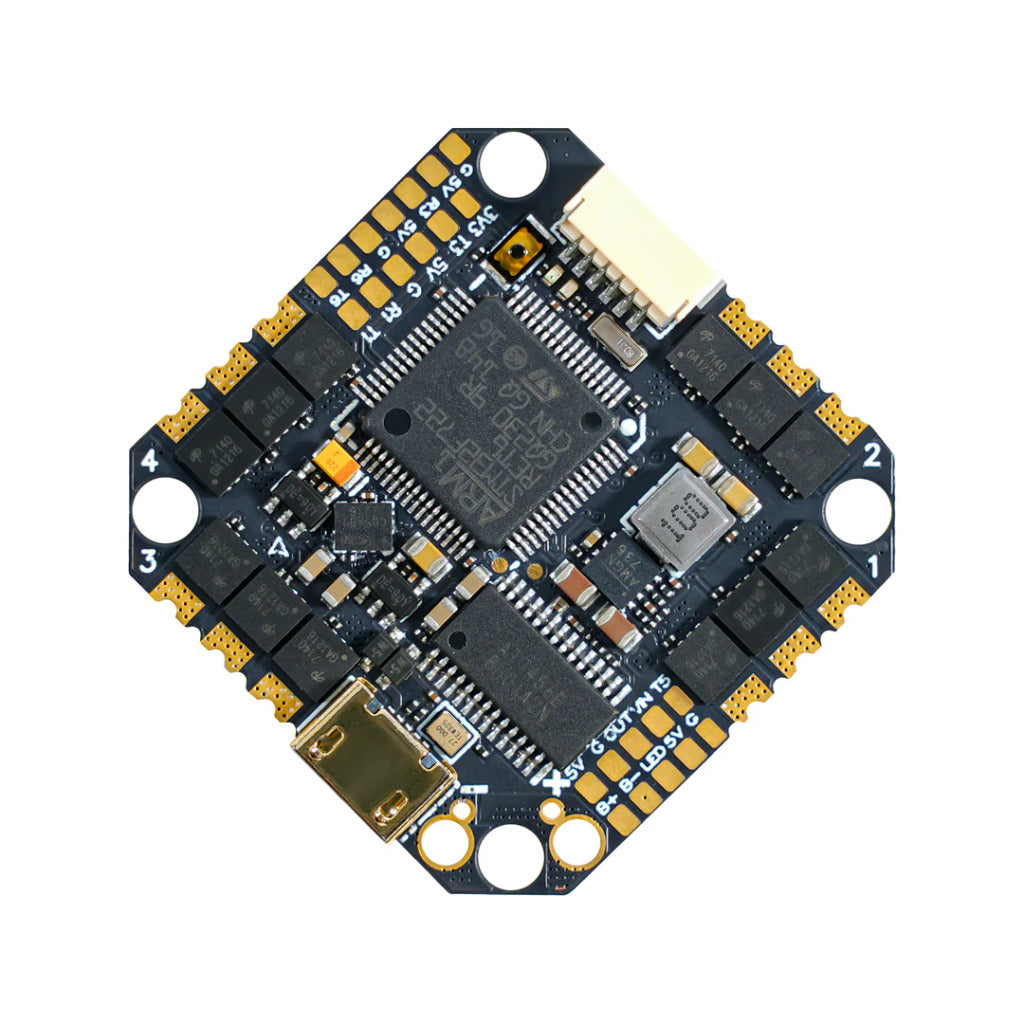

The below picture is the top front of the F722 35A AIO Brushless FC. (Both V1 and V2 boards have the same solder pad and connector ports.)

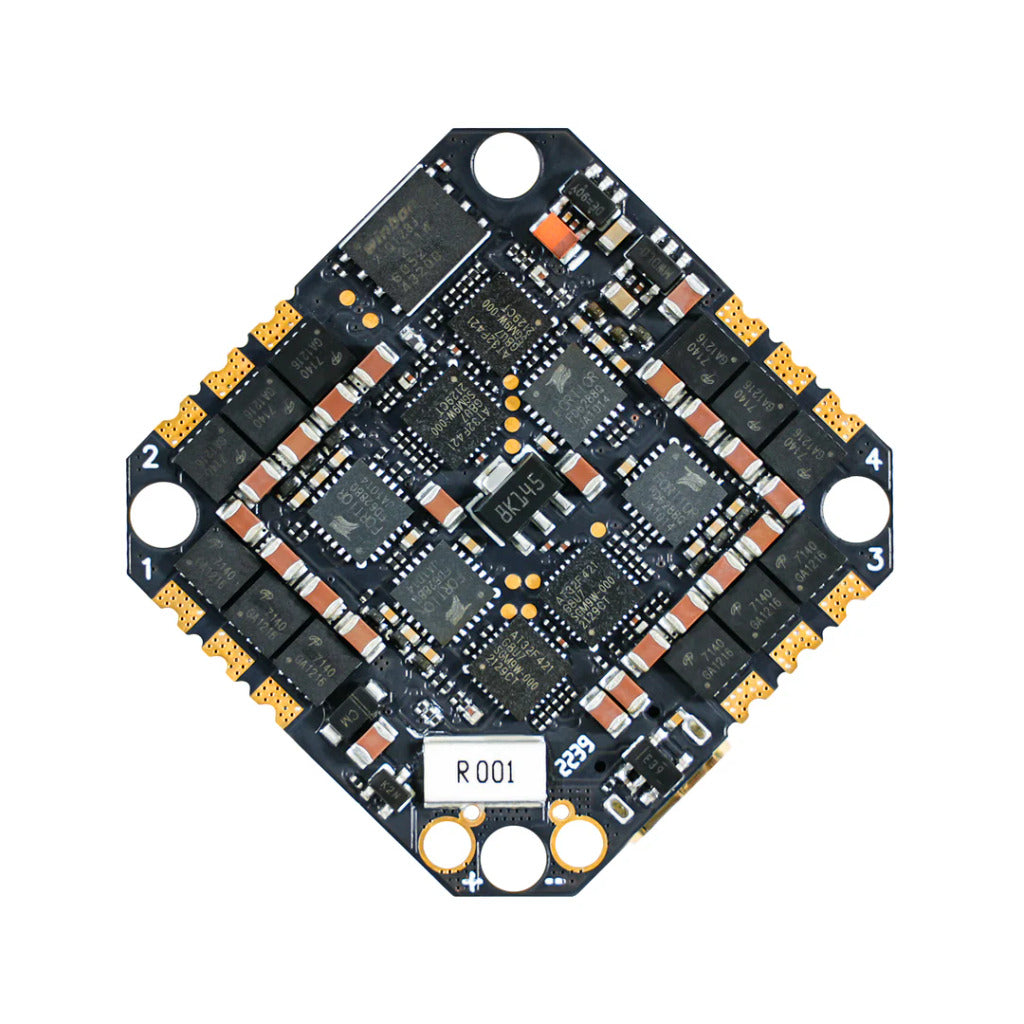

The below picture is the bottom front of the F722 35A AIO Brushless FC. (Both V1 and V2 boards have the same solder pad and connector ports.)

There are 2 LEDs on the bottom of the board to indicate the status, including the FC LED (Blue) and FC Power LED (Red). The LED status for V1 and V2 boards are the same.
