【BETAFPV百達】X-Knight Carbon Fiber 5'' Frame V2 Kit 幾架

Specification

• Material: T800 Carbon Fiber
• Wheelbase: 200mm
• Weight: 26.44g

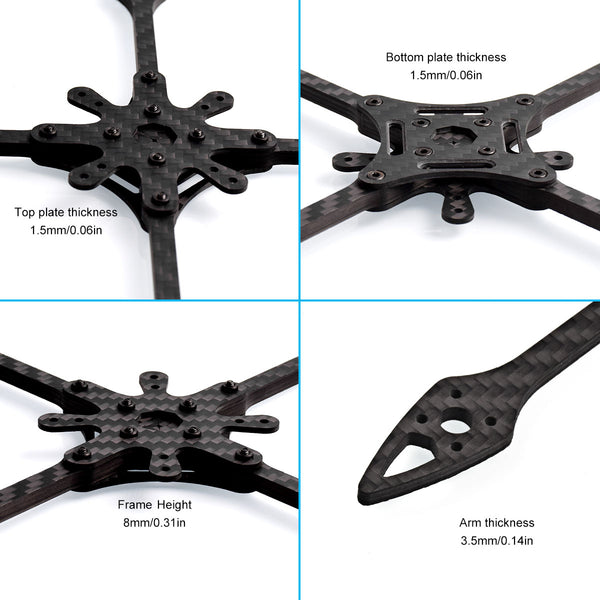

• Frame height: 8mm
• Top plate thickness: 1.5mm
• Bottom plate thickness: 1.5mm
• Arm thickness: 3.5mm
• Battery protected plate thickness: 1.5mm

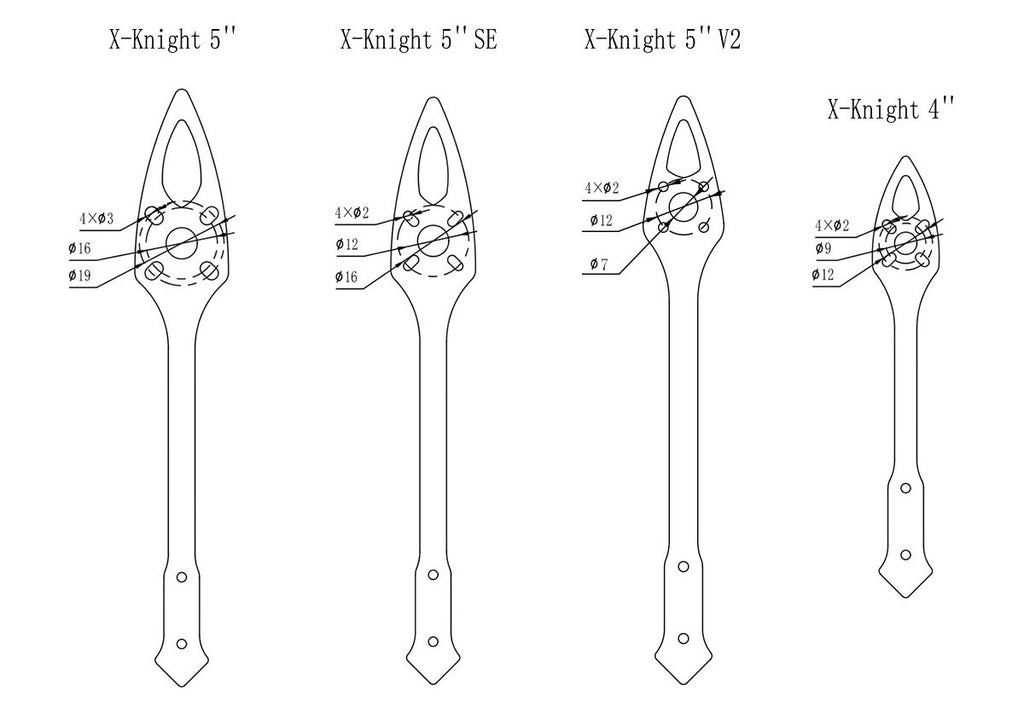

• Motor mounting hole:  12 x 12
• FC mounting hole: 26.5mm x 26.5mm

Recommended Parts

• Flight Controller: F4 35A AIO Brushless FC
• Compatible Propellers: Gemfan 5125 3-Blade props / HQ 5025 3-Blade Props
• Battery: 550mAh 6S 75C battery
• Motor: 1805 1550KV Brushless Motors / 1606 1550KV Brushless Motors

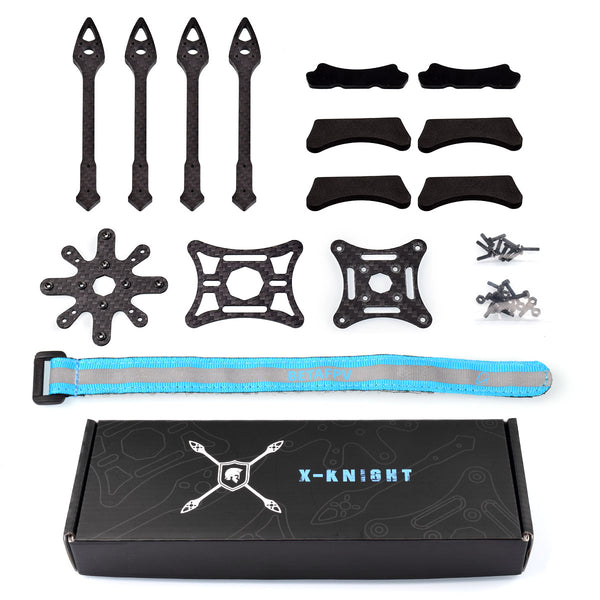

Package

• 1 * Top Plate
• 1 * Bottom Plate
• 4 * Arms
• 1 * Battery Protected Plate
• 8 * M2×8 Countersunk Screws
• 4 * M2×10 Screws
• 8 * M2 Nuts
• 8 * M2*1.85 Nuts
• 1 * Battery Strap
• 2 * Anti-slip Battery Mats
• 2 * 3mm Anti-impact Battery Mats
• 2 * 5mm Anti-impact Battery Mats

or

• 2* 5 inch Arm Replacement
