【HDZero】Whoop V2 數位圖傳

這是 HDZero 的影像傳輸配件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。

商品重點

商品識別：【HDZero】Whoop V2 數位圖傳
品牌：HDZero
商品類型：影像傳輸

選購與安裝確認

確認頻段、接頭形式、極性及圖傳／接收端相容性。
圖傳設備通電前應先接妥天線，避免空載造成損壞。
安裝時請避免天線、線材與槳葉或高溫元件接觸。

包裝與出貨說明

本商品依您選擇的規格出貨；若商品名稱、選項或圖片標示數量，出貨內容以該規格為準。商品圖可能同時展示安裝效果或其他搭配零件，未列於所選規格者不包含。若無法確認版本，請在下單前提供實機型號或照片由我們協助核對。

既有詳細資訊與原廠資料

下單前請先聯繫我們確認有無現貨。

Description

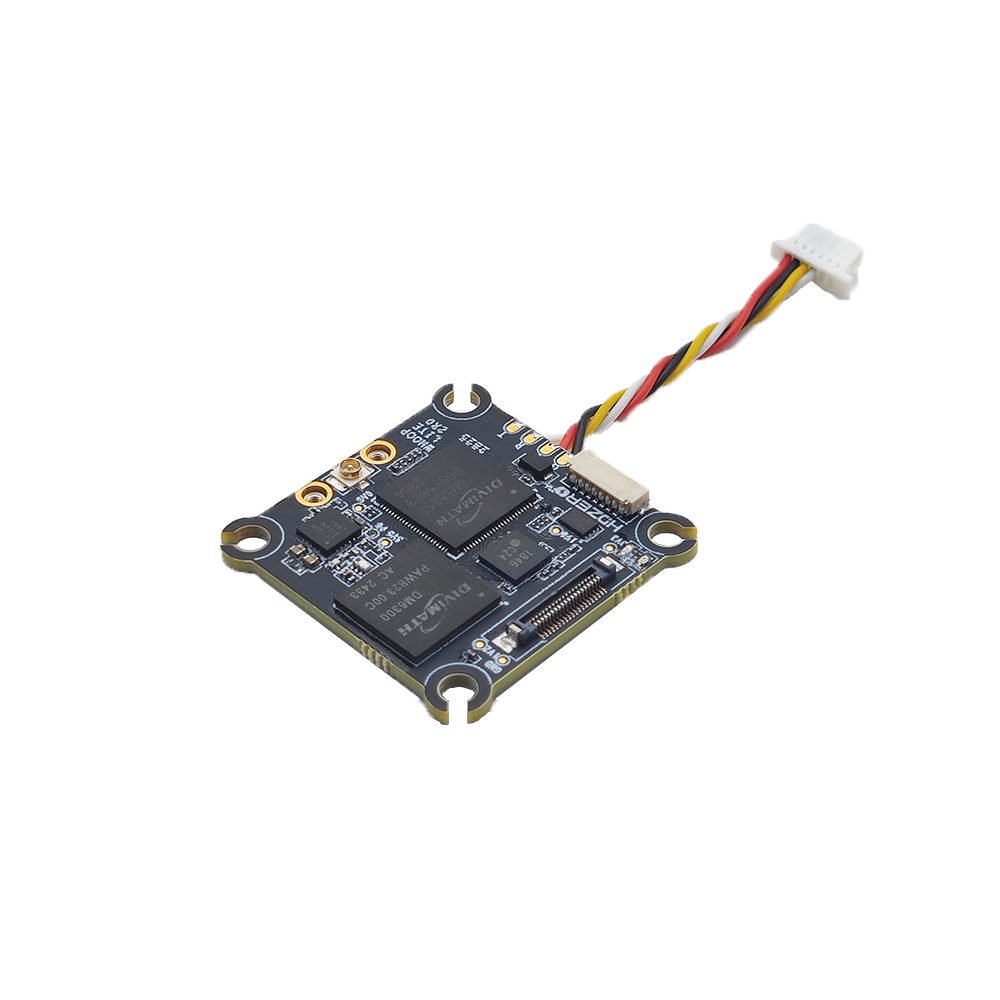

The HDZero Whoop V2 VTX is the evolution of the Whoop Lite VTX, designed for pilots who want the same HDZero performance, but with improved durability, reliability, and ease of installation.

Supporting all HDZero MIPI cameras, including 540p90 , 720p60, and 1080p30 modes, the Whoop V2 delivers up to 200 mW of clean, low-latency HD video over 5.8 GHz.

A thicker PCB provides greater impact resistance (addressing a common failure point of the Whoop Lite), a factory-soldered wire harness with Betaflight standard digital VTX plug simplifies installation, and a brass antenna retention bar keeps the U.FL connector secure through crashes and vibration.

With its compact 31 × 31 mm footprint and 25.5 × 25.5 mm mounting pattern, the Whoop V2 fits everything from 80 mm whoops to 4-inch micro drones. For ultralight builds, our HDZero AIO boards combine FC + VTX with an AHD camera interface to save both weight and space.

Power input range: 3 – 12.6 V (1S – 3S)

Notes:
• No reverse-polarity protection — incorrect wiring will permanently damage the unit.
• Ensure ≥ 1.5 A available current when powered from a 5 V pad.
• Direct 1 S power may dip below 3 V on throttle punch-outs, causing video loss.
• External capacitor recommended for 3S setups.

Includes M2 rubber grommets and a brass antenna bar for secure mounting. For high-speed racing, consider the HDZero Race V3 VTX which has a more common 20 x 20 mm mounting pattern for 5in builds.

Specifications

Feature	Whoop V2 VTX	Whoop Lite VTX Comparison
Supported Cameras	All HDZero MIPI cams
Video Resolution	720p60 / 540p90 / 1080p30
RF Power Output	25 mW / 200 mW
Frequency Range	5.725 – 5.850 GHz
RF Connector	Secured U.FL with brass bar	Standard U.FL (no retention bar)
Video Connector	MIPI
Durability / PCB	Thicker PCB for impact resistance	Thinner PCB – more prone to damage
Wiring / Install	Pre-soldered wire harness	Manual soldering required
Size	31 × 31 mm (29 × 29 inner)	32.5 × 32.5 mm (29 × 29 inner)
Mounting Pattern	25.5 × 25.5 mm (M2)
Weight	5.4 g (5.1 g w/o wires)	4.9 g (4.6 g w/o wires)
Board Thickness	~1.6 mm	~1.2 mm (no shielding)
Power Input	3 – 12.6 V (1S – 3S)
Power Consumption	5 – 6 W
Control / OSD	MSP OSD / Smart Audio
Recommended Use	80 mm whoops – 4″ micro drones	65 – 85 mm whoops
Mounting Hardware	M2 grommets + brass bar included	M2 grommets only
Antenna Included	Not included
Alternative for Ultralight Builds	HDZero AIO (FC + VTX, AHD interface)
