【HDZero】Gamma 45A HD-Ready 一體式飛控｜酷飛 COOLFLY

【HDZero】Gamma 45A HD-Ready 一體式飛控

$3,155.00

推薦搭配配件

⚠️ 下單前務必先確認現貨

商品庫存流動快速，請先聯繫酷飛 LINE 官方帳號，確認商品型號、規格與現貨後再下單。

聯繫酷飛官方 LINE LINE ID：@729jvyax

zingala 銀角零卡分期

想使用銀角零卡分期付款，請前往本商品的銀角頁面選擇方案並完成申請。

前往銀角分期付款

【HDZero】Gamma 45A HD-Ready 一體式飛控

這是 HDZero 的飛控與電子零組件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。

商品重點

商品識別：【HDZero】Gamma 45A HD-Ready 一體式飛控
品牌：HDZero
商品類型：飛控／電調

選購與安裝確認

確認輸入電壓、電流容量、安裝孔距、接頭與韌體目標。
安裝及焊接前請斷電，完成後先檢查短路與極性。
首次上電建議使用限流保護並先拆除槳葉。

包裝與出貨說明

本商品依您選擇的規格出貨；若商品名稱、選項或圖片標示數量，出貨內容以該規格為準。商品圖可能同時展示安裝效果或其他搭配零件，未列於所選規格者不包含。若無法確認版本，請在下單前提供實機型號或照片由我們協助核對。

既有詳細資訊與原廠資料

下單前請先聯繫我們確認有無現貨。

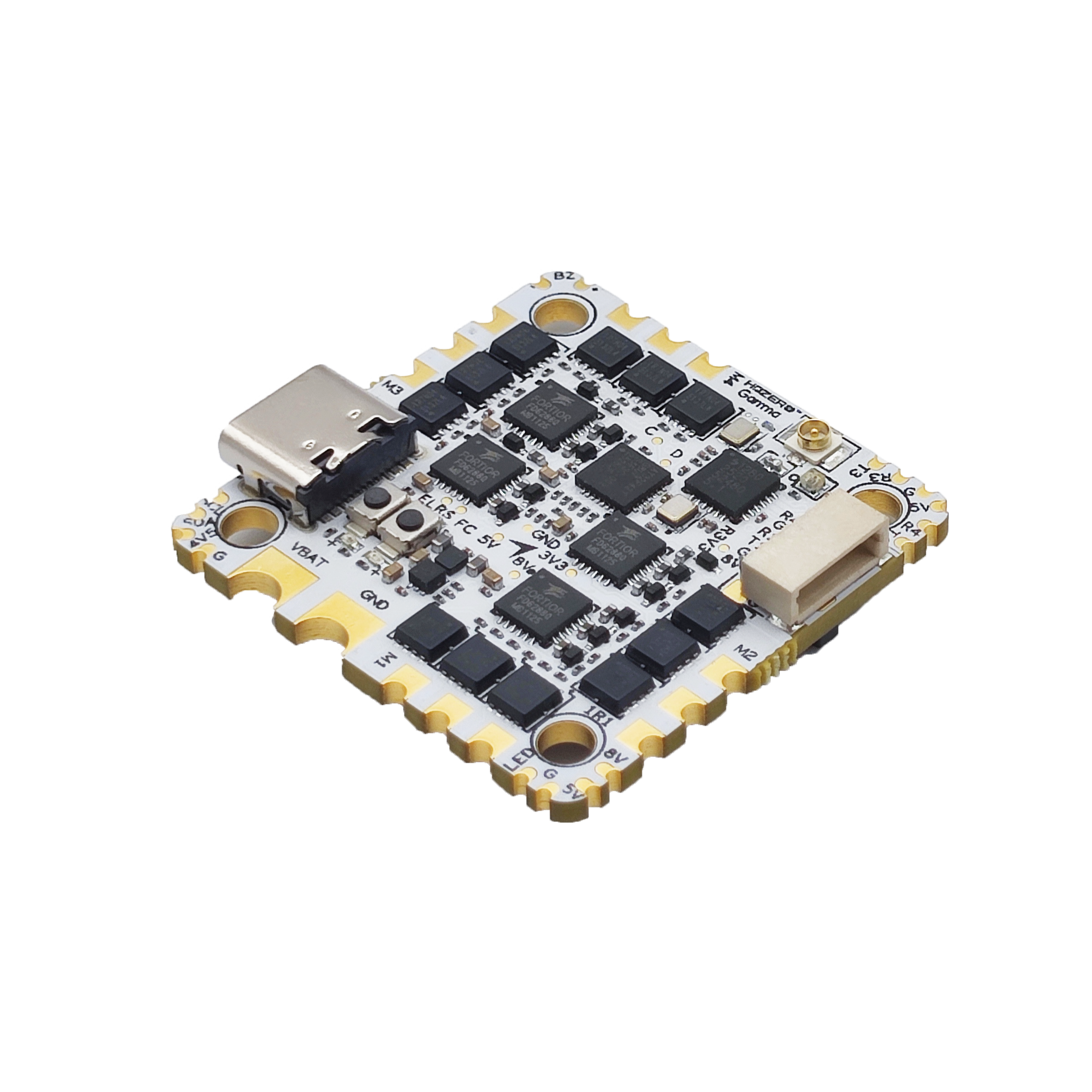

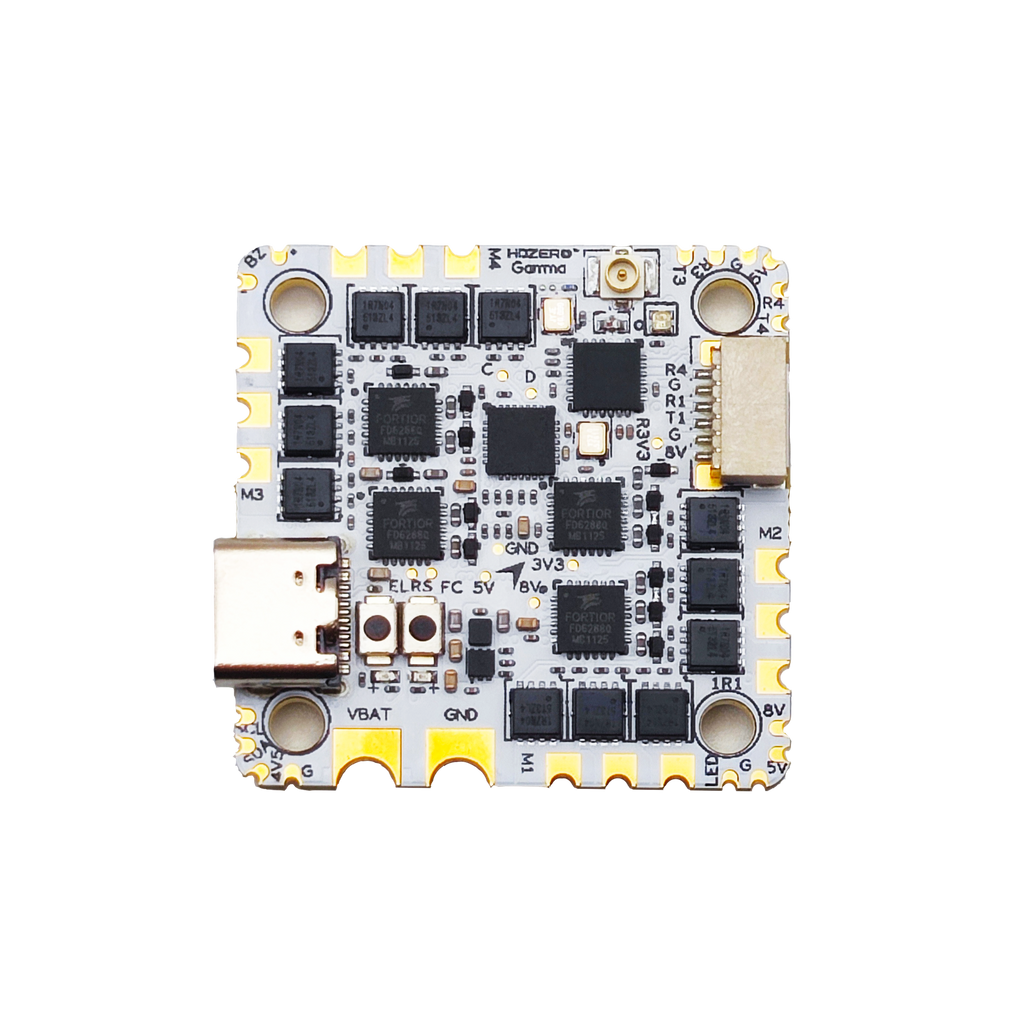

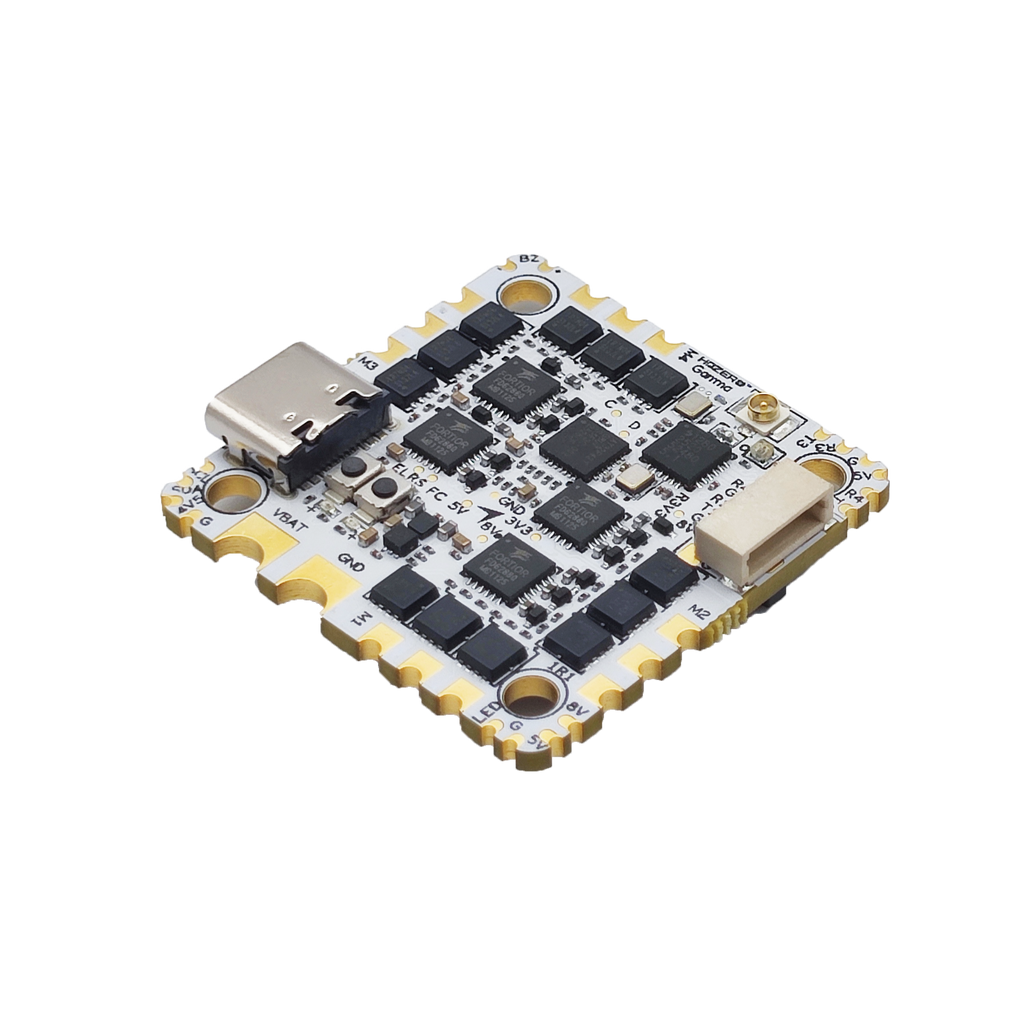

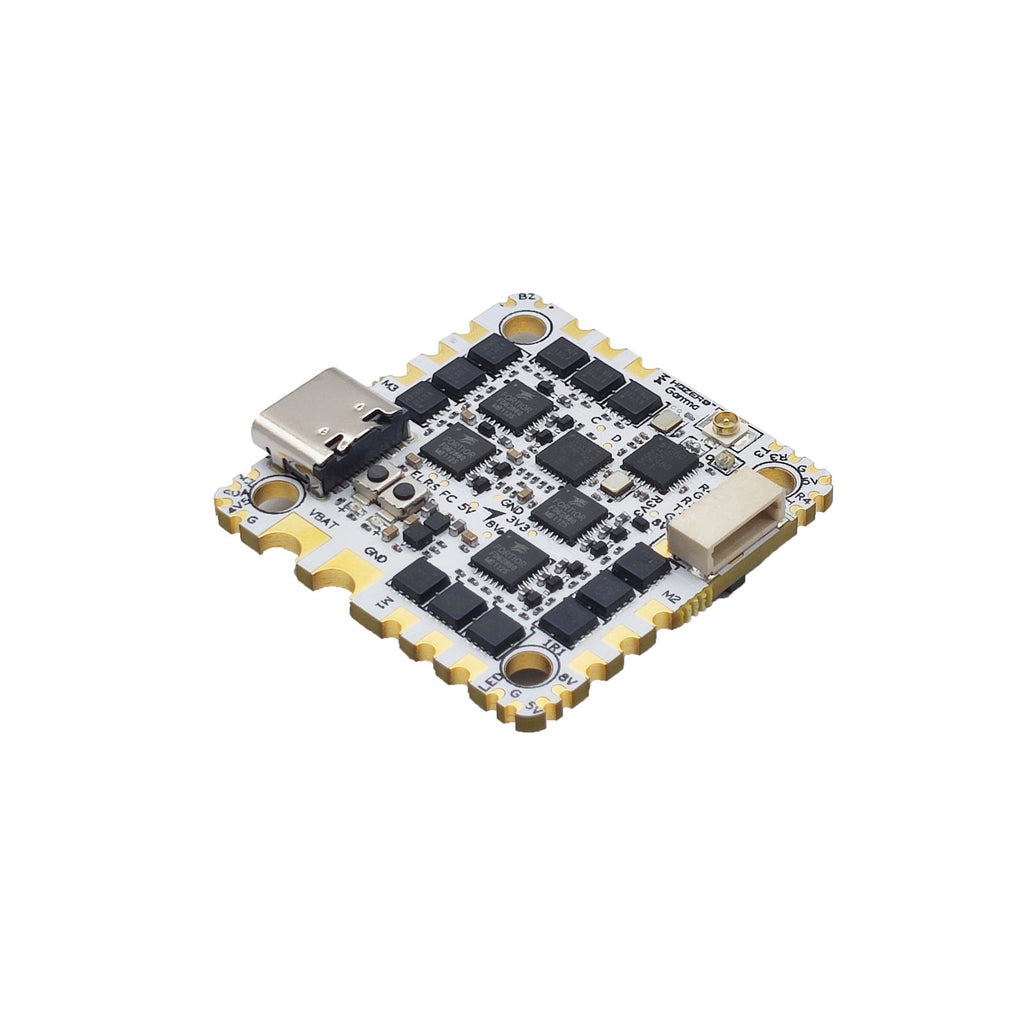

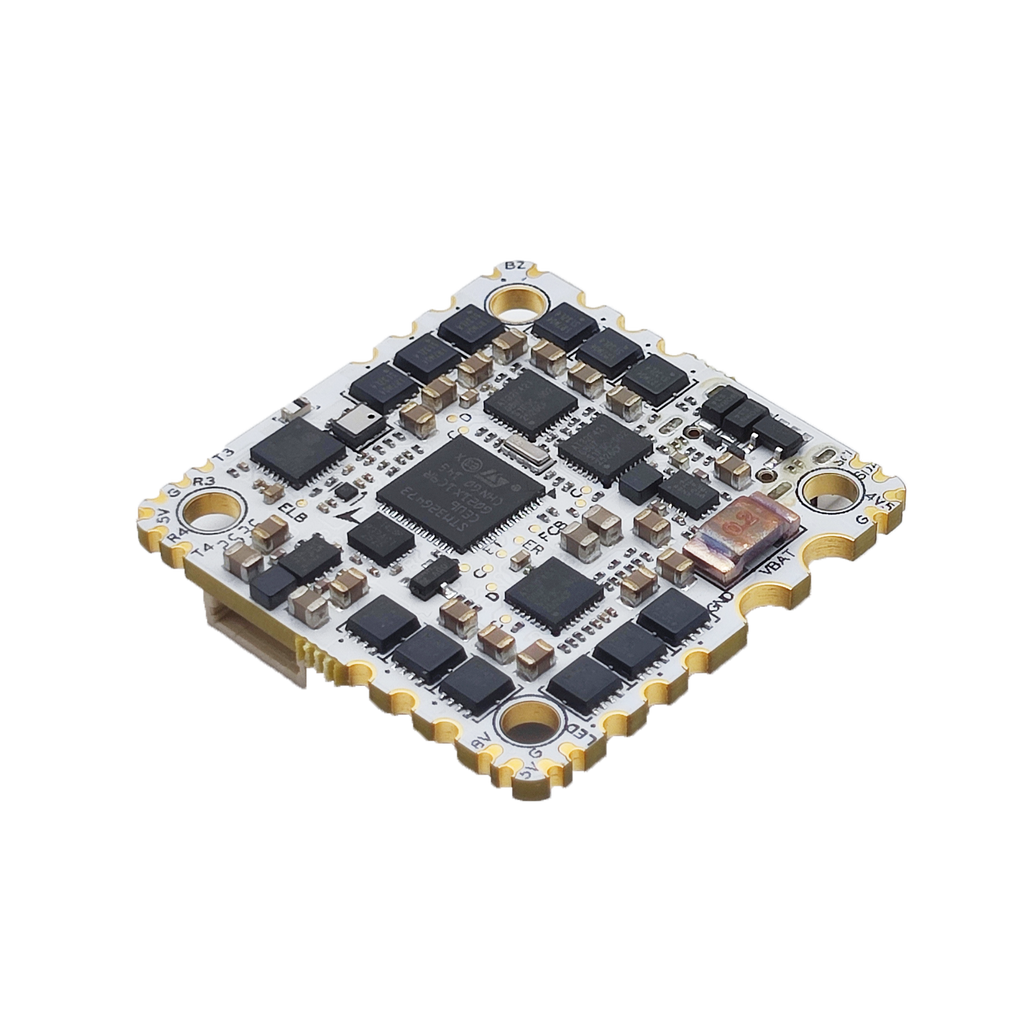

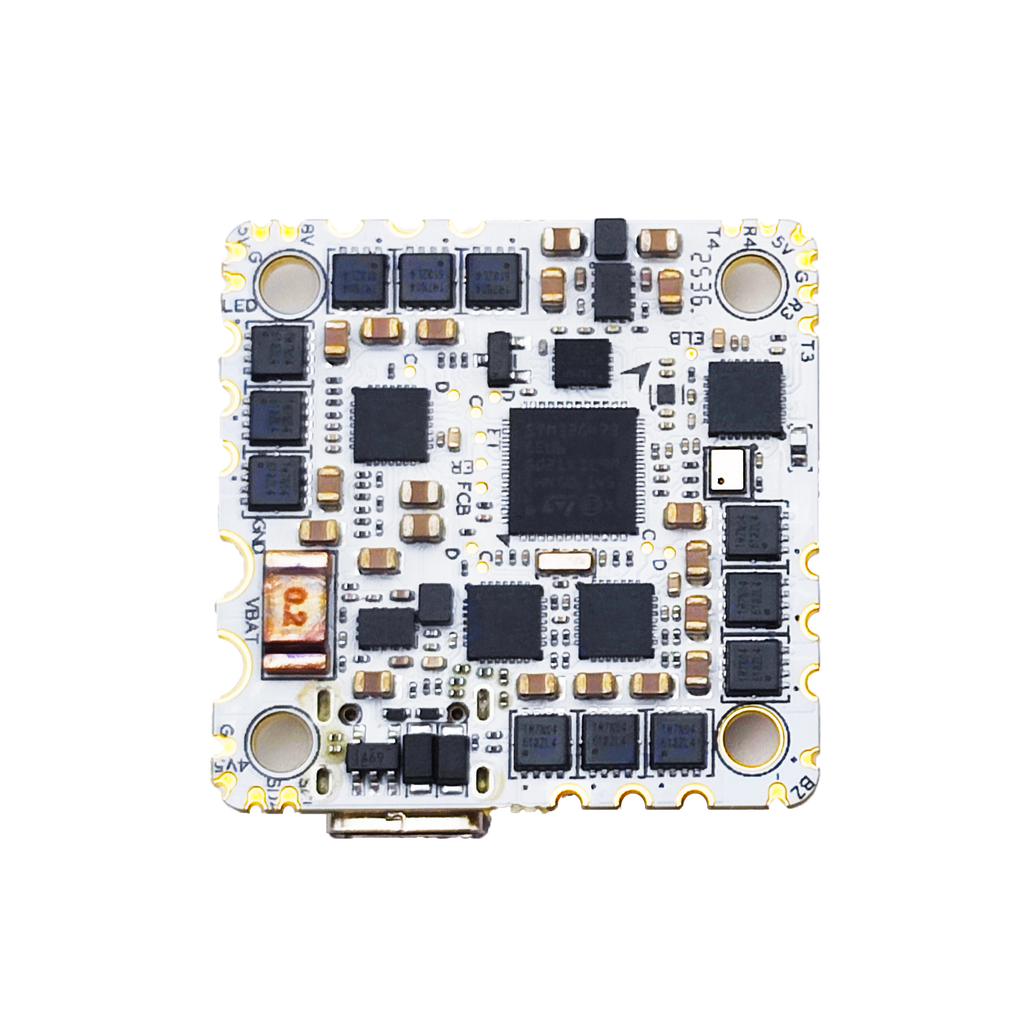

HDZero Gamma 45A HD-Ready AIO

25.5×25.5mm for 2.5–4in Digital FPV Builds (3-6s)

The HDZero Gamma 45A HD-Ready AIO is a compact, digital-first all-in-one flight controller designed for 2.5–4 inch FPV drones using the popular 25.5×25.5mm Whoop / Toothpick mounting pattern.

Built around the STM32G473 MCU, Gamma delivers strong processing headroom for modern Betaflight features while keeping builds clean, simple, and reliable.

Integrated ExpressLRS Receiver

Gamma includes a built-in serial ExpressLRS 2.4GHz receiver, eliminating the need for a separate RX. This reduces wiring, saves space, and removes one of the most frustrating steps in small digital builds.

Designed for Digital Video

Gamma is purpose-built for digital FPV systems. A standard digital VTX plug and a protected 8V / 3A high-power BEC make it easy to run modern digital transmitters, including HDZero, DJI, Walksnail, and OpenIPC. A secondary 5V / 3A BEC is available for LEDs and peripherals.

The analog OSD chip is intentionally removed to save space and optimize the board for digital-only setups, making Gamma an excellent match for compact digital stacks using VTX's like the HDZero Whoop V2 or HDZero Freestyle V2.

High-Performance 32-bit AM32 ESC

The onboard 32-bit 4-in-1 AM32 ESC provides clean, stable power delivery and improved transient response during rapid throttle changes. Each motor output supports 45A continuous with 60A burst capability, helping reduce voltage spikes, brownouts, and component stress. Supports 3-6s batteries for high performance flying.

Builder-Friendly Layout

All motor and I/O pads are castellated and edge-mounted, making soldering easier and improving serviceability in tight frames - you can even mount the AIO upside down and still access all of the IO pads. The layout is optimized for clean wiring and straightforward integration of additional peripherals such as GPS, LEDs, or buzzers.

Watch the product overview video

Key Features

25.5×25.5mm Whoop / Toothpick mounting pattern
Optimized for 2.5–4 inch digital FPV builds
STM32G473 MCU with ICM gyro
Integrated serial ExpressLRS 2.4GHz receiver
45A continuous / 60A burst 32-bit AM32 4-in-1 ESC
8V / 3A protected BEC for digital VTXs
5V / 3A BEC for LEDs and peripherals
Standard digital VTX plug
Castellated edge pads for clean, easy soldering

At-a-Glance Specs

Mounting	25.5×25.5mm (Whoop / Toothpick), 8.4g
Recommended Builds	2.5–4 inch digital FPV
MCU	STM32G473
Receiver	Integrated serial ExpressLRS 2.4GHz
ESC Firmware	AM32 (32-bit 4-in-1)
Motor Output	45A continuous / 60A burst (per output), 3-6s
Digital VTX Power	Protected 8V / 3A BEC
Peripheral Power	5V / 3A BEC
Video Integration	Standard digital VTX plug
OSD	Analog OSD chip removed (digital-optimized)

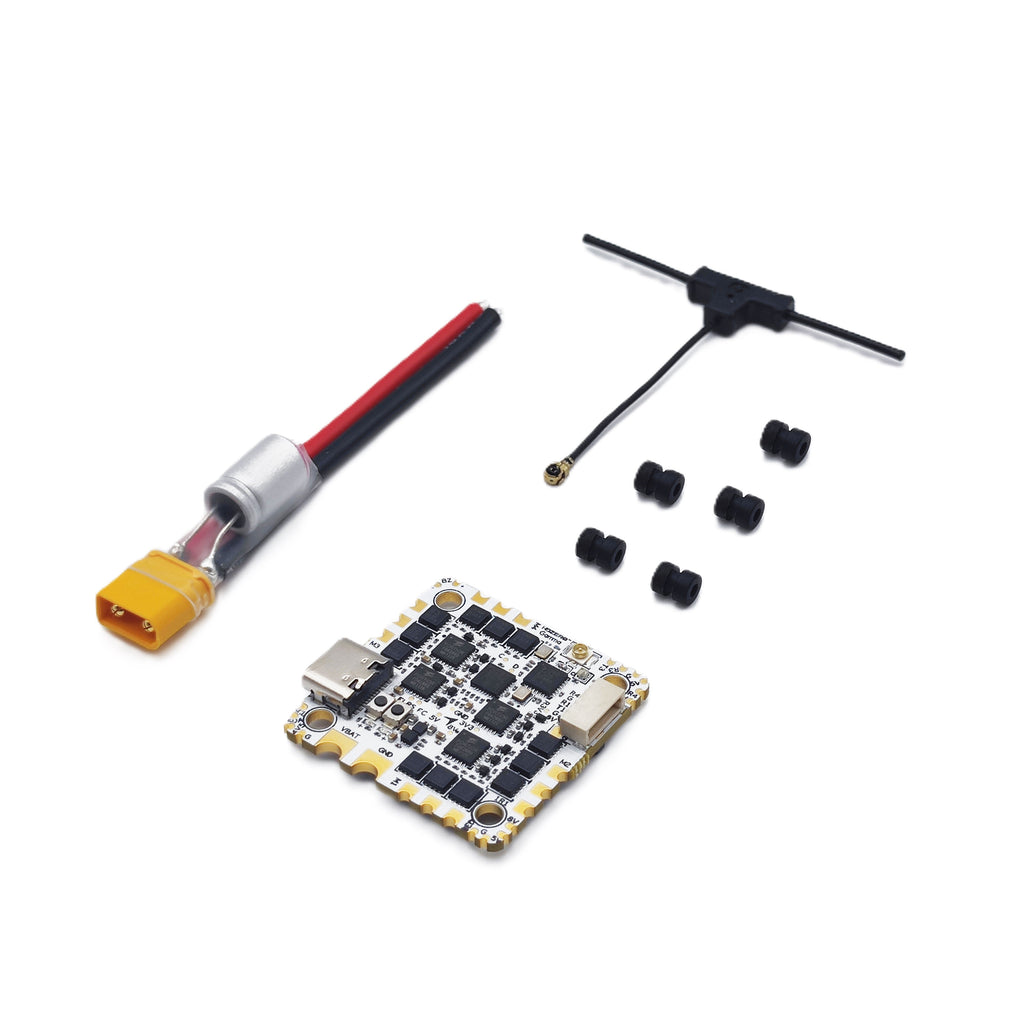

Included in the Box

HDZero Gamma 45A HD-Ready AIO
1x ELRS T-sharp short antenna (40mm)
5x M2 Rubber Grommet(5.6mm)
1x XT30 cable with 330uF/35V capacitor (70mm)

Recommended Use

Ideal for 2.5–4 inch digital FPV drones, including freestyle, racing, training, and drone soccer platforms. Not recommended for heavy 5-inch builds.

Notes

Designed for digital video systems using a standard digital VTX plug and an 8V / 3A regulated rail.
5V rail is intended for peripherals (LEDs, etc.). Use appropriate protection if your wiring could be shorted.
