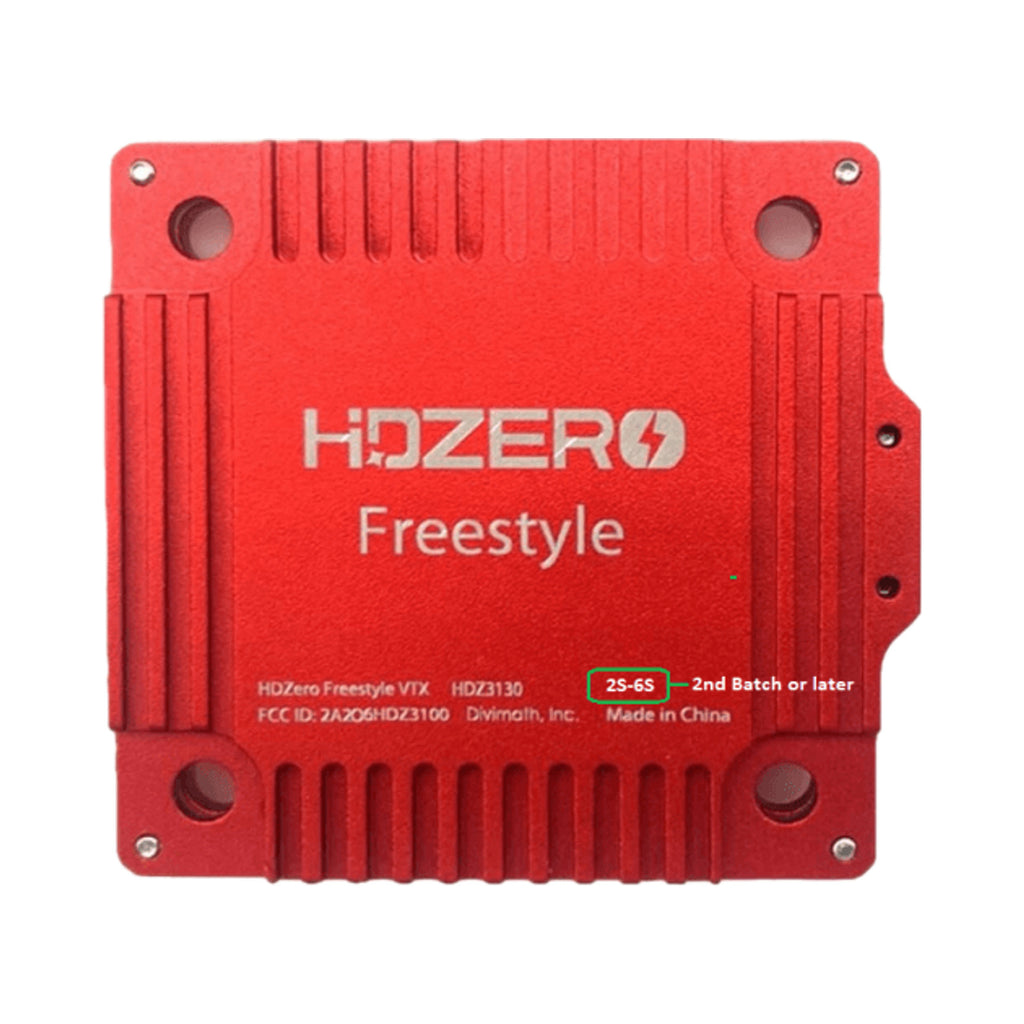

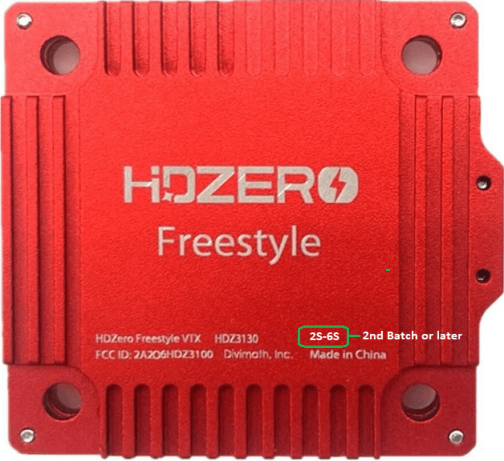

【HDZero】Freestyle VTX
【HDZero】Freestyle VTX
Specifications
|
Model: |
HDZero Freestyle |
|
SKU： |
HDZ3130 |
|
Frequency: |
5.725-5.850GHz |
|
Resolution Default: |
1280*720@60fps |
|
RF power： |
25mw/200mw/500mw/1000mw |
|
RF Connector: |
Secured U.FL |
|
Video Connector: |
Secured MIPI |
|
FC protocol |
MSP Canvas Mode/SmartAudio |
|
Size: |
40mm x 42mm x 10mm |
|
Weight: |
28g |
|
Power: |
6-15W |
|
Power input： |
7V-26V(2S-6S) |
|
Mounting： |
30.5mm x 30.5mm M3 holes |
Includes
HDZero Freestyle VTX * 1;
HDZero RHCP Antenna * 1;
Power/ Uart Cables * 1；
u.FL Antenna Retention Screws * 2/Plate * 1
MIPI Retention Screws * 2/Plate * 1
Important Notes:
- The Freestyle VTX consumes up to 15W. If it is connected with FC, make sure the FC has enough current. For example, the FC has 10V, it needs minimum 1.5A current output.
- Removing the heat sink is not recommended because it is part of the design.
HDZero Range Testing - Putting the HDZero Freestyle VTX to the test---------Wezley Varty
HDZero is (almost) ready to replace analog FPV // 1W FREESTYLE VTX---------Joshua Bardwell
