GOKU GM10 Pro V3 GPS 附指南針｜酷飛 COOLFLY

GOKU GM10 Pro V3 GPS 附指南針

$720.00

推薦搭配配件

⚠️ 下單前務必先確認現貨

商品庫存流動快速，請先聯繫酷飛 LINE 官方帳號，確認商品型號、規格與現貨後再下單。

聯繫酷飛官方 LINE LINE ID：@729jvyax

zingala 銀角零卡分期

想使用銀角零卡分期付款，請前往本商品的銀角頁面選擇方案並完成申請。

前往銀角分期付款

產品介紹

GOKU GM10 Pro V3 GPS 附指南針 是Flywoo 原廠 FPV 商品，對應原廠資料：GOKU GM10 Pro V3 GPS w/compass。下單時請依本店商品選項確認版本、接頭、電壓、尺寸與數量；下方完整保留原廠目前公開的特色、規格、相容資訊、圖文與包裝內容。

本店可選規格

Default Title

原廠完整資料：GOKU GM10 Pro V3 GPS w/compass

GOKU GM10 V3 GPS series is here!
Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster.

Description
Brand: FLYWOO

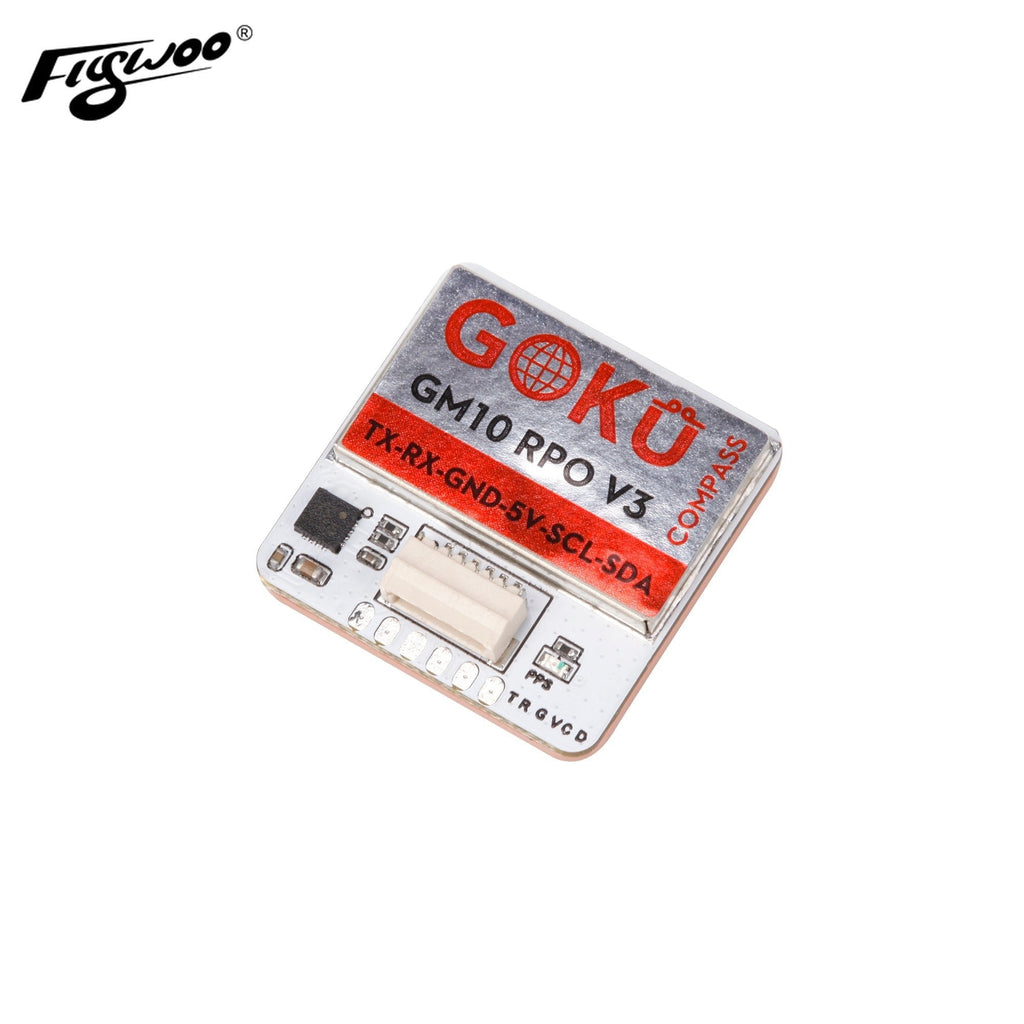

Model: GM10 PRO V3 GPS w/ Compass

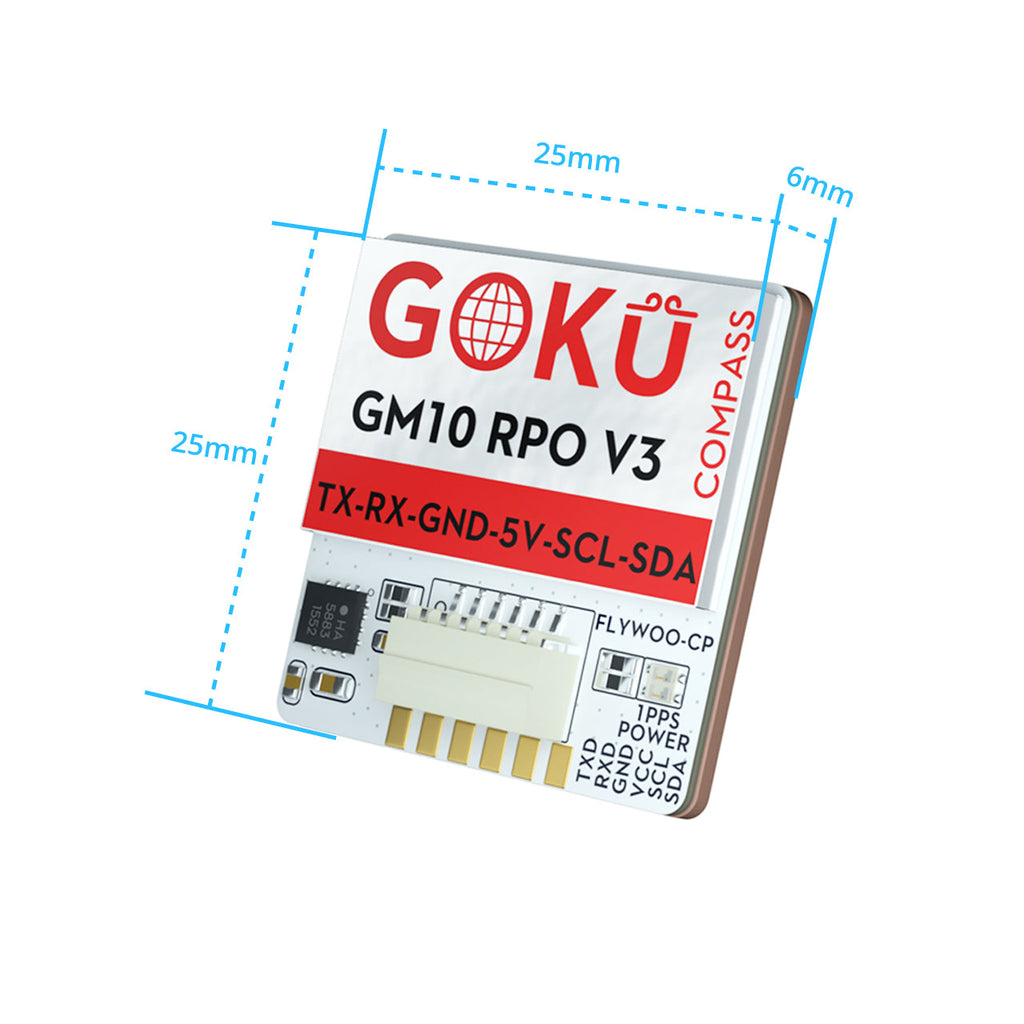

Dimension :　25mm*25mm*6mm

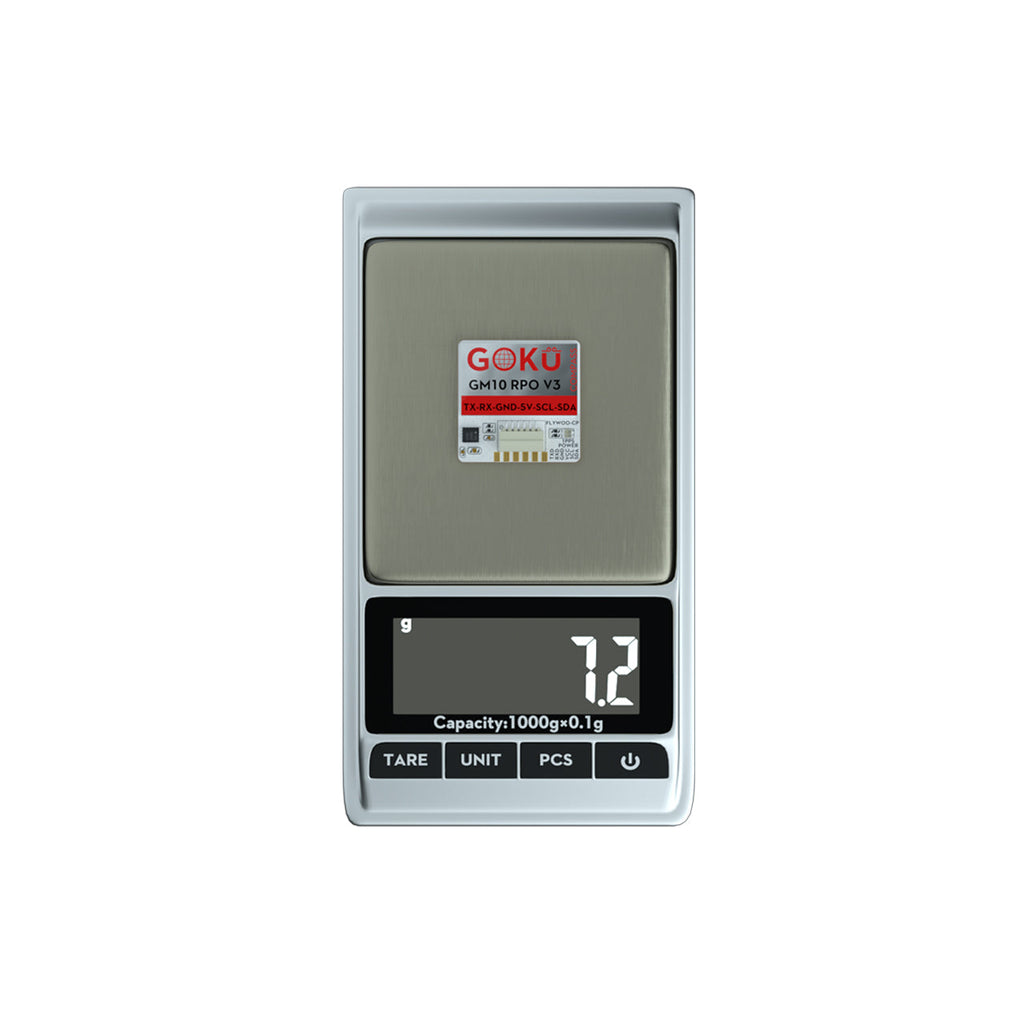

Weight : 7.3g
Connector : 1.00mm spacing between the 6pins patch seat

Features:
GPS Module,Three Module Compass
With electronic compass IC QMC5883L
1.0mm spacing between the 6pins patch seat

Specification
Electrical Characteristics
Chipset : M10050(Tenth Generation Chip)
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol : GPS,Galileo,BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel

Sensitivity
Tracking : -162dBm
Reacquisition : -160dBm

Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 115200bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency : 1Hz-10Hz，Default 10Hz

Operational Limits
Altitude : 50,000m Max
Velocity : 500m/s Max
Acceleration : Less than 4g

Power consumption
VCC : DC Voltage ：5V
Operating temp :　-40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C

Indicator :
PPS LED:yellow .PPS LED not bright when GPS not fixed,flashing when fixed

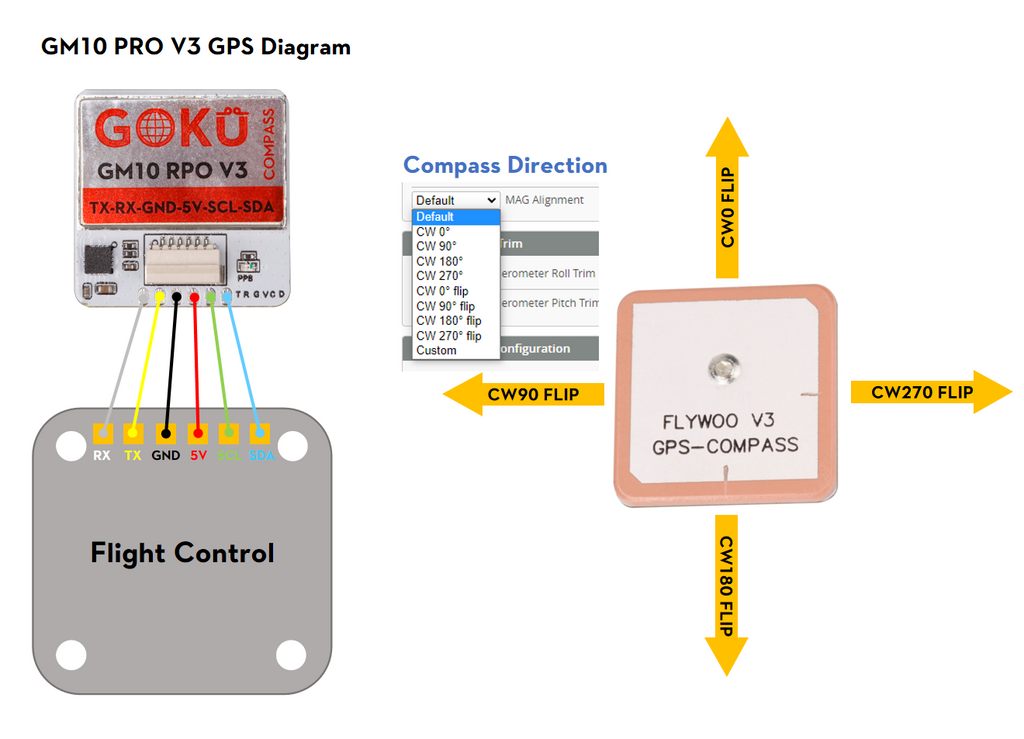

The Module’s Pins: TX RX GND 5V SCL SDA

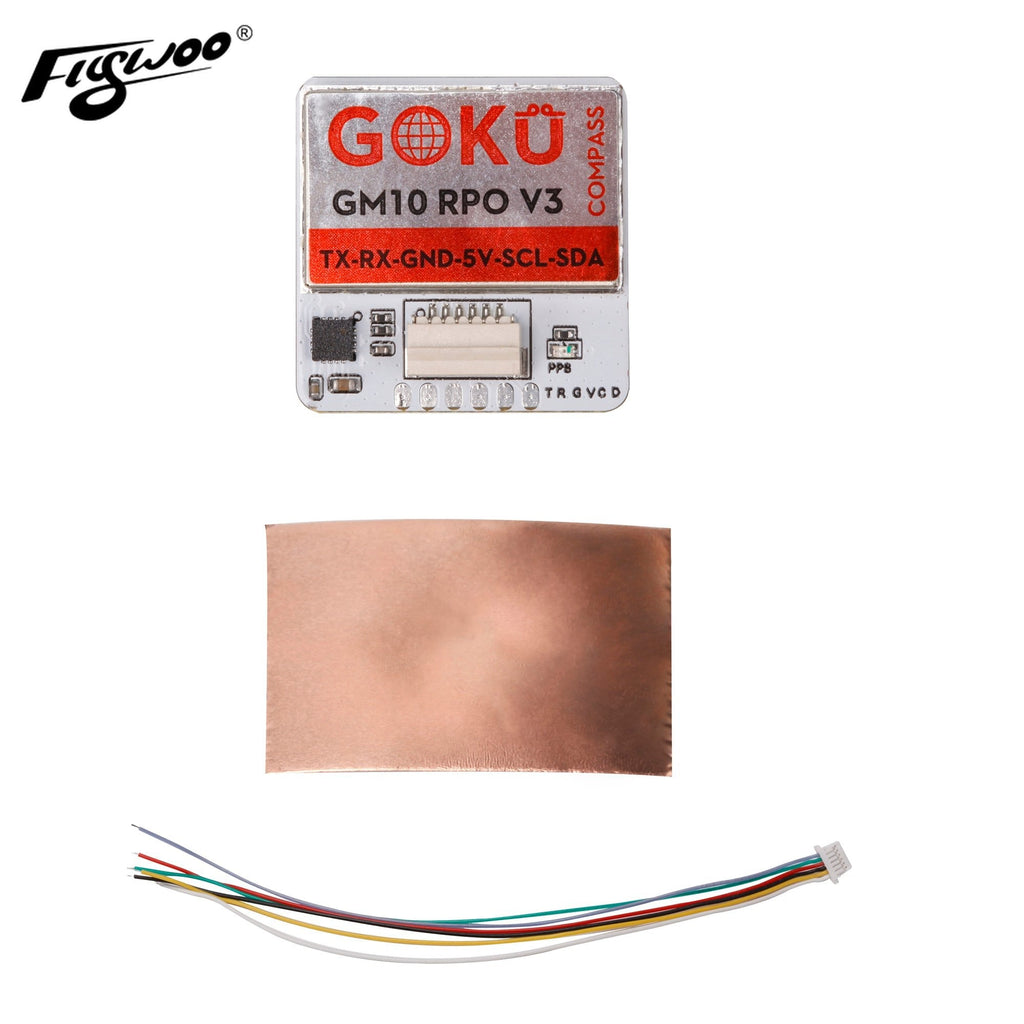

Includes
1x GM10 PRO V3 GPS w/ Compass
1x 150mm Cable
1x Copper Foil
