產品介紹

GOKU F405 HD 1S 12A AIO 即插即用 O4 O4 Pro 是Flywoo 原廠 FPV 電子模組,對應原廠資料:GOKU F405 HD 1S 12A AIO Plug&Play O4 / O4 Pro。下單時請依本店商品選項確認版本、接頭、電壓、尺寸與數量;下方完整保留原廠目前公開的特色、規格、相容資訊、圖文與包裝內容。

本店可選規格

  • Default Title

原廠完整資料:GOKU F405 HD 1S 12A AIO Plug&Play O4 / O4 Pro

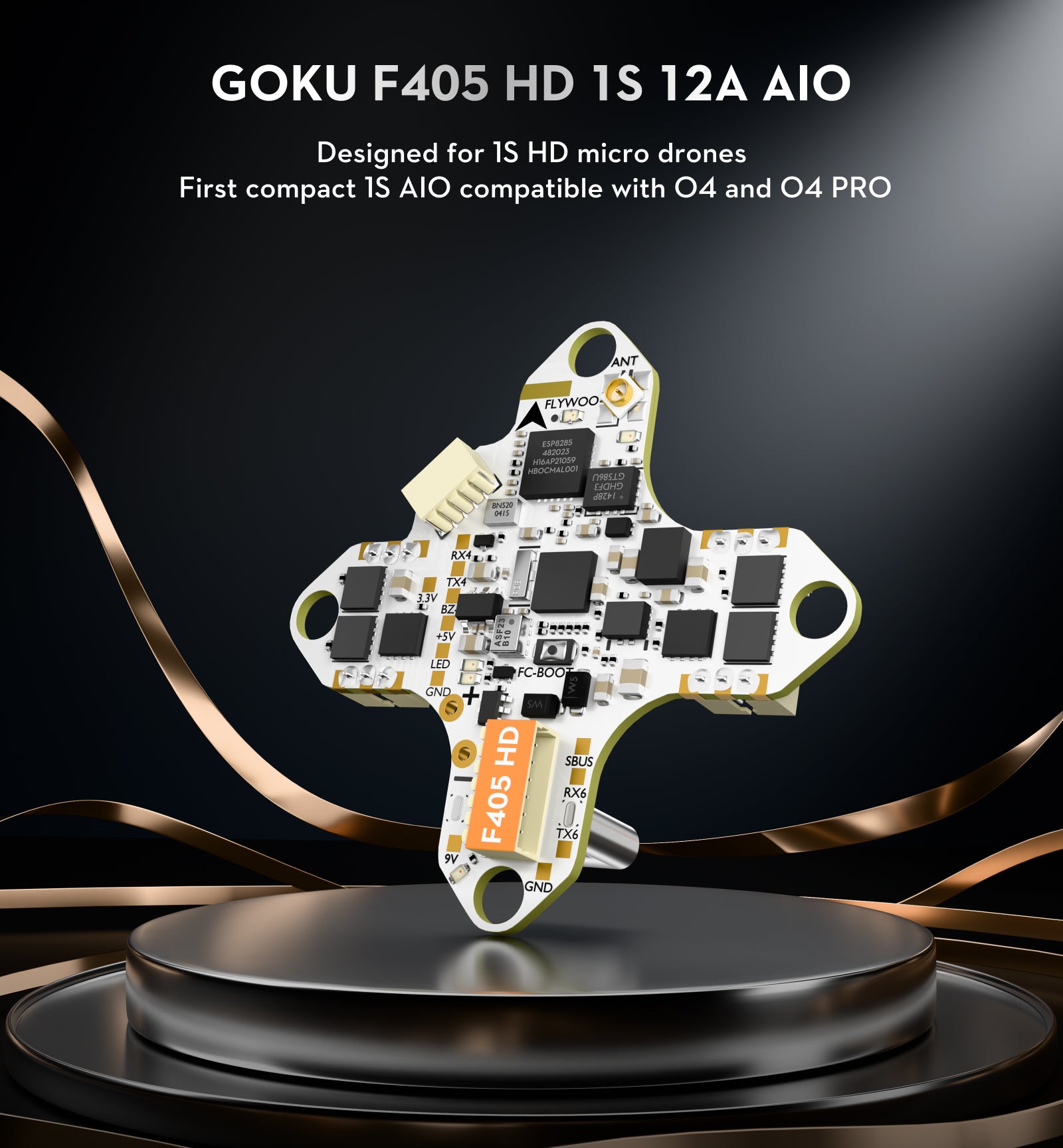

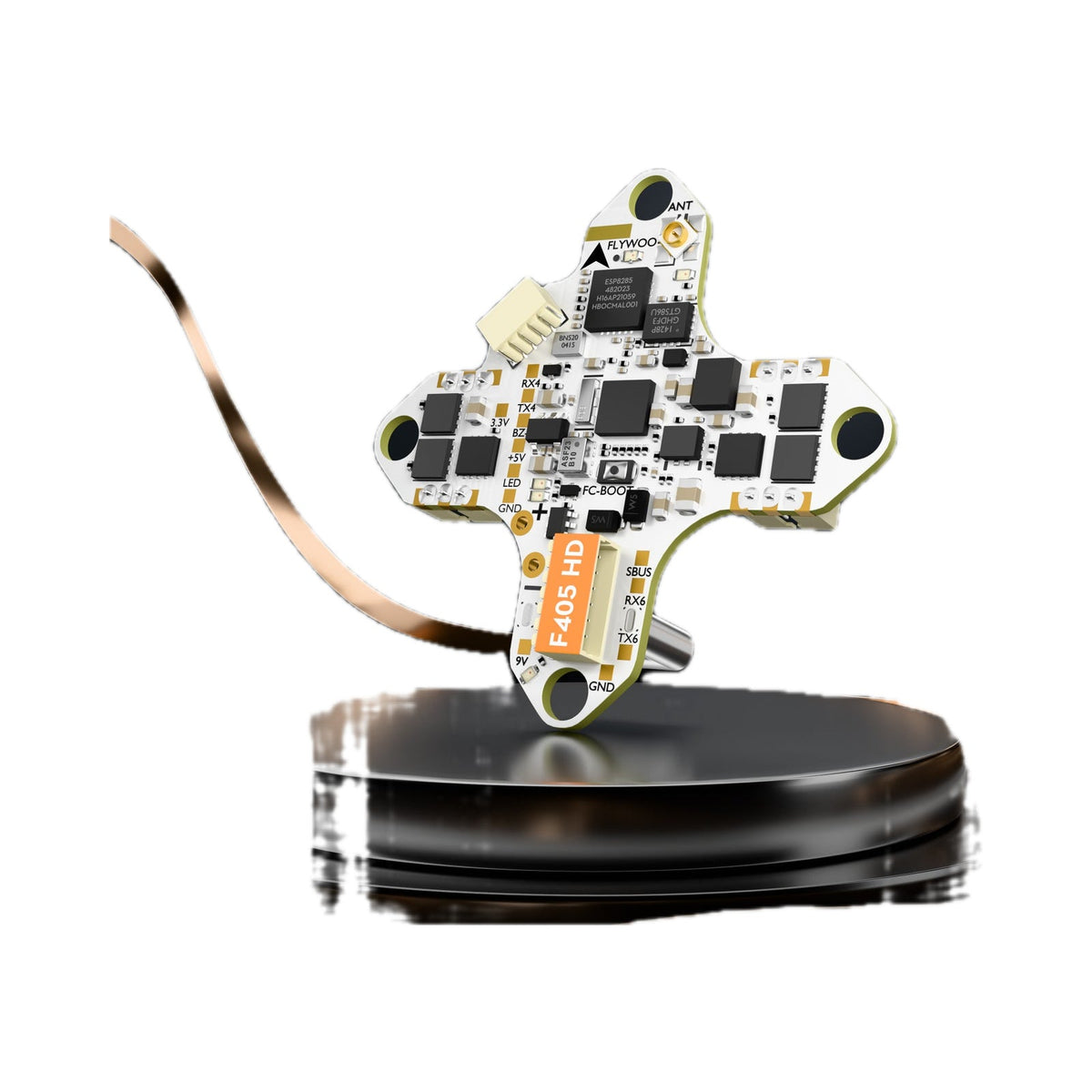

As the industry's first 1S AIO (All-in-One) flight controller specifically optimized for the DJI O4 and O4 Pro high-definition digital systems, the GOKU F405 HD sets a new standard for ultralight FPV performance. Built on a powerful STM32F405 MCU and a gyro option of either BMI270 or ICM42688P, it provides the processing headroom and gyro stability required for cinematic 1S builds.

Unlike standard 5A boards, this AIO integrates a robust 12A continuous (15A peak) ESC and dual high-efficiency BECs (9V/2A and 5V/3A), ensuring your O4 Air Unit receives consistent power even during aggressive maneuvers. Whether you are building a 40mm Tiny Whoop or a 3-inch long-range toothpick, its plug-and-play design and TCXO ELRS 2.4G receiver offer a seamless, interference-free connection for the most demanding pilots.

Highlights:
  • Wide Compatibility: Works with 40mm-3inch propeller frames and 0802-1303 micro motors

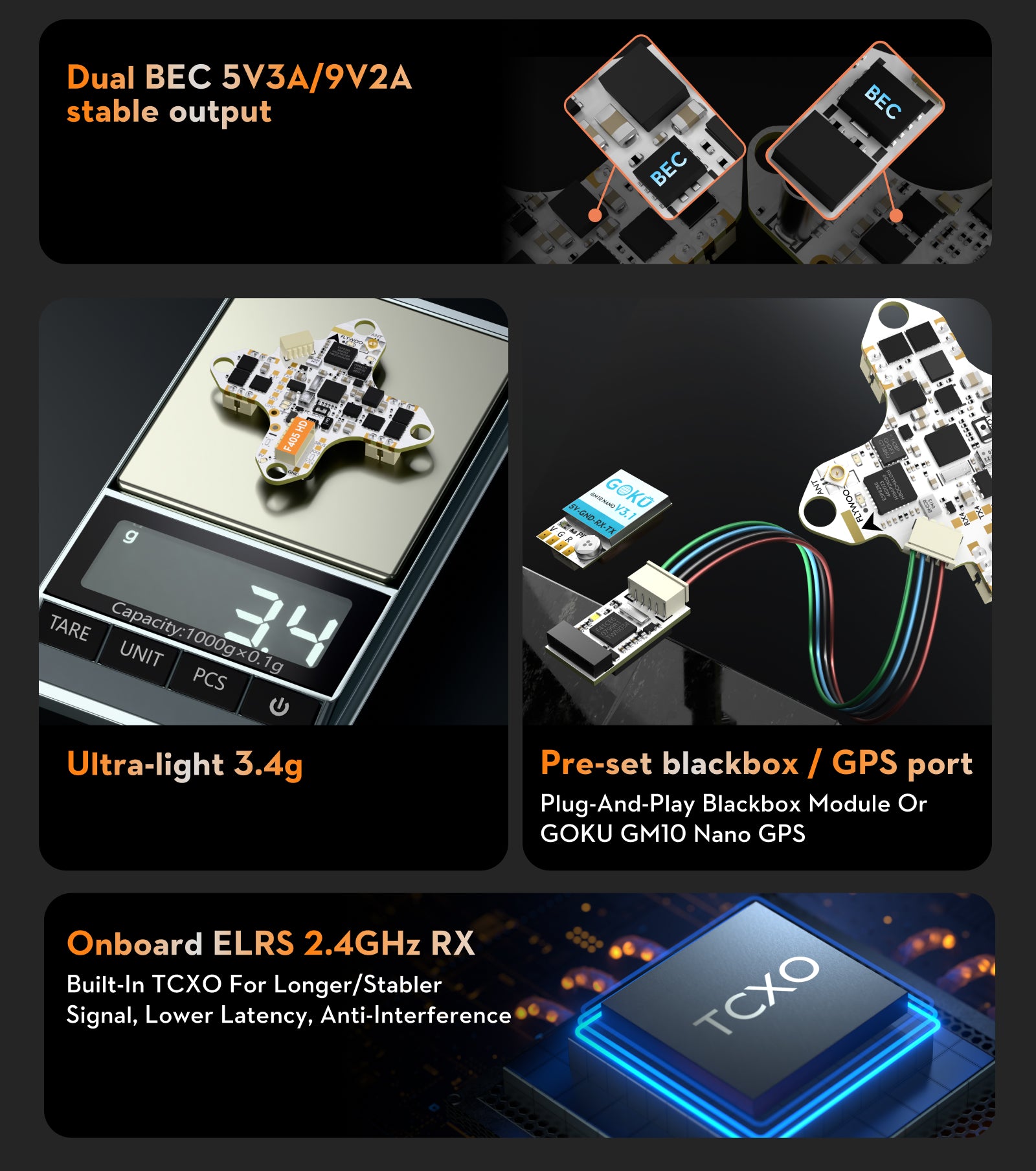

  • Dual BEC : Built-in 9V/5V dual BEC, providing independent and stable voltage
  • Powerful ESCs: 12A high-spec ESCs optimized for 1S systems, delivering smooth power and fast response
  • Serial ELRS: Integrated serial ELRS 2.4GHz receiver (built-in TCXO crystal oscillator)

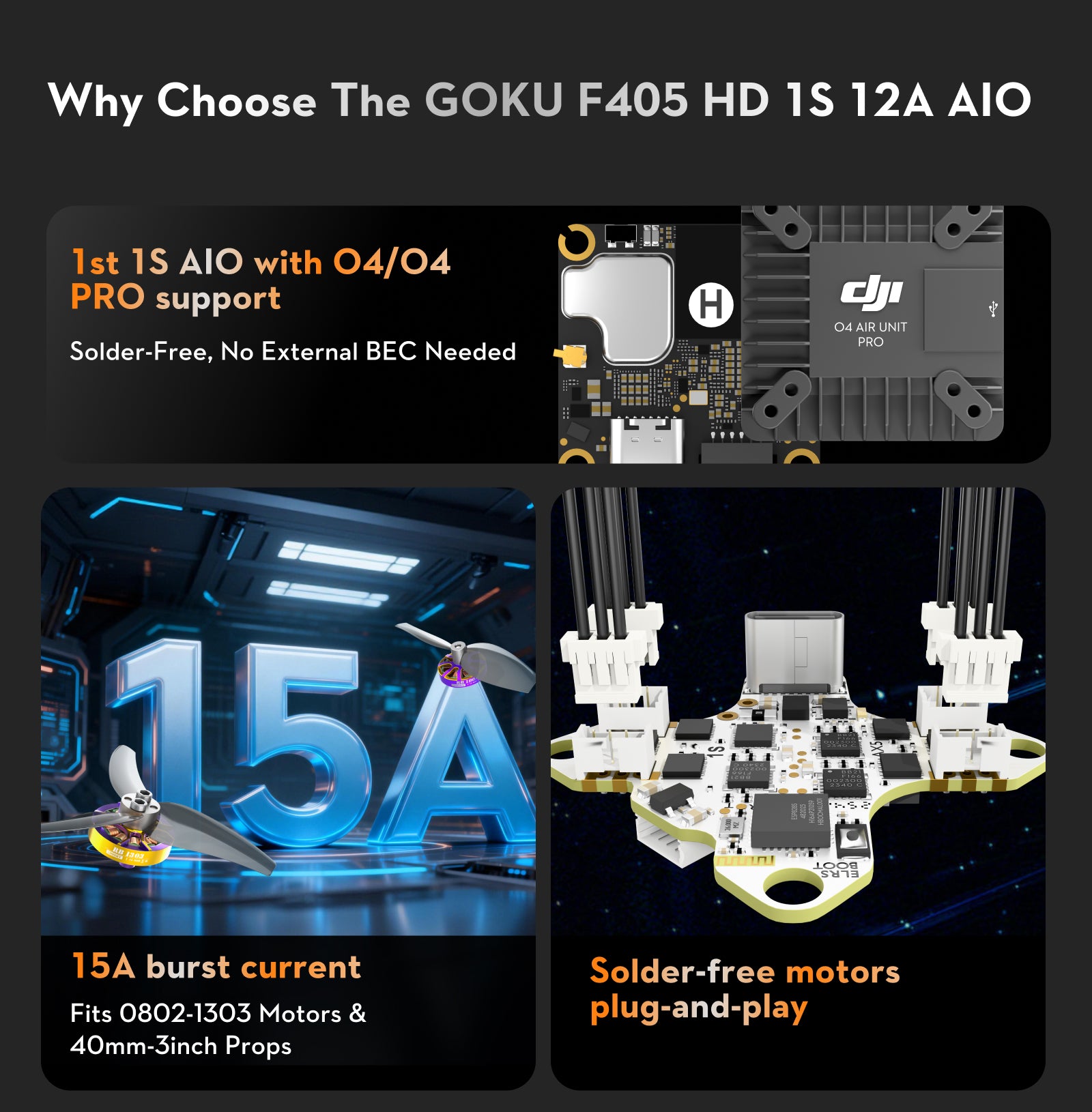

  • Solder-Free Assembly: Solder-free motor socket design simplifies the assembly process
  • Convenient Interface: Equipped with USB-C port

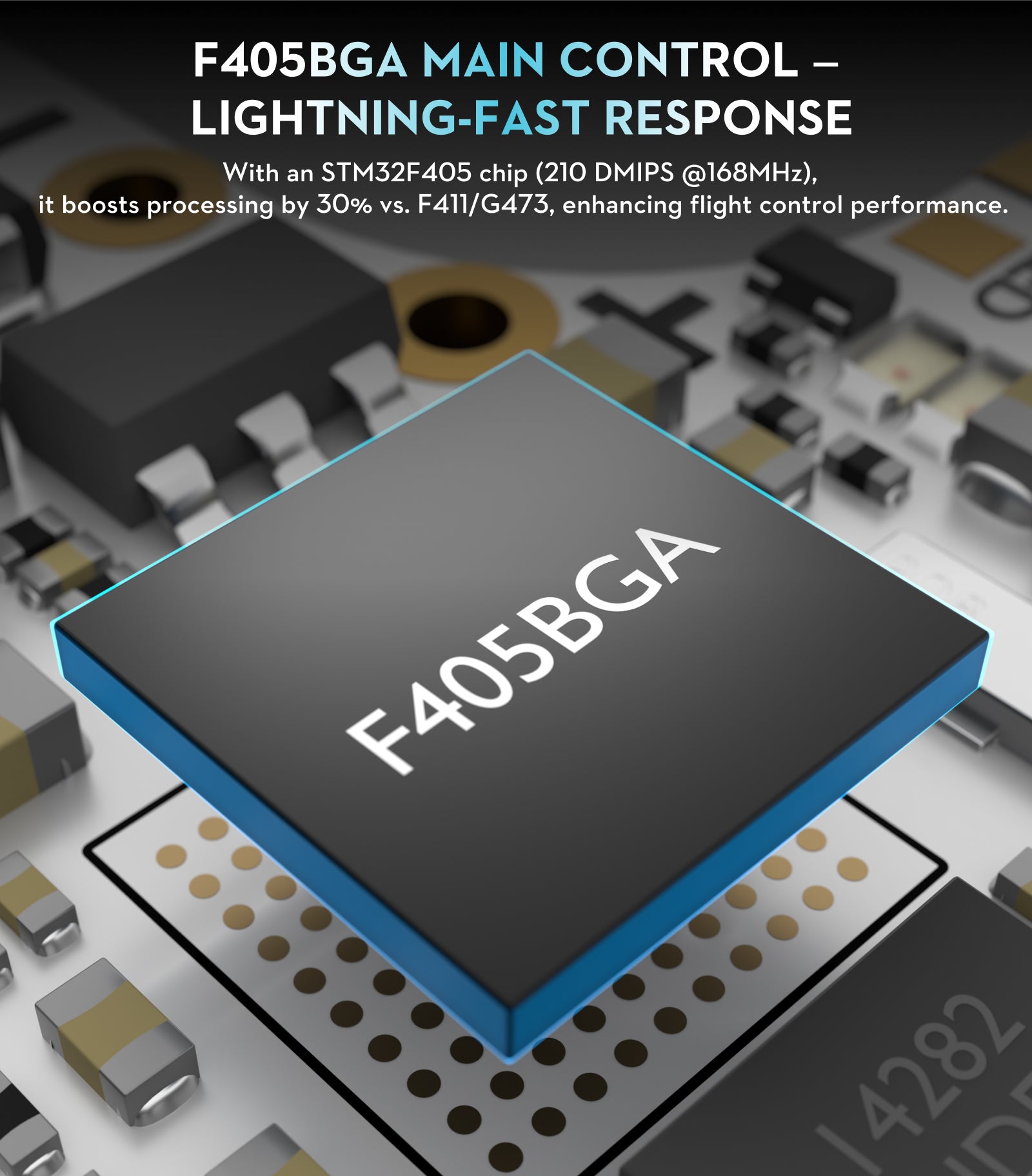

  • Powerful MCU : STM32F405BGA aerospace-grade MCU (up to 68% faster processing vs. traditional F411 and 20% vs. G437)

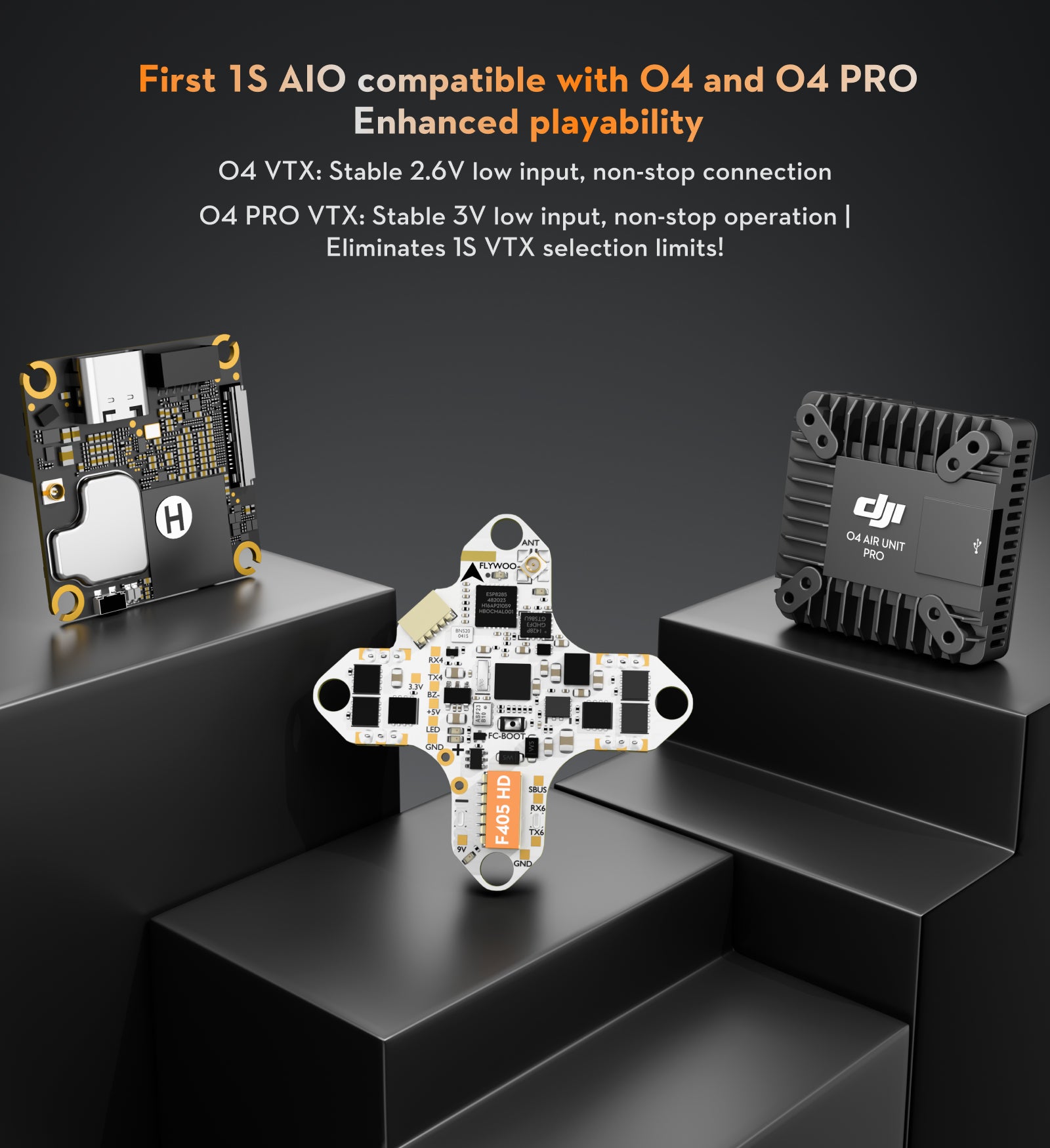

  • Plug and Pay : Supports direct plug-in of O4/O4PRO , no soldering required, stable signal

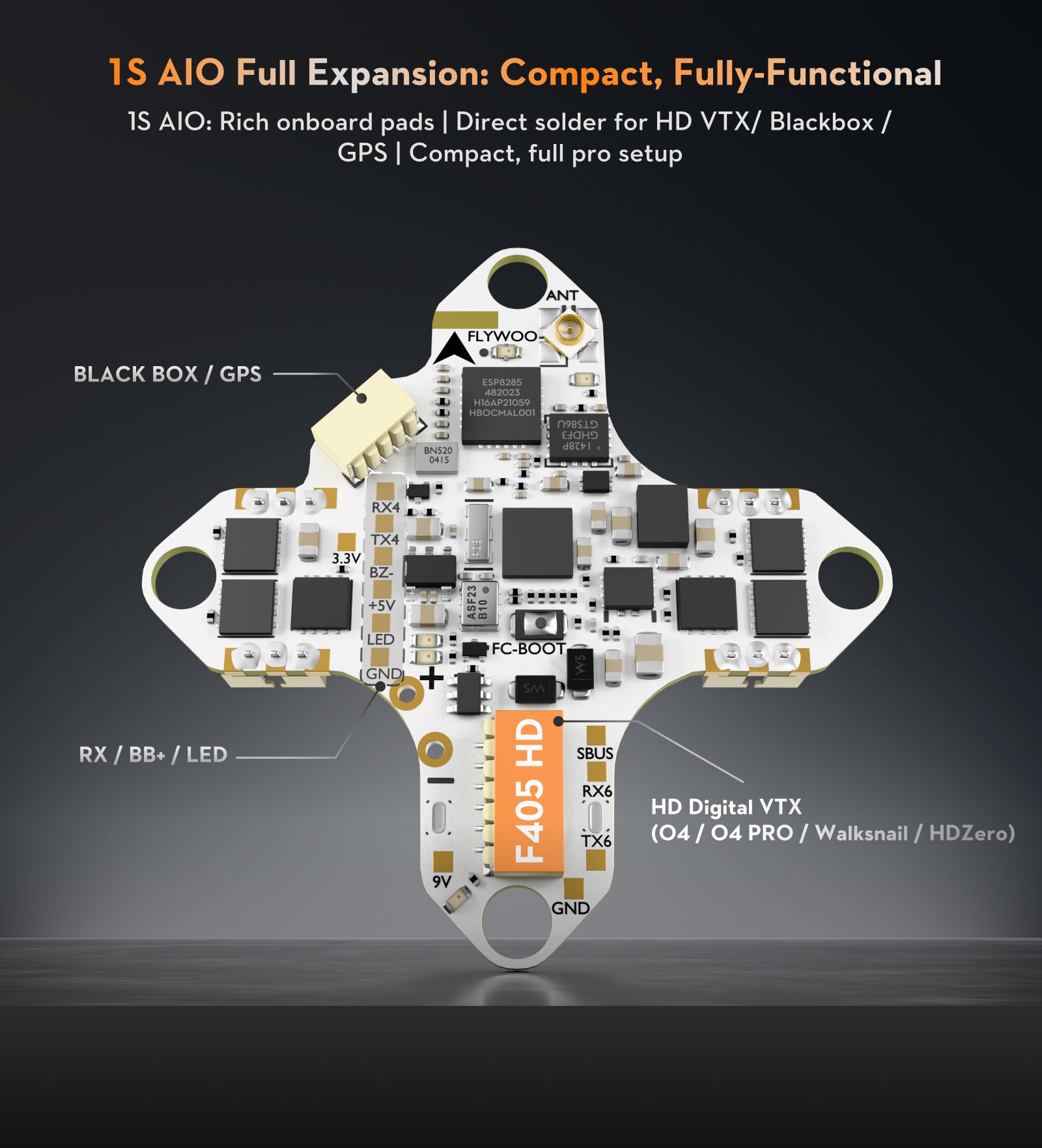

  • External Black Box or GPS: Supports direact plug in of GOKU GM10 Nano V3 GPS   or  Flywoo 0.4g OpenLager Nano module with 512MB capacity

Specifications:

Product Name
GOKU F405 HD 1S 12A AIO
MCU
STM32F405BGA
IMU

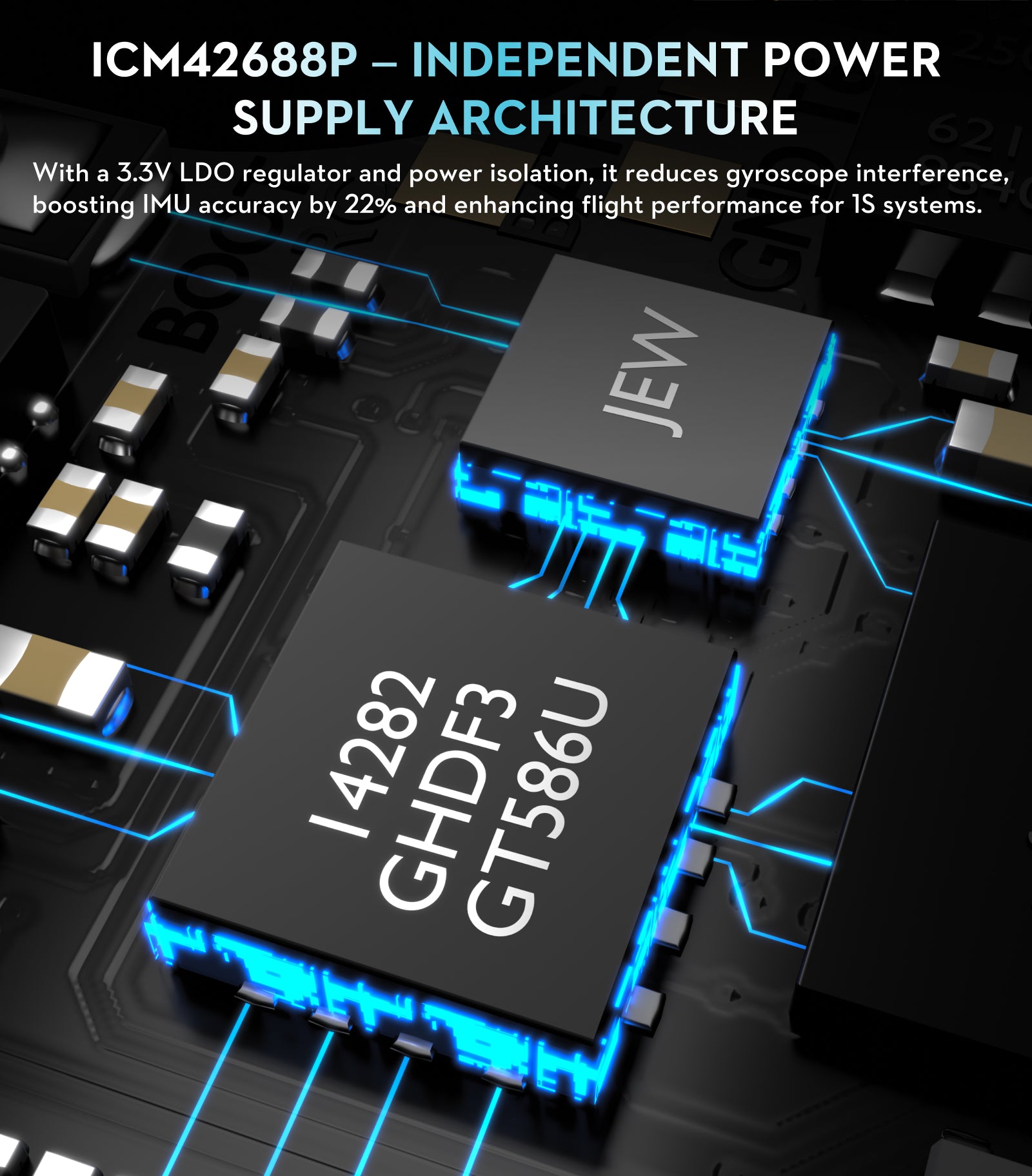

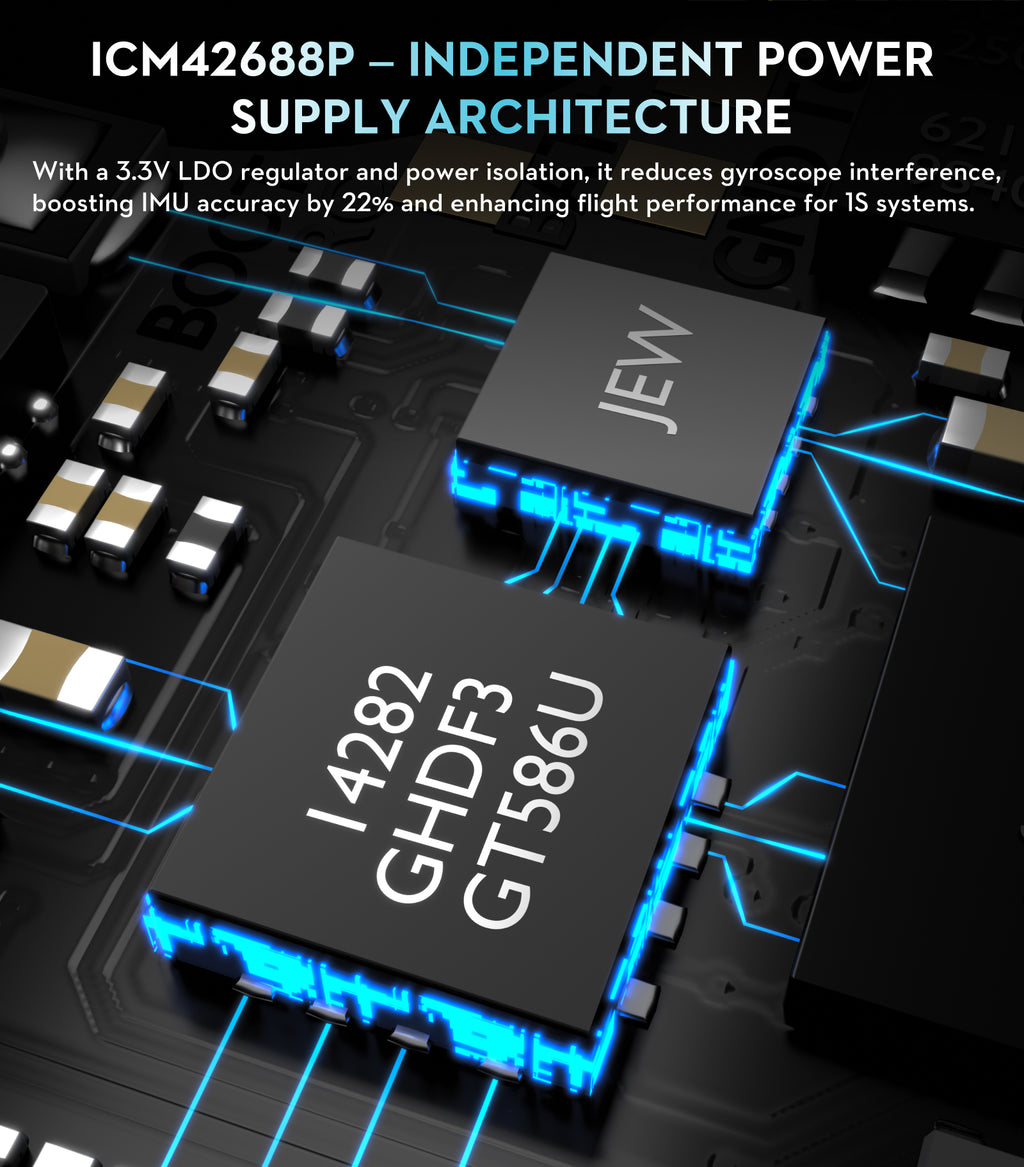

BMI270 or ICM42688P (depending on version)
Barometer
SPL06
Black Box
No (Supports External Black Box )
OSD Support
No
UART
UART2,UART3(For ELRS),UART4,UART5(SBUS),UART6
Protocols
CRSF, SBUS, iBus, Spektrum
BEC
5V3A \ 9V2A MAX
RX
Flywoo TCXO EL24E 2400 RX 3.x.x
BF Firmware
FLYWOOF405S_AIO
INAV Firmware
FLYWOOF405HD
Dimensions
30.5*30.5mm*10mm
Mounting Holes
25.5*25.5mm
重量
3.4g

Product Name
Onboard 4in1 ESC
Power input
1S Only
Current
12A continuous, 15A peak
ESC firmware
A_X_5_48KHz_V0.19.hex Bluejay firmware
Digital signal protocol
DShot300, DShot600
Motor Connector
JST1.25
電池接頭
 A30

Compatibility Category Compatible Hardware / Protocols
Digital VTX Systems DJI O4, O4 Pro, DJI O3 Air Unit, Walksnail Avatar, HDZero
Radio Protocols Integrated TCXO ELRS 2.4G (UART3), SBUS (UART5), CRSF, iBus
Frame Sizes 40mm Whoop, 65mm/75mm Whoop, 2-3 inch Toothpick Frames
Battery Connectors A30 (Standard), compatible with BT2.0 via adapter
Firmware Support Betaflight (FLYWOOF405S_AIO), INAV (FLYWOOF405HD)



In the box :

  • 1x GOKU F405 HD 1S 12A AIO
  • 1x Flywoo ELRS 2.4g Minimortal PCB T Antenna UFL--40mm
  • 5x M2*6.6 Shock-absorbing ball
  • 1x connector cable for flywoo black box / GM10 GPS Nano
  • 1x A30 Power cable
  • 1 x connector cable for O4 \ O4 Pro
  • Flywoo 0.4g Black Box OpenLager Nano module(Option

Flywoo GOKU F405 HD 1S 12A AIO 原廠詳情圖 1

Flywoo GOKU F405 HD 1S 12A AIO 原廠詳情圖 2

Flywoo GOKU F405 HD 1S 12A AIO 原廠詳情圖 3

Flywoo GOKU F405 HD 1S 12A AIO 原廠詳情圖 4

Flywoo GOKU F405 HD 1S 12A AIO 原廠詳情圖 5

Flywoo GOKU F405 HD 1S 12A AIO 原廠詳情圖 6

Flywoo GOKU F405 HD 1S 12A AIO 原廠詳情圖 7

Flywoo GOKU F405 HD 1S 12A AIO 原廠詳情圖 8

Flywoo GOKU F405 HD 1S 12A AIO 原廠詳情圖 9

Flywoo GOKU F405 HD 1S 12A AIO 原廠詳情圖 10

Flywoo GOKU F405 HD 1S 12A AIO 原廠詳情圖 11

常見問題

問:本產品與 DJI O4 Pro 相容嗎?

答:原廠表示本產品專為 DJI O4/O4 Pro 系統設計,並提供 9V/2A BEC 為高清圖傳單元供電。

問:建議搭配哪些馬達?

答:原廠列出 0802 至 1303 無刷馬達,適用約 40mm 至 3 吋機架。實際搭配仍須一併確認螺旋槳、電池與整機配置。

問:ELRS 與 SBUS 使用哪些 UART?

答:原廠資料列 UART3 對應板載 TCXO ELRS 接收機,UART5 對應 SBUS。
