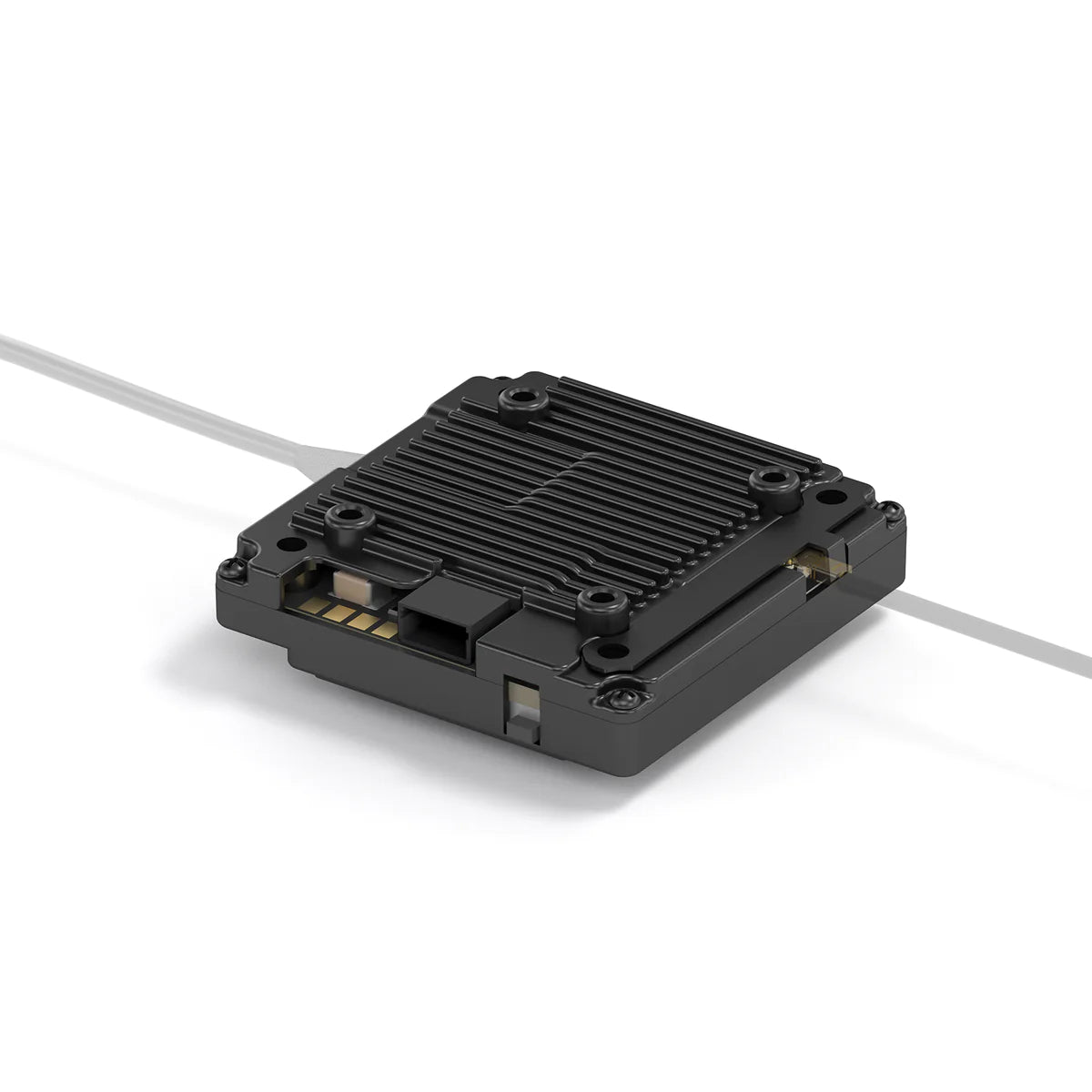

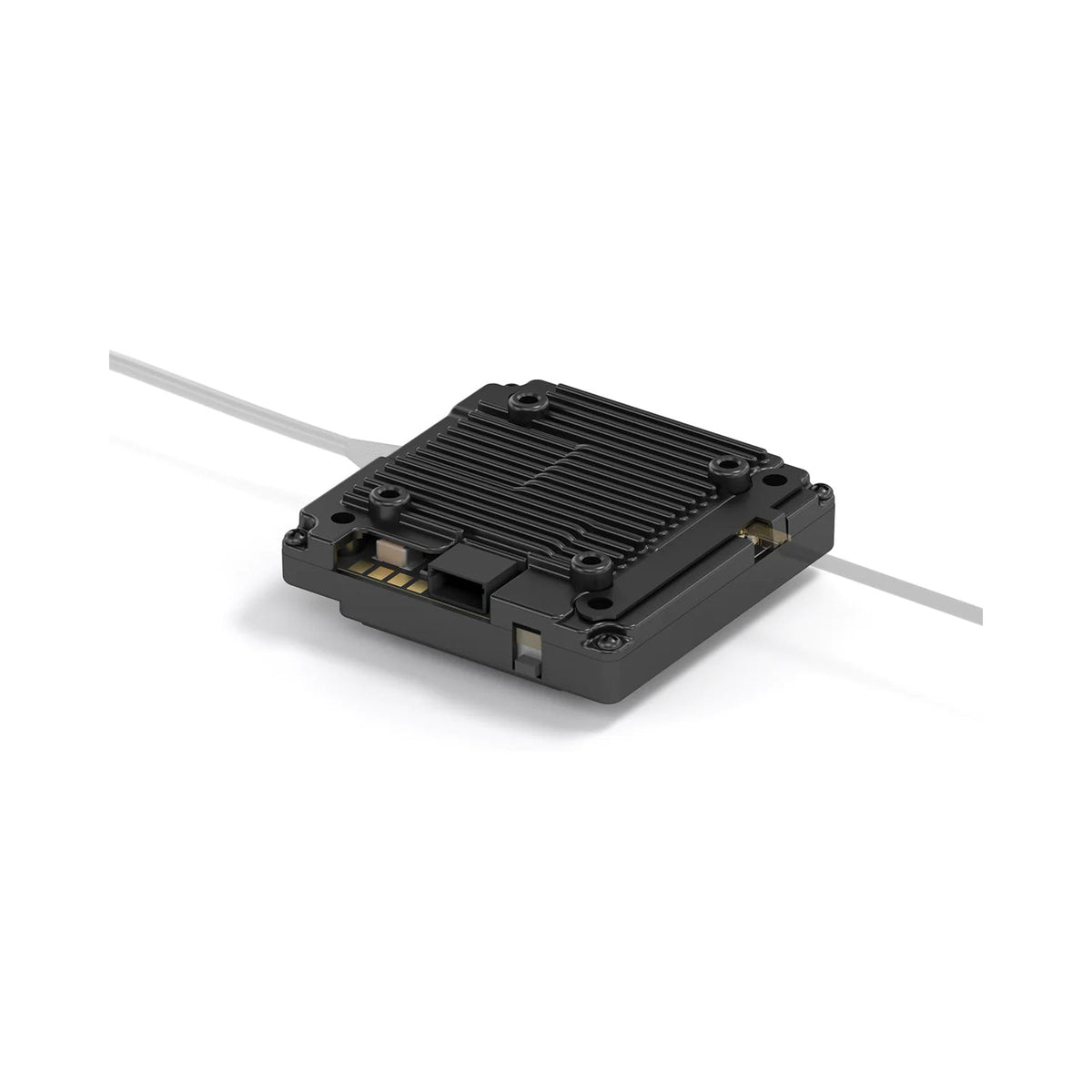

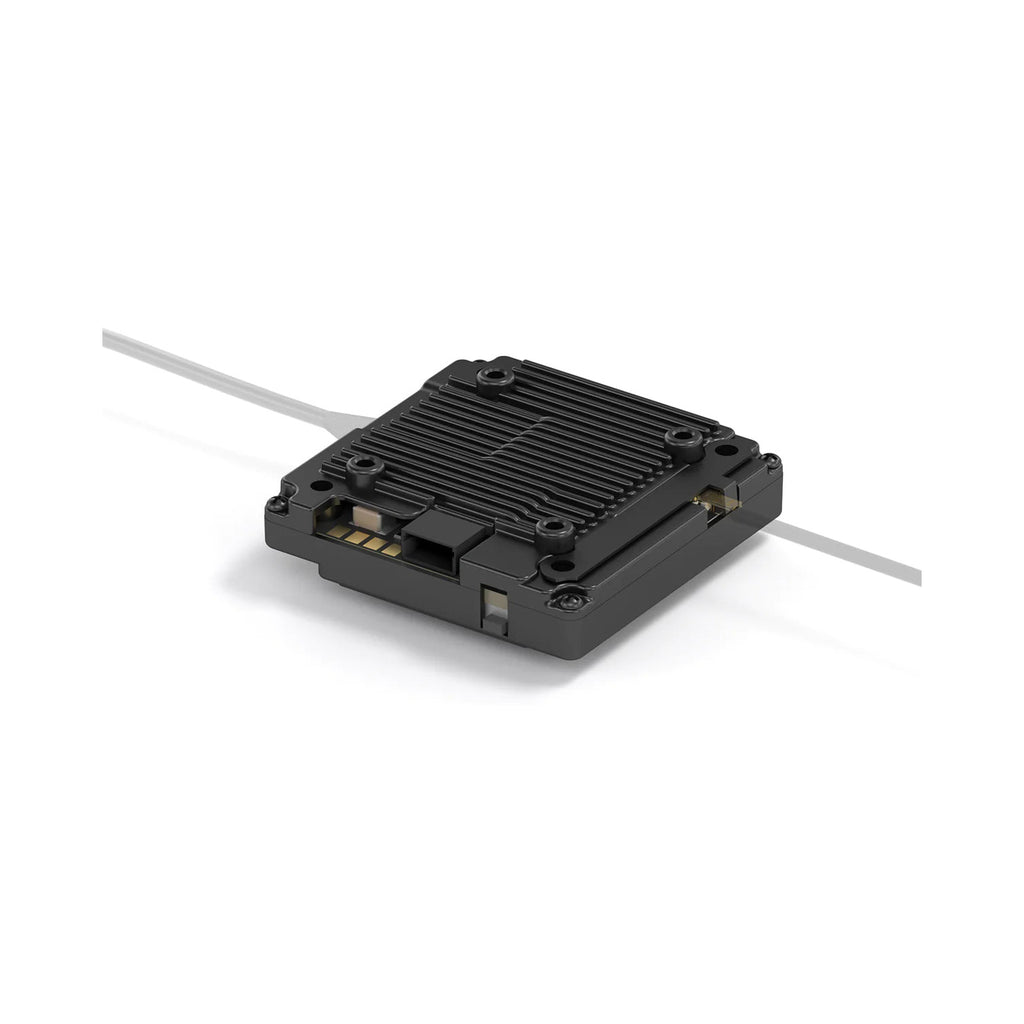

FLYWOO Walksnail Avatar V2 HD VTX Module

$4,430.00

推薦搭配配件

⚠️ 下單前務必先確認現貨

商品庫存流動快速，請先聯繫酷飛 LINE 官方帳號，確認商品型號、規格與現貨後再下單。

想使用銀角零卡分期付款，請前往本商品的銀角頁面選擇方案並完成申請。

這是 Walksnail 的影像傳輸配件，商品名稱、型號與可確認規格如下。為避免把不同年份或不同版本的參數混用，本頁文字僅整理目前商品標題、選項與既有資料中可核對的資訊；詳細尺寸、接線及安裝示意請一併參閱下方原有說明。

本商品依您選擇的規格出貨；若商品名稱、選項或圖片標示數量，出貨內容以該規格為準。商品圖可能同時展示安裝效果或其他搭配零件，未列於所選規格者不包含。若無法確認版本，請在下單前提供實機型號或照片由我們協助核對。

Except the original 25*25mm mounting holes, now added 20*20mm holes for greater compatibility with a wider range of FPV drone models.
Updated the design of PCB board and shell, improved the quality of VTX, more durable.
Optimized the installation place of the antenna, it's better to protect the VTX.
The position of the frequency binding button has been changed, to make the frequency binding operation more convenient.
The kit includes a spare power pad, providing an extra opportunity for welding.

The Avatar VTX comes with 8g/32g built-in storage it can record 1080P or 720P HD fly videos without interference. 32G built-in storage, recording video time increased by 4 times.

New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

Specification
VTX
Model	Avatar V2 module
Communication Frequency	5.725-5.850GHz
Transmitter Power (EIRP)	FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm
1/O Interface	JST1.04(Power in)JST0.86(USB)
Mounting Holes	25.525.5mm；2020mm
Dimensions	333310.5mm
Storage	8G/ 32G
Recording	1080P/720P
Weight	17.6g
Operating Temperature	-20-40℃
Channels	8
Wide Power Input	6V-25.2V
Supported FC System	Betaflight; Inav; Fettec; ArduPilot;Kiss;
OSD	Canvas mode
Latency	Average delay 22ms
Antenna	1(IPEX)
