HDZero Whoop Lite w / Runcam Nano V3 Cam MIPI 40mm
$3,530.00
跳到商品資訊
HDZero Whoop Lite w / Runcam Nano V3 Cam MIPI 40mm
$3,530.00

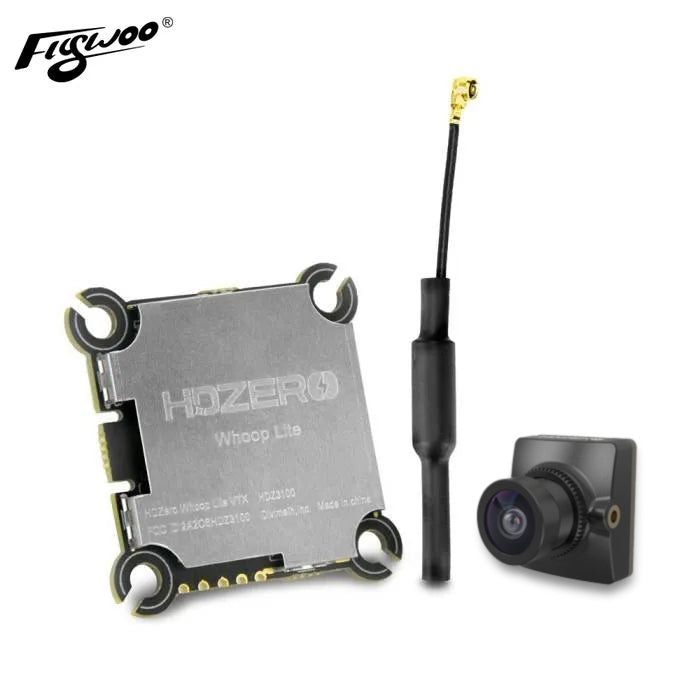

This set is composed of HDZero Whoop Lite VTX and Runcam Nano V3 HD Cam. It uses a frame with a 14mm lens hole position. The coaxial cable for the camera suction uses a length of 40, which is very practical for micro drones.
Specifications

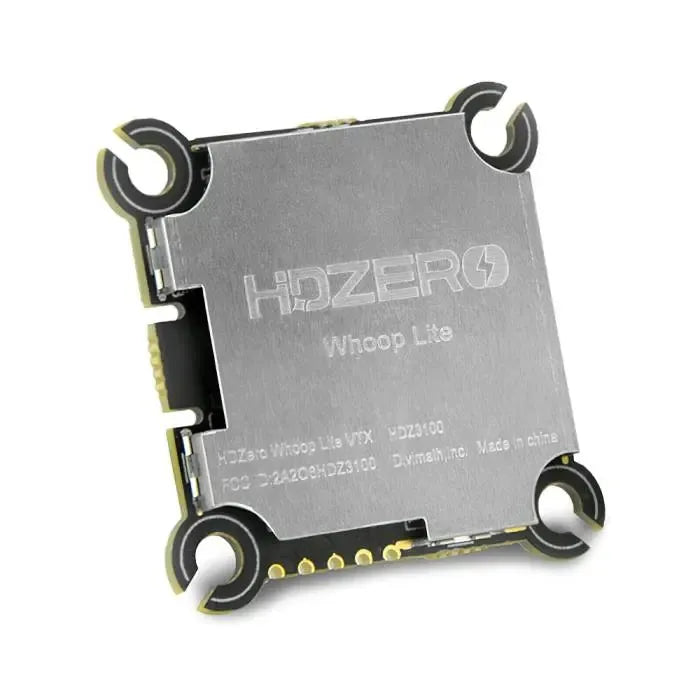

HDZERO WHOOP LITE VTX
- Mounting Pattern: 25.5x25.2 M2 (soft mounting)
- Dimensions: 32.4x32.5mm (29x29mm inner)
- Video Connector: 20 Position 0.30mm Pitch
- Resolution Default: 1280*720@60fps
- Interface: 4-lane MIPI CSI YUV422
- RF Power: 25mw/200mw
- Smart Audio: Supported
- Power: 1000mA@5V
- Power input: 1S-3S
- RF Connector: U.FL
- Frequency: 5.8G
- Thickness: 4mm
- SKU: HDZ3100
- Weight: 4.5g

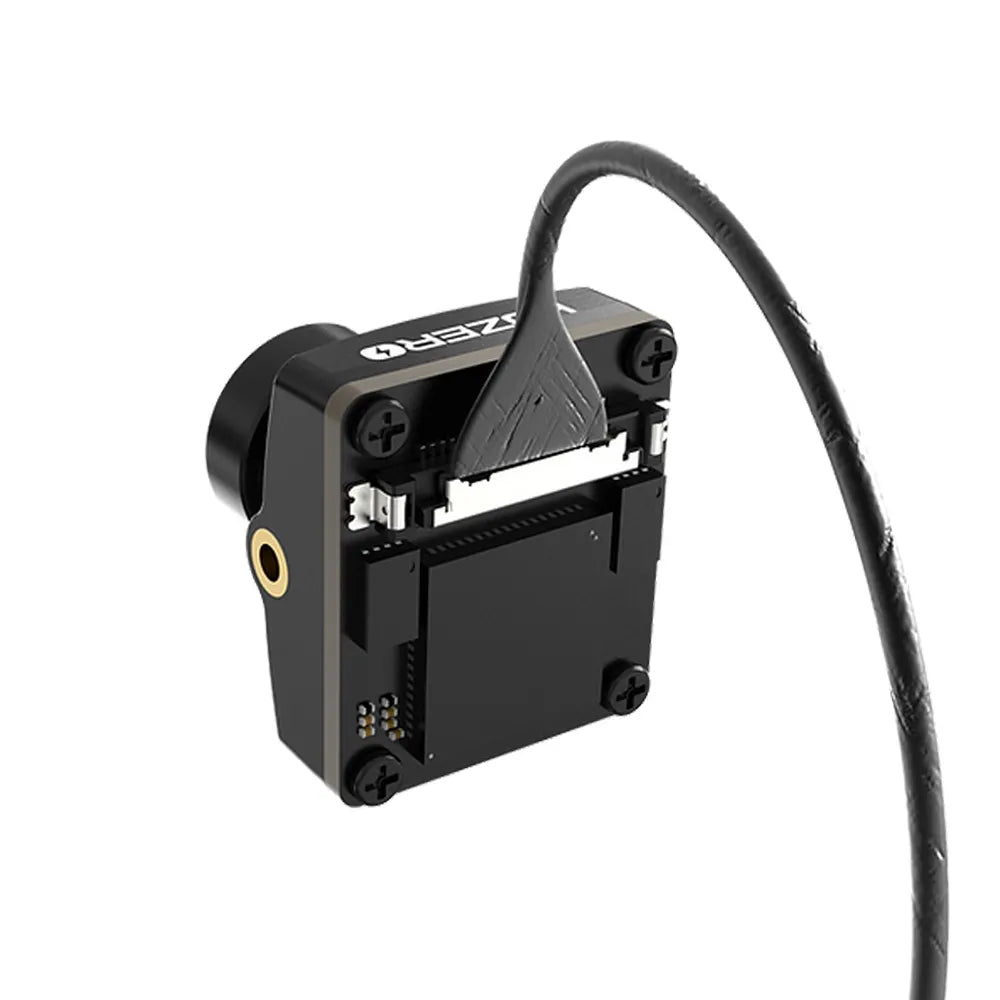

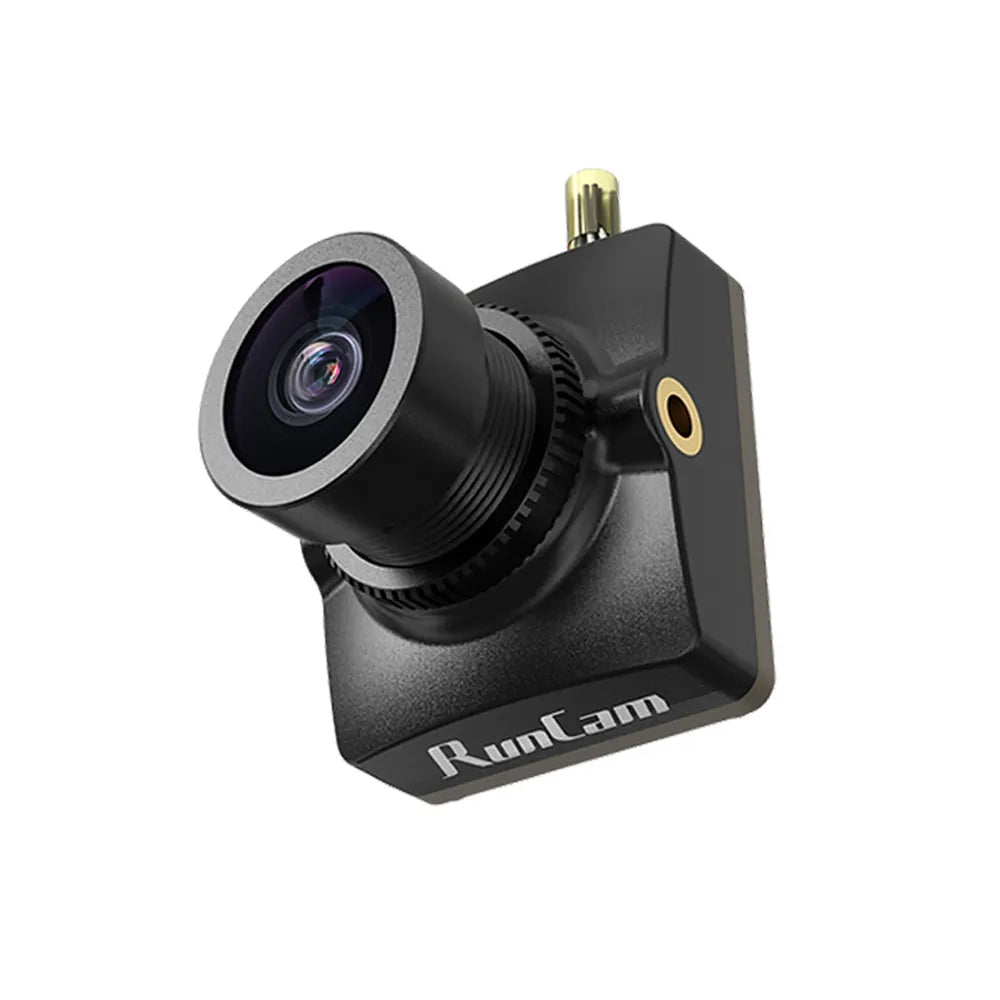

HDZERO NANO LITE CAMERA
- Model: Nano V3 HDZero
- Sensor Size: 1/2 inch
- Resolution: 720@60fps 4:3
- Sensitivity: 10650mV/Lux-sec
- Shutter: Rolling Shutter
- FOV: FOV D:155° H:126° V:94°
- Input Power: 3.3V
- Power Consumption: 0.5W
- Weight: 2.2 g
- Dimensions: L14mm*W16mm*H14mm
Includes
- 1x HDZero Nano V3 Camera
- 1x HDZero Whoop Lite VTX
- 1x Connecting Wire Set
- 1x Dipole Antenna
- 1x Hardware Set

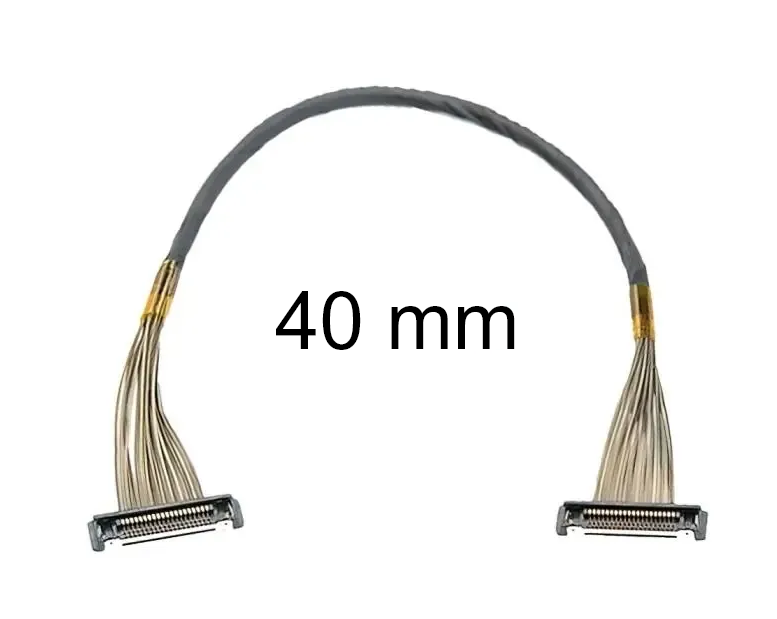

- 1x MIPI Cable
- 4x Dampers
- 2x Zip Ties
