【Flywoo】GOKU Versatile F411 1S 5A AIO 飛控｜內建 250mW 圖傳 是Flywoo 原廠 FPV 電子模組，對應原廠資料：GOKU Versatile F411 VTX 1S 5A AIO V2.0 w/ 250mw vtx , 25.5X25.5。下單時請依本店商品選項確認版本、接頭、電壓、尺寸與數量；下方完整保留原廠目前公開的特色、規格、相容資訊、圖文與包裝內容。
本店可選規格
- Default
原廠完整資料：GOKU Versatile F411 VTX 1S 5A AIO V2.0 w/ 250mw vtx , 25.5X25.5

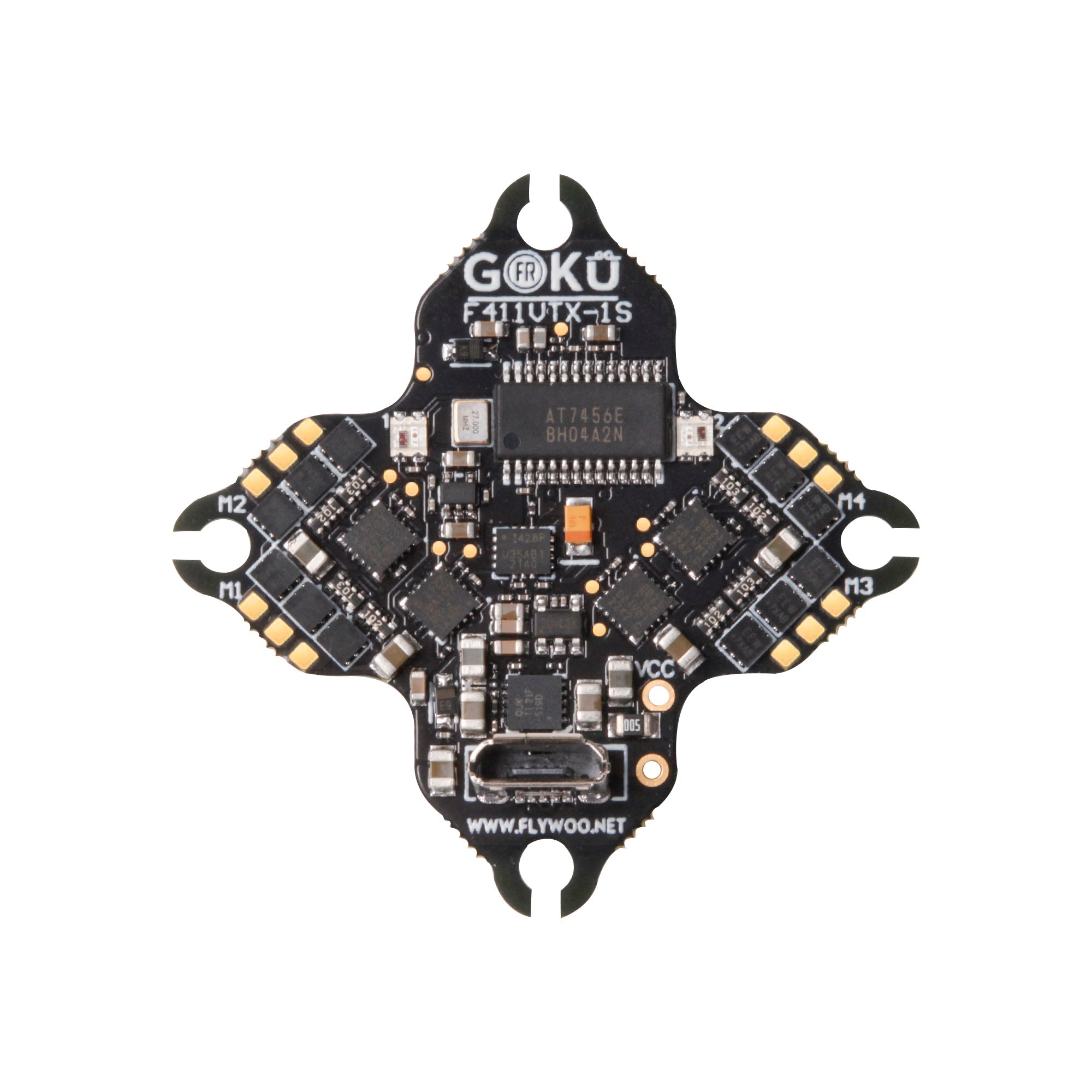

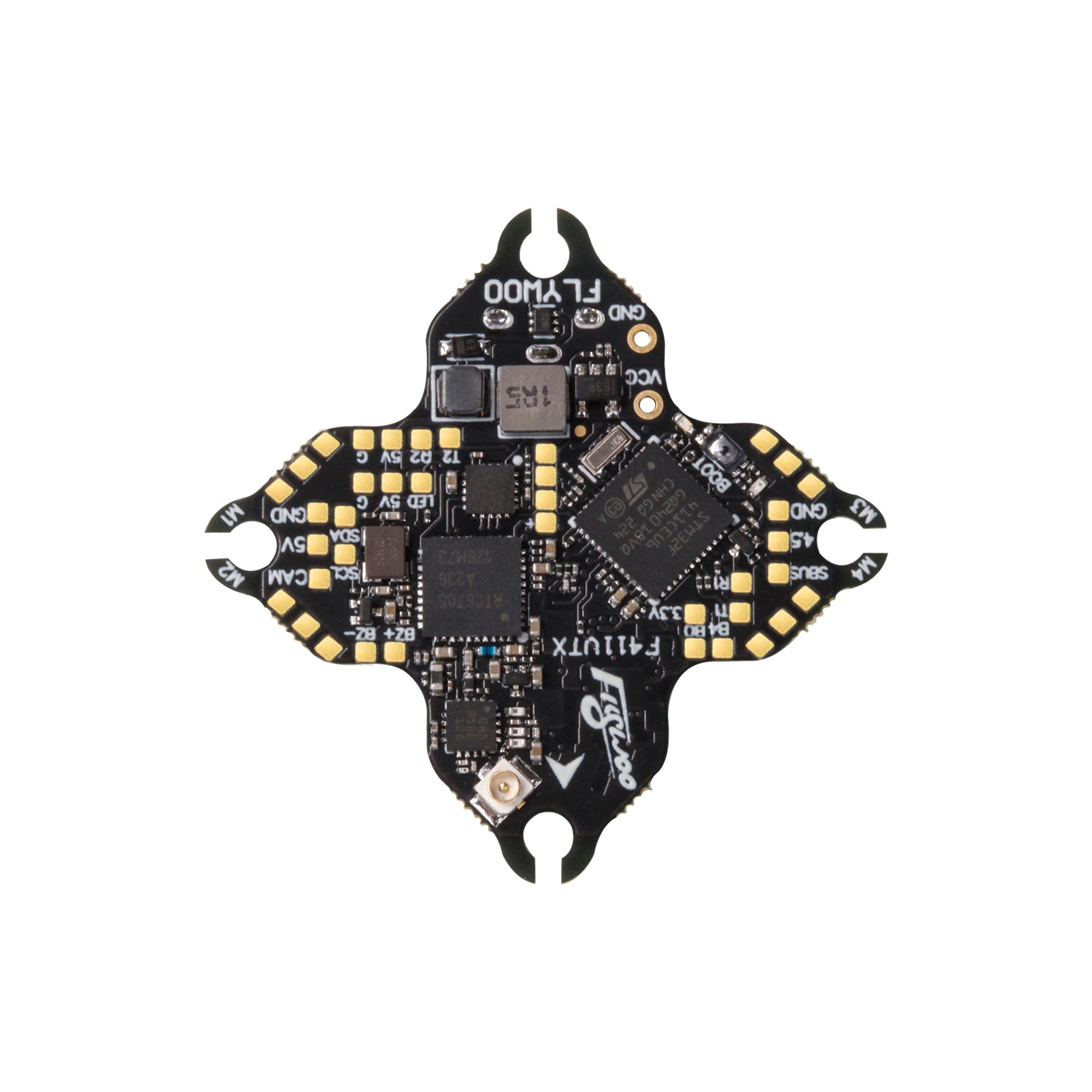

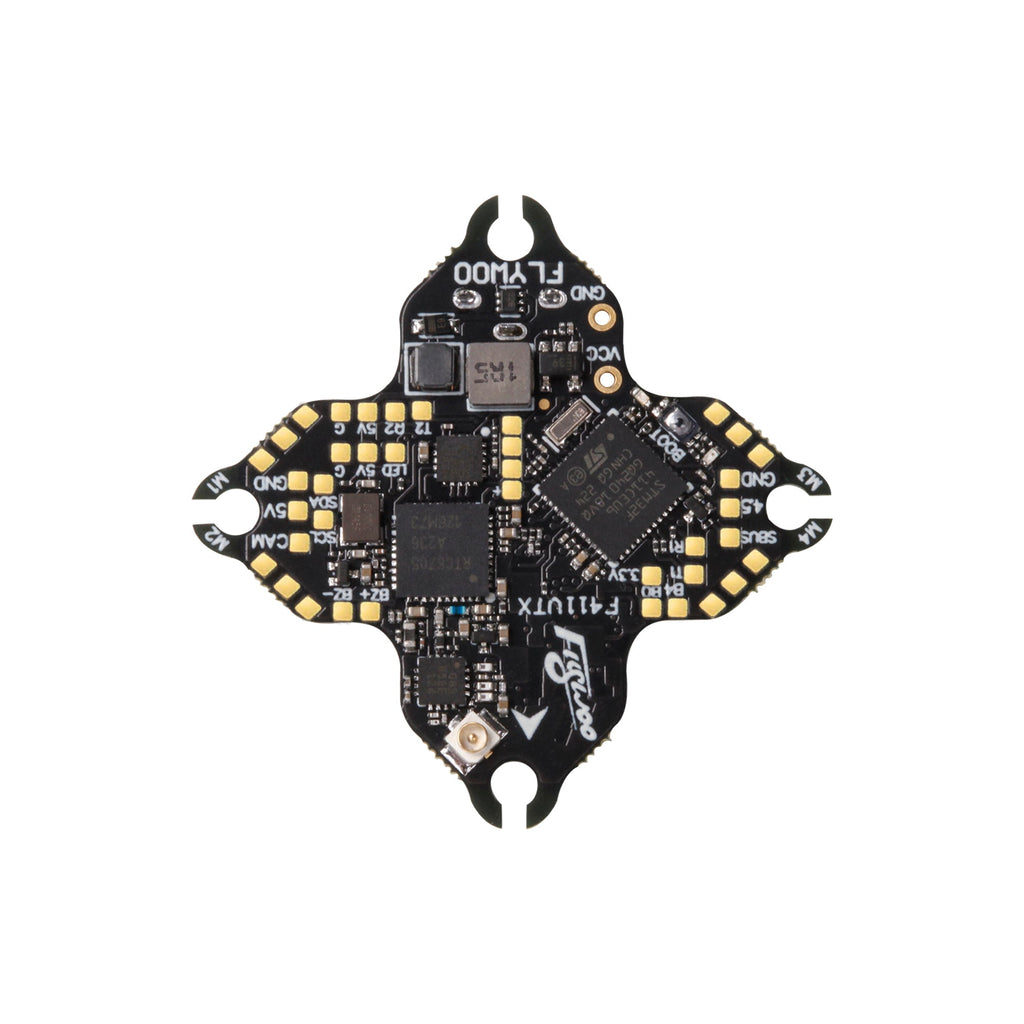

GOKU Versatile F411 1S 5A AIO V2.0 is another versatile and highly integrated circuit board in the GOKU Versatile series! Built-in 250mw VTX ，1S 5A ESC， OSD, 3 serial ports， I2C functionality and 2XWS2812 LEDs . Reasonable layout makes it easier for you to build . You only need to choose the motor, frame, camera, propeller ， everything else all packed into a compact whoop board.
Highlights :

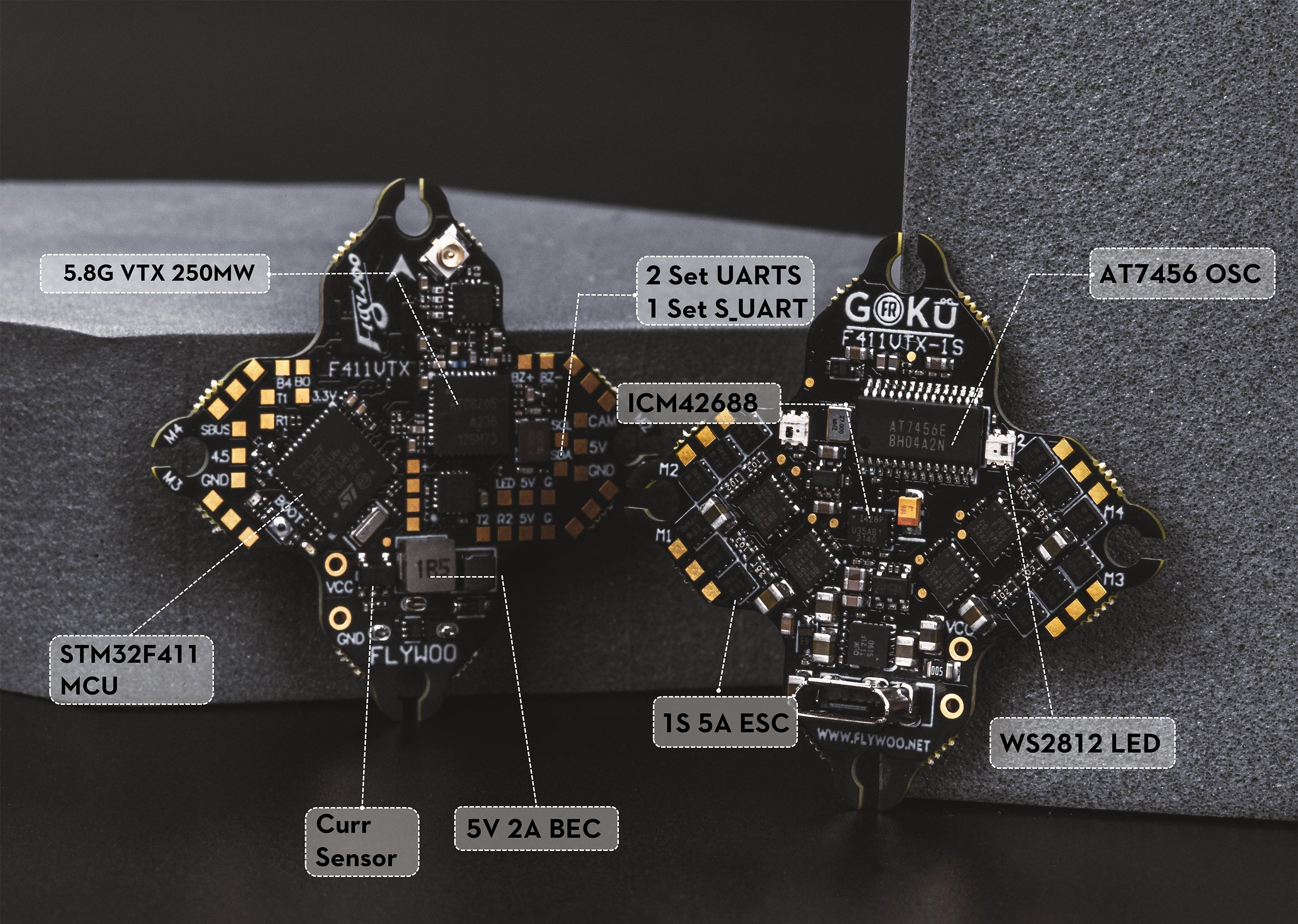

- Built-in 250mw vtx, 1S 5A ESC, OSD .
- Opened 3 serial ports and 12C functionality
- Mounting Pattern: 25x25mm, M2

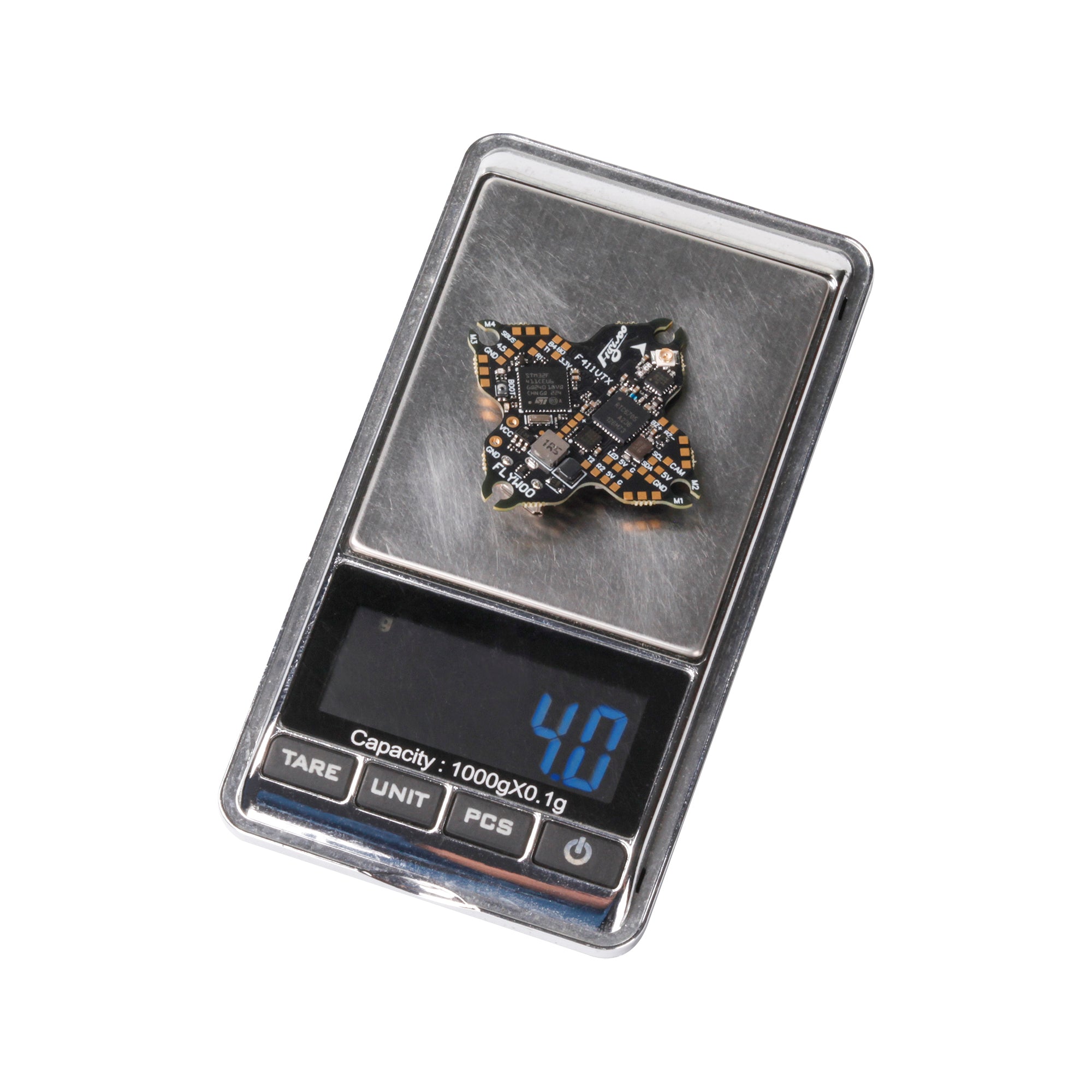

- Ultra light weight 4g
- Built-in 2XWS2812 LEDs
- Reasonable layout , easy to build
原廠規格
Flight Controller
- MCU: STM32F411CEU6
- GYRO: ICM42688
- UARTS: 1/2
- Soft serial port：1
- I2C: SCL/SDA
- BEC: 5V
- Input Voltage: 1S ( <4.35v)
- Firmware: FLYWOOF411_5IN1_AIO
- Mounting: 25x25mm, M2
Onboard 4in1 ESC
- MCU: EFM8BB21
- Power supply: 1S LiPo/LiPo HVCurrent: 5A
- Firmware: BLHeli_S
- Factory firmware: O_H_5_REV16_8.HEX
- Default protocol: DSHOT 150/300/600
Onboard 5.8g VTX
- Output power: 25mw~250mw switchable
- Frequency: 40CH
- Frequency: 5.8GHz 5 bands 40 channels(include Race band) IRC ready
查看 Flywoo 官方頁：GOKU Versatile F411 VTX 1S 5A AIO V2.0 w/ 250mw vtx , 25.5X25.5
