【Flywoo】GOKU G45M 45A 四合一電調｜3–6S・20×20・32bit 是Flywoo 原廠 FPV 電子模組，對應原廠資料：GOKU G45M 32BIT 128K 3-6S 45A ESC (20x20)。下單時請依本店商品選項確認版本、接頭、電壓、尺寸與數量；下方完整保留原廠目前公開的特色、規格、相容資訊、圖文與包裝內容。

本店可選規格

  • Default

原廠完整資料：GOKU G45M 32BIT 128K 3-6S 45A ESC (20x20)

The GOKU G45M is a high-performance ESC with a 45A continuous current rating and 32-bit processing speed. It features AM32 firmware, supporting bidirectional DSHOT and telemetry, with a maximum refresh rate of 128K.
Key features include the AT32 dual-in-one chip, imported MOSFETs, high-quality ceramic capacitors, and a 6-layer PCB design, reducing heat and improving efficiency. Compatible with DShot1200, PWM, and Oneshot signals, the GOKU G45M ensures an exceptional flying experience.

Highlights：

  1. High-Performance Chip: Utilizes the new generation AT32 dual-in-one main control chip.
  2. Quality Components: Imported MOSFETs and high-quality ceramic capacitors for improved efficiency and performance.
  3. Powerful Functions: Supports bi-directional DSHOT and data telemetry for easy flight control.
  4. Compatibility: Supports various setting and upgrading methods, compatible with multiple throttle signals.

Specifications：

  • Name: GOKU G45M AM32 4in1 ESC
  • Support AM32
  • Support Dshot300, Dshot600,Dshot1200
  • PWM frequency: 24k-128k
  • Input Voltage: 3-6S Lipo
  • Continuous Current: 45A
  • Firmware: GOKU_F4A32_PRO

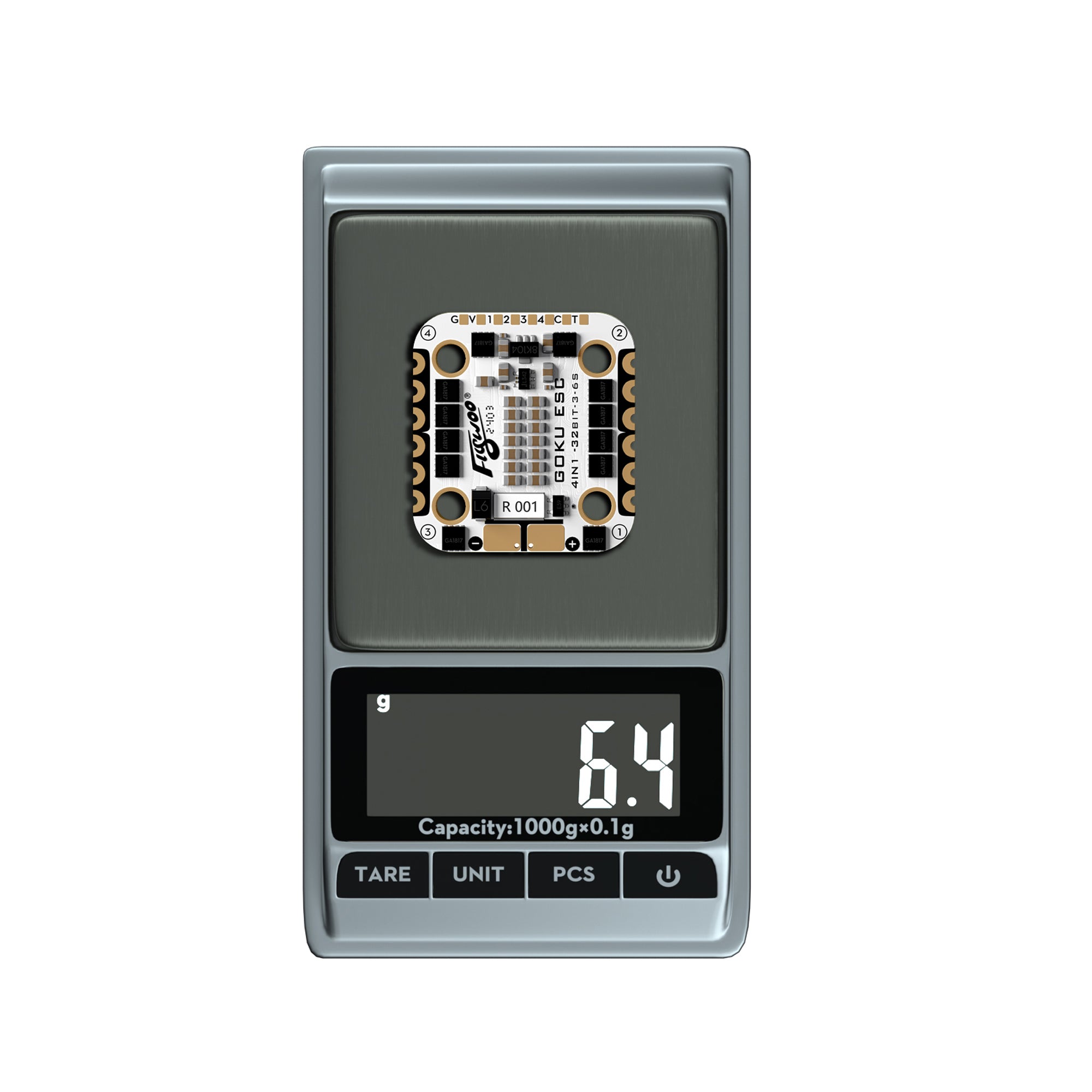

  • Weight: 6.4g
Parameter
Value
Continuous / Peak Current
45A x4 / 50A x4 (10s)
Battery Cells
3-6S LIPO
Power Connector
XT30/60
Output Wires
None, reserved solder pads

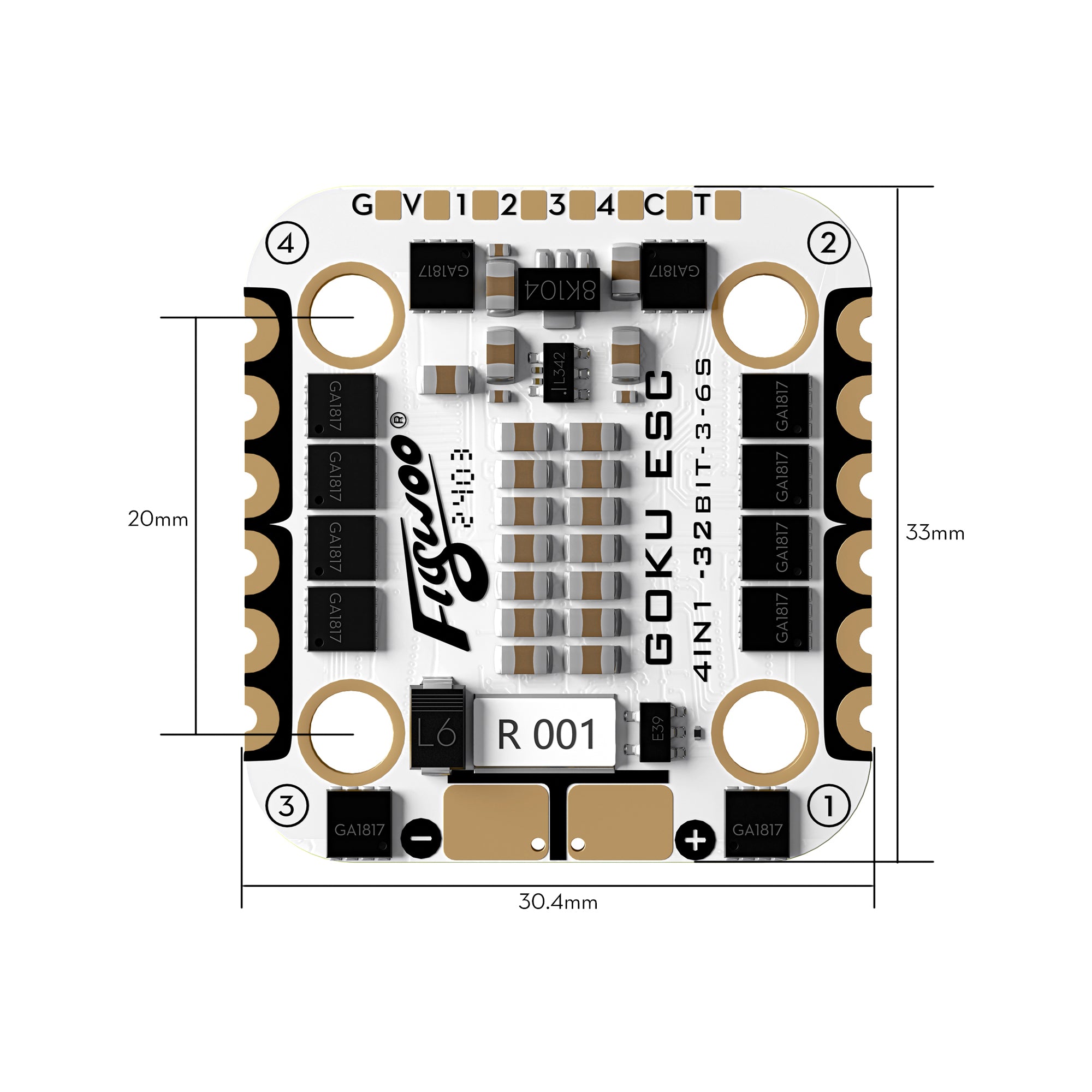

Dimensions
33x30x6.1mm
Firmware
GOKU_F4A32_PRO
Programming and Tuning
Supported
Programming Method
AM32
DEO
Supported
Throttle Range Calibration
Supported
Oneshot123 Throttle Mode
Supported
Oneshot42 Throttle Mode
Supported
MultiShot Throttle Mode
Supported
DSHOT150/300/600/1200
Supported
PWM Refresh Rate
24K-128K
Timing Adjustment
Supported
Motor Direction Setting
Supported

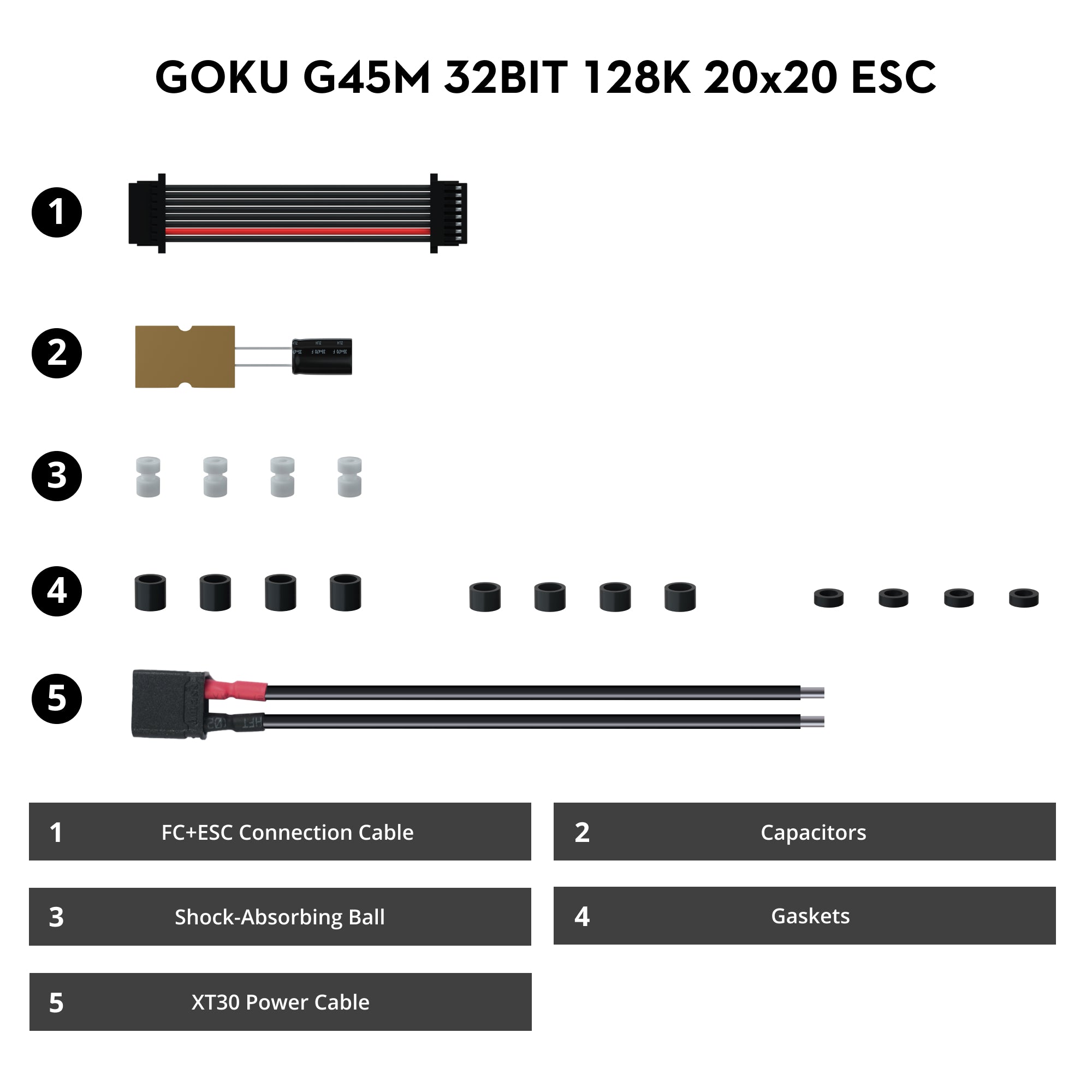

In the Box

  • 1x FC to ESC connection Cable
  • 1x Capacitor
  • 4x M2 Shock-Absorbing Ball
  • 1x XT30 Cable
