FLYWOO GOKU F722 PRO Mini V2 20x20 Flight Controller

GOKU F722 PRO Mini V2 20X20 Flight Controller Plug&Play O4 / O4 Pro-FLYWOO

【Flywoo】GOKU F722 Pro Mini V2 飛控｜20×20・O4 隨插即用

$1,622.00

推薦搭配配件

⚠️ 下單前務必先確認現貨

商品庫存流動快速，請先聯繫酷飛 LINE 官方帳號，確認商品型號、規格與現貨後再下單。

聯繫酷飛官方 LINE LINE ID：@729jvyax

zingala 銀角零卡分期

想使用銀角零卡分期付款，請前往本商品的銀角頁面選擇方案並完成申請。

前往銀角分期付款

產品介紹

【Flywoo】GOKU F722 Pro Mini V2 飛控｜20×20・O4 隨插即用 是Flywoo 原廠 FPV 電子模組，對應原廠資料：GOKU F722 PRO Mini V2 20X20 Flight Controller Plug&Play O4 / O4 Pro。下單時請依本店商品選項確認版本、接頭、電壓、尺寸與數量；下方完整保留原廠目前公開的特色、規格、相容資訊、圖文與包裝內容。

本店可選規格

Default

原廠完整資料：GOKU F722 PRO Mini V2 20X20 Flight Controller Plug&Play O4 / O4 Pro

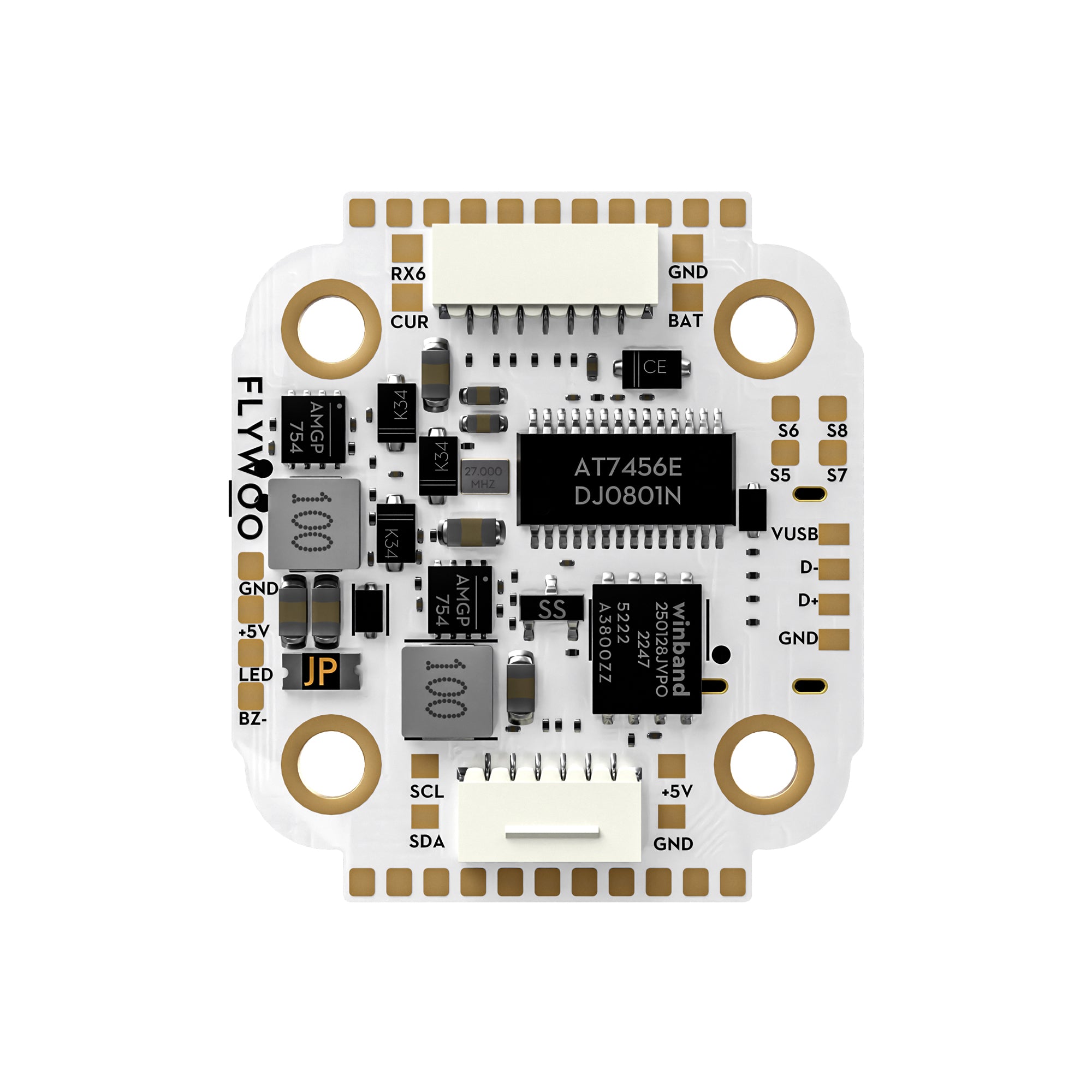

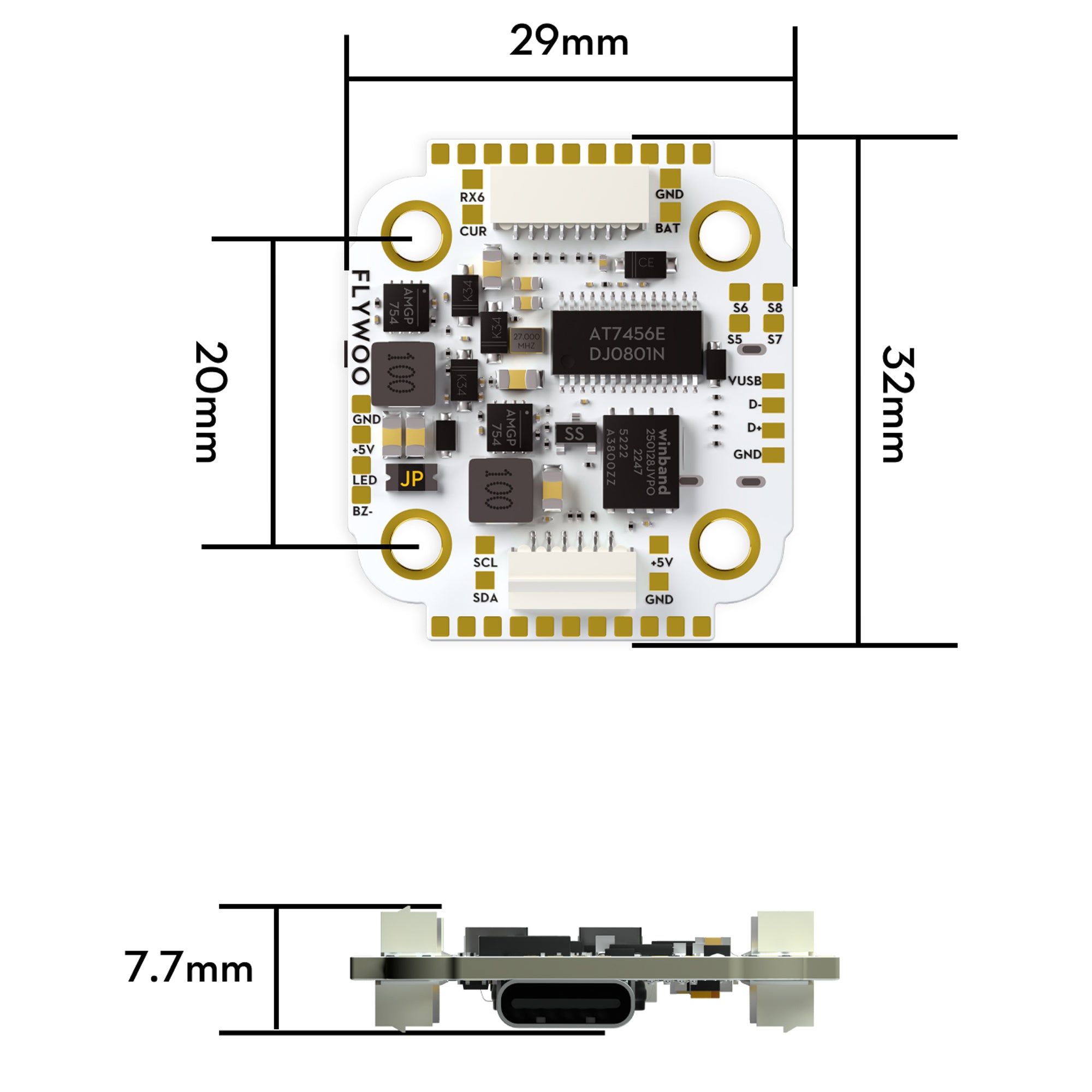

The new generation F722 PRO Mini V2 flight controller from FLYWOO not only offers a standard 20mm size, high-performance STM32 F722 main control, but it also supports 8 motor outputs and reserves dual 4-in-1 ESC sockets.

It features a user-friendly socket design for all ports, which significantly simplifies the process of connecting devices, thereby enhancing installation efficiency and making maintenance and fault inspection more convenient. This design effectively lowers the threshold for building drones.

Moreover, all solder pads are retained, providing customers with the flexibility to choose their preferred method of device connection.

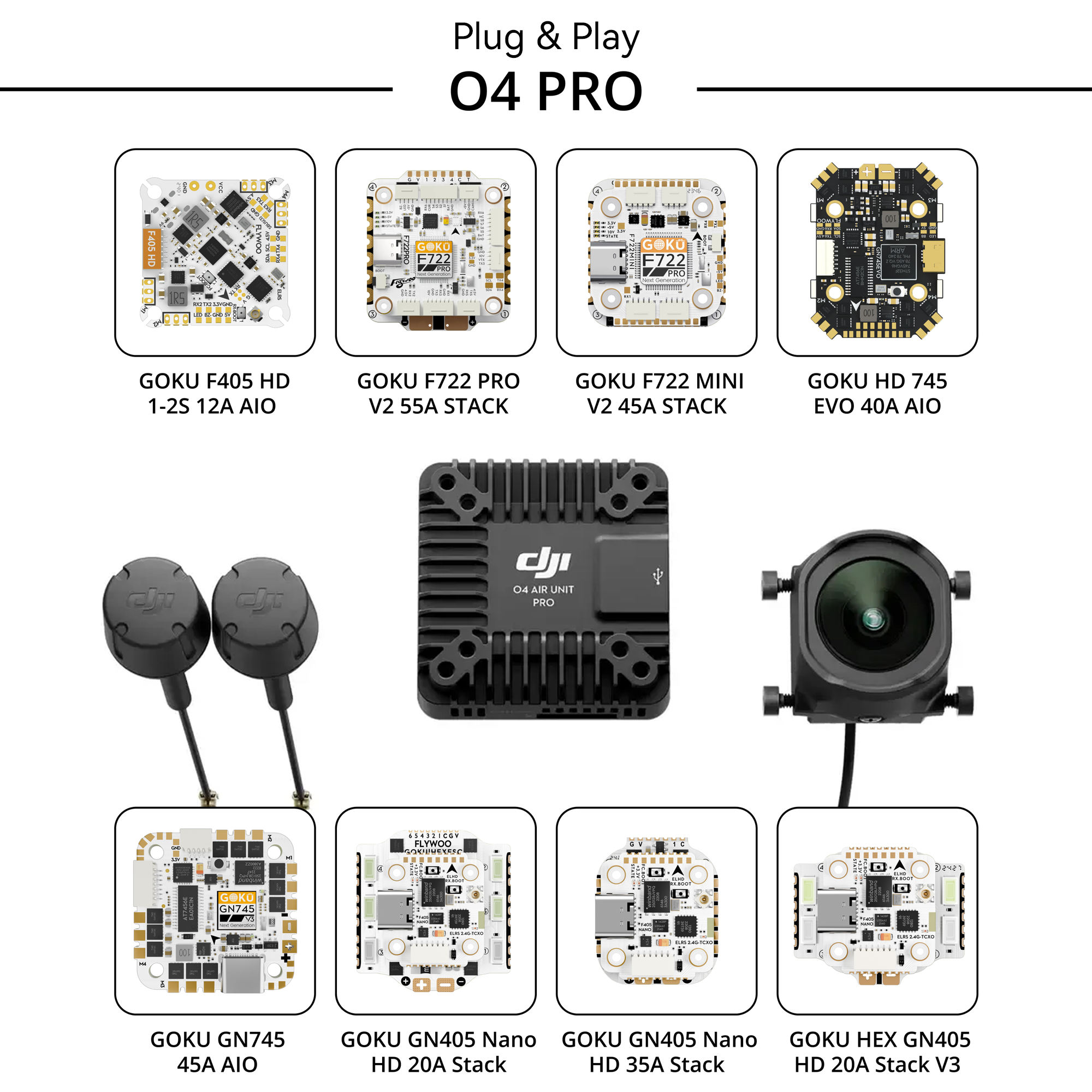

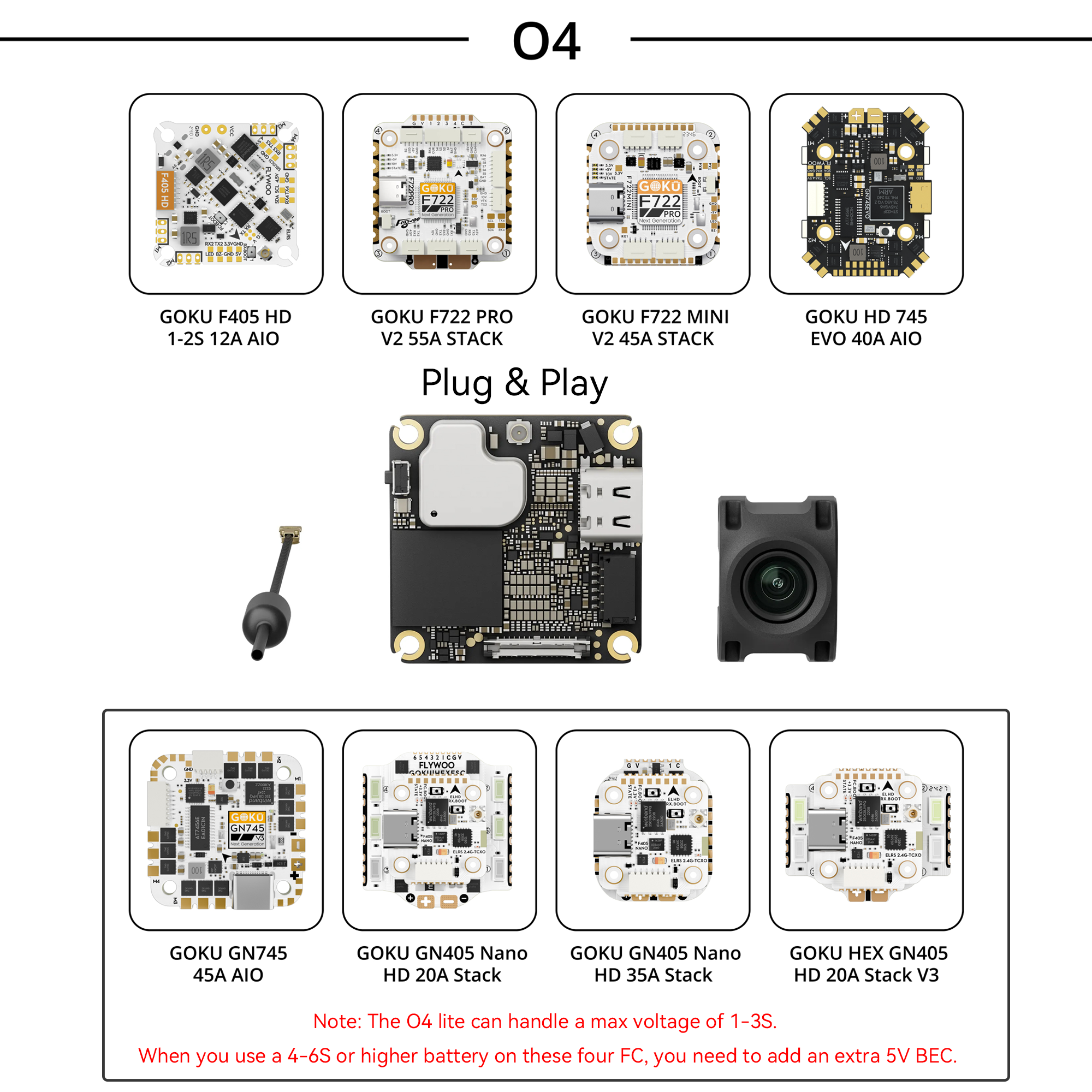

Furthermore, it includes a plug-and-play feature, specifically designed for the DJI O3 Air Unit, which streamlines the integration process for pilots looking to utilize DJI's advanced digital transmission system with their builds.

Highlights：

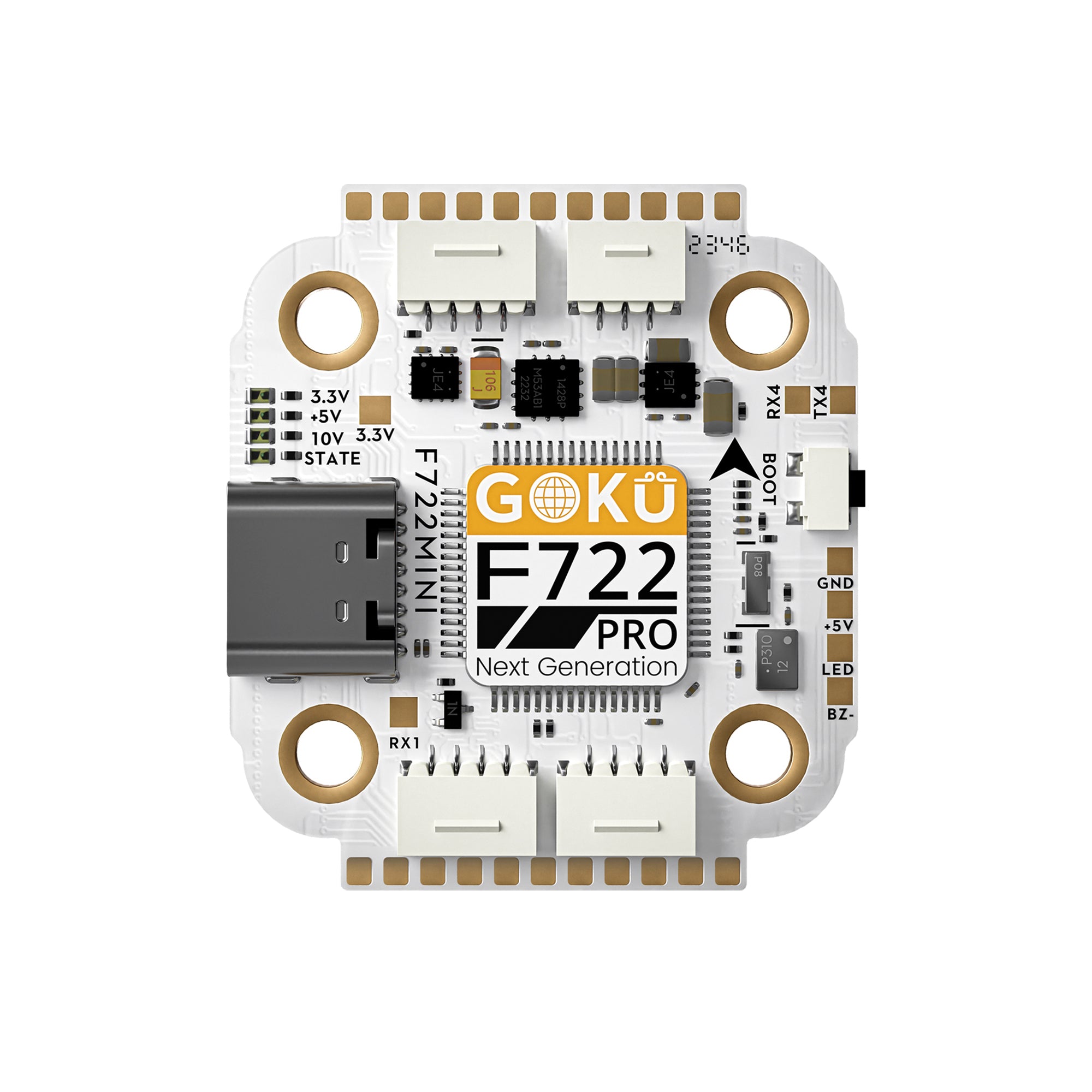

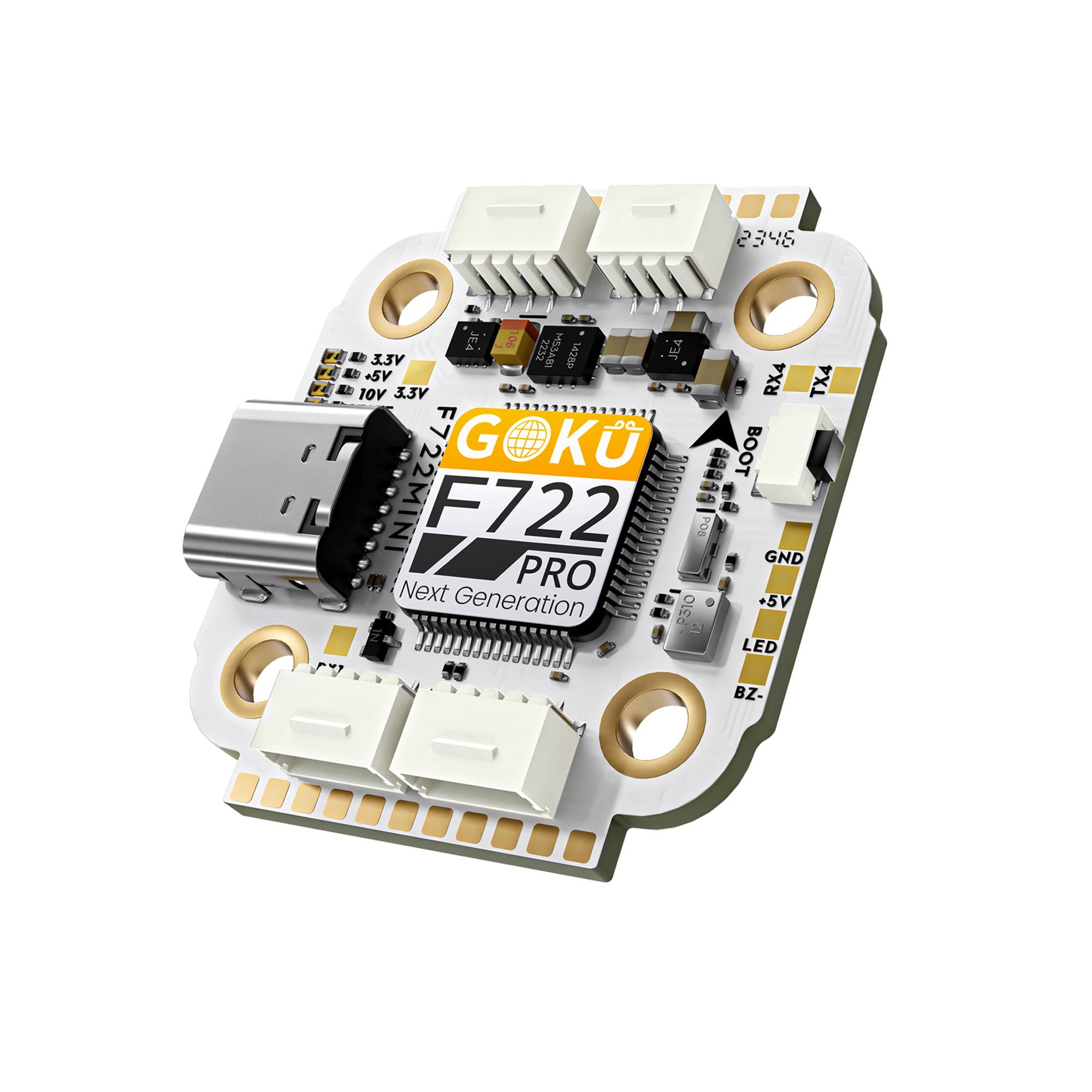

High-performance processor: Equipped with the STM32F722 high-performance processor with a processing speed of up to 216MHz for faster response.
Precision gyroscope: Features the ICM42688 gyroscope for improved control precision and enhanced flight stability.
Modular installation: Utilizes snap-lock sockets for plug-and-play functionality without the need for soldering, enabling modular installation, and includes reserved solder pads.
Large-capacity black box: Includes a 16MB large-capacity black box to ensure sufficient storage of flight data for later analysis.
Stable current output: Onboard 10V/2A and 5V/2A BEC to provide stable current output for VTX and various peripherals.
Multiple motor outputs: Supports 8 motor outputs and reserves dual 4-in-1 ESC sockets for simplified connections.
Durable design: Utilizes immersion gold PCB manufacturing process to ensure high-temperature and high-current resistance, guaranteeing stable operation.
