產品介紹
【Flywoo】Flylens 75 HDZero 2S 涵道穿越機 V1.3 是Flywoo 原廠 FPV 無人機／穿越機產品，對應原廠資料：FlyLens 75 Frame kit O3 \ O4 \ O4pro。下單時請依本店商品選項確認版本、接頭、電壓、尺寸與數量；下方完整保留原廠目前公開的特色、規格、相容資訊、圖文與包裝內容。
本店可選規格
- ELRS 2.4G
- TBS CRSF
原廠完整資料：FlyLens 75 Frame kit O3 \ O4 \ O4pro
Flylens 75 frame parts collection
Description:
The Flylens 75 frame is a 1.6-inch whoop-type frame designed for indoor and narrow space flight. It is compatible with various mainstream digital and analog image transmission systems. The frame is equipped with an injection-molded protective ring and a carbon black treatment process.
The Flylens series opens up the field of micro-crossing machine film and television creation, providing the latest and most reliable solutions for exploring and capturing new perspectives.
Highlights:
- 1/ Compact and lightweight design for a 1.6 inch drone.
- 2/ Supports O3 \ O4\ O4 PRO digital image transmission for long-range, 4K high-definition, low-latency transmission.
- 3/ High-strength PC injection-molded protective ring for enhanced durability and safety.
- 4/ Unique CNC damping platform for stable video recording.
- 5/ Bottom-mounted image transmission PC compartment for protection and improved heat dissipation.
- 6/ Quick-release frame design for easy component separation.
- 7/ Reverse thrust propeller configuration for stable flight and extended endurance.

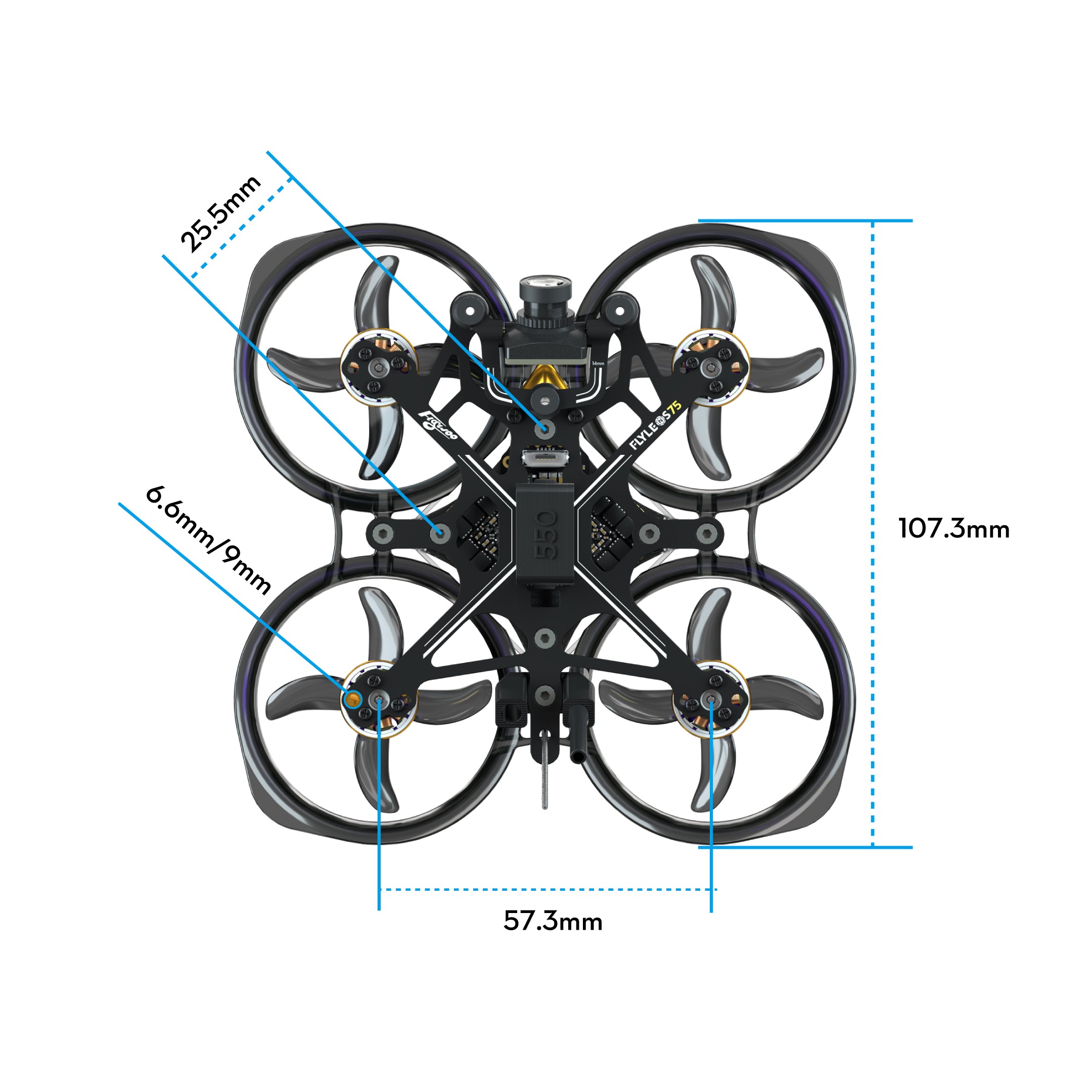

Specifications:
| Brand | FLYWOO |
| 型號 | Flylens 75 |
| Main Board Thickness | 2mm |
| CNC Gimbal Thickness | 1mm |
| Protective Ring Material | PC+ |
| Flight Control Hole Position | 25.5x25.5mm |
| Image Transmission Hole Position | 20/25.5mm Motor Hole |
| Position | 6.6mm/ 9mm |
|
Propeller Size
|
1.6 inch
|
| Camera Hole Position | 14mm\18mm\20mm |
Recommmend Configuration :
| Model | FlyLens 75 Frame kit O3 \ O4 \ O4pro |
| 電子系統 | GOKU Versatile F405 1-2S 12A AIO |
| 螺旋槳 | 1611 3-Blade Propeller (Set of 8) - 1.5mm Shaft |
| 馬達 | ROBO 1003 14800KV |
| Antenna | Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL |
Product Size:
- O3 Frame kit (20mm Cam Size): Suitable for all 20mm-sized cameras, such as Nebula Pro, Wasp, Walksnail Micro Cam, and HDZero Micro Cam.
- O3 Lite / O4 Frame kit (18mm Cam Size): Comes with a default 18mm CNC camera bracket. But You can also purchase an additional 14mm CNC camera bracket for installing such as Nebula Pro Nano, Wasp Nano, Walksnail 1S Lite, and HDZero 1S Whoop , O3 lite air unit , O4 air unit
- Flylens 75 Frame kit (14mm Cam Size): Suitable for all 14mm-sized cameras, such as Nebula Pro Nano, Wasp Nano, Walksnail 1S Lite, and HDZero 1S Whoop， Flywoo Nano Cam V3
