Flywoo DJI O4 廣角相機外殼 V2
Flywoo DJI O4 廣角相機外殼 V2
推薦搭配配件
⚠️ 下單前務必先確認現貨
商品庫存流動快速，請先聯繫酷飛 LINE 官方帳號，確認商品型號、規格與現貨後再下單。
聯繫酷飛官方 LINE LINE ID：@729jvyax
zingala 銀角零卡分期
想使用銀角零卡分期付款，請前往本商品的銀角頁面選擇方案並完成申請。
產品介紹
Flywoo DJI O4 廣角相機外殼 V2 是Flywoo 原廠相機、鏡頭或濾鏡配件，對應原廠資料：Flywoo DJI O4 Wide Cam shell V2。下單時請依本店商品選項確認版本、接頭、電壓、尺寸與數量；下方完整保留原廠目前公開的特色、規格、相容資訊、圖文與包裝內容。
本店可選規格
- 18毫米 / 黑色
- 18毫米 / 紫色
- 20毫米 / 黑色
- 20毫米 / 紫色
原廠完整資料：Flywoo DJI O4 Wide Cam shell V2
原廠產品說明（英文）

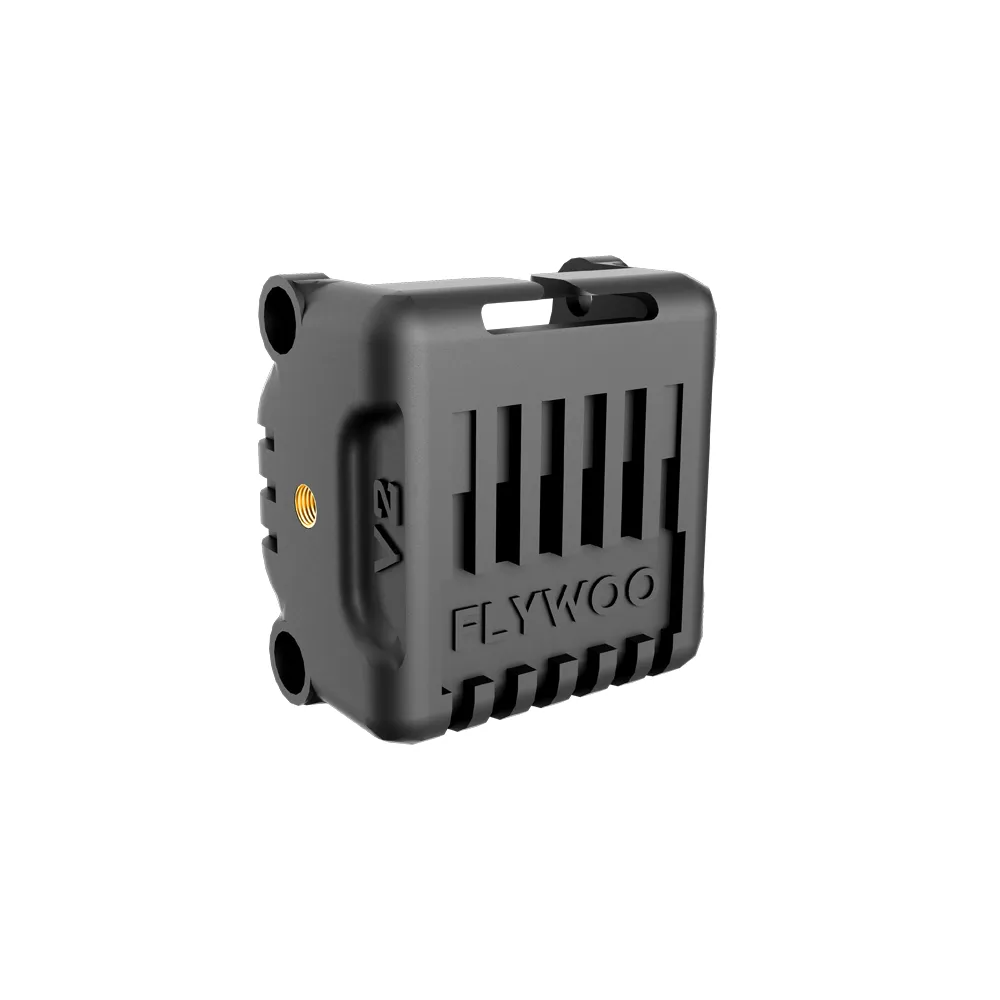

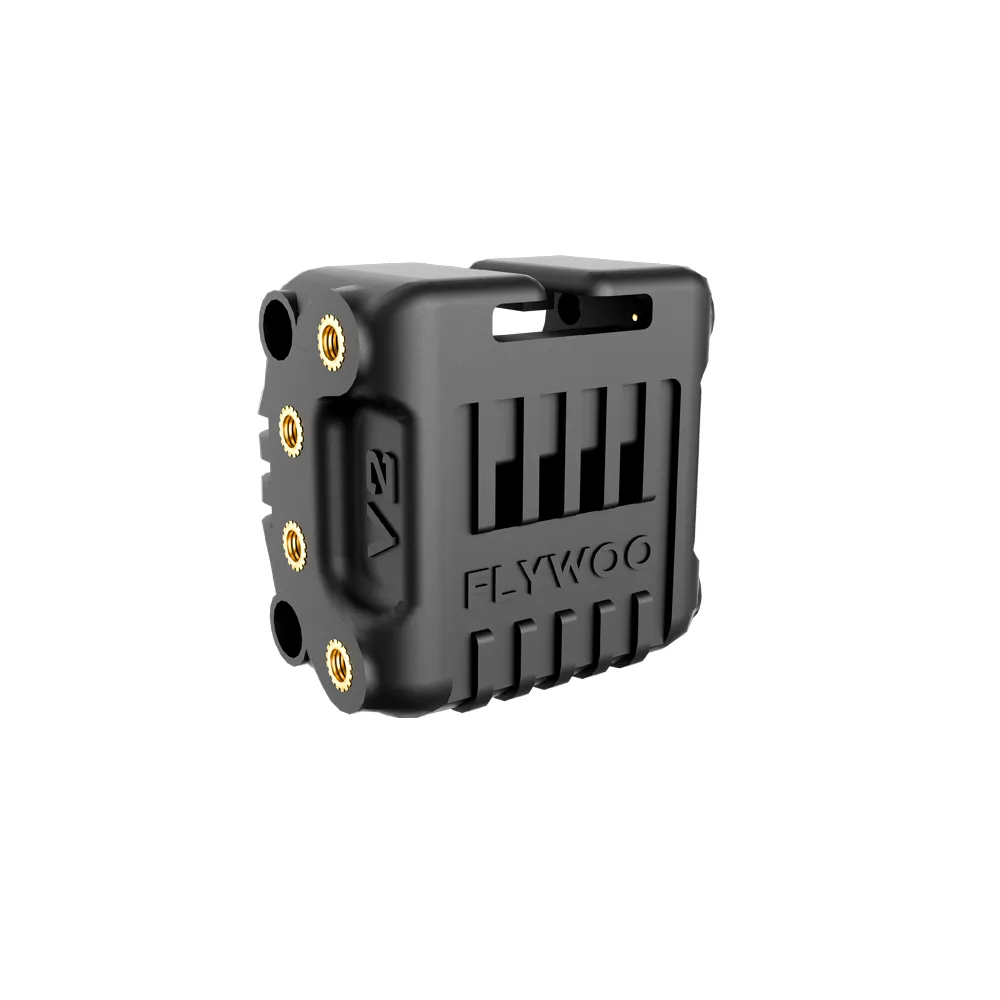

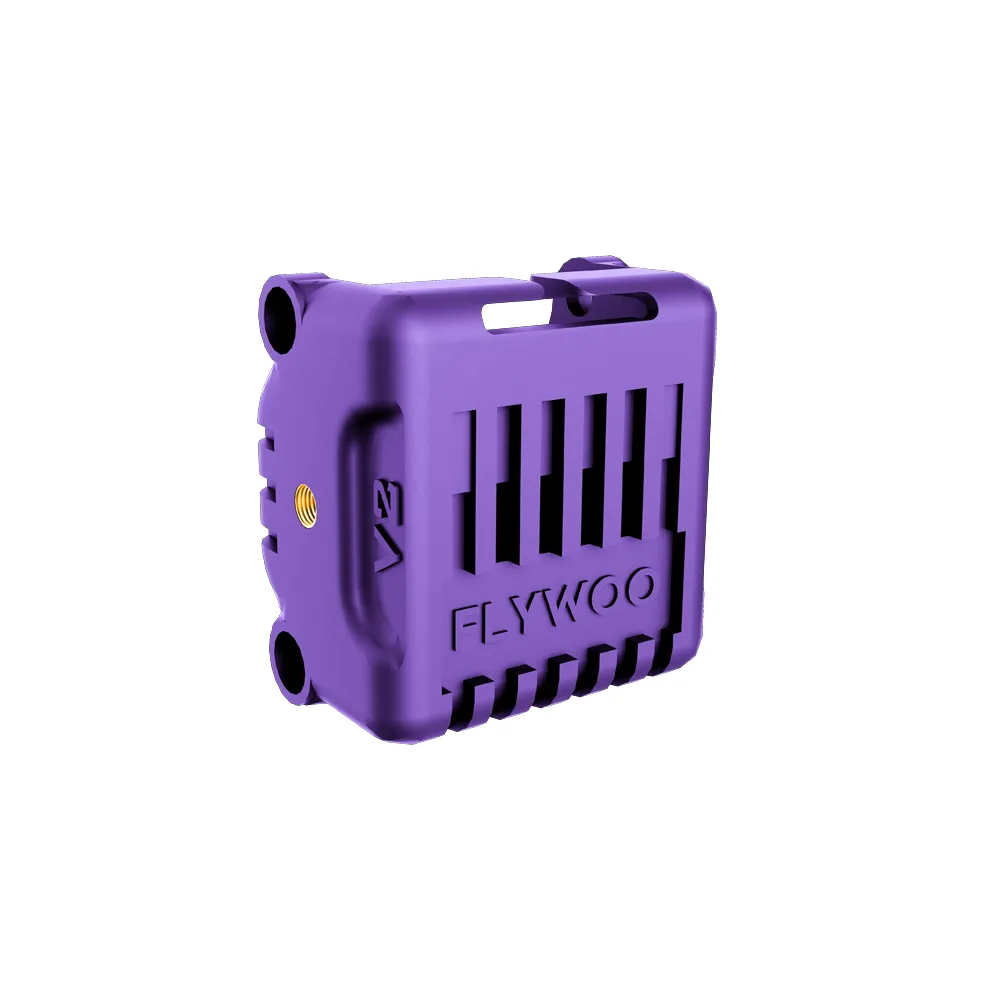

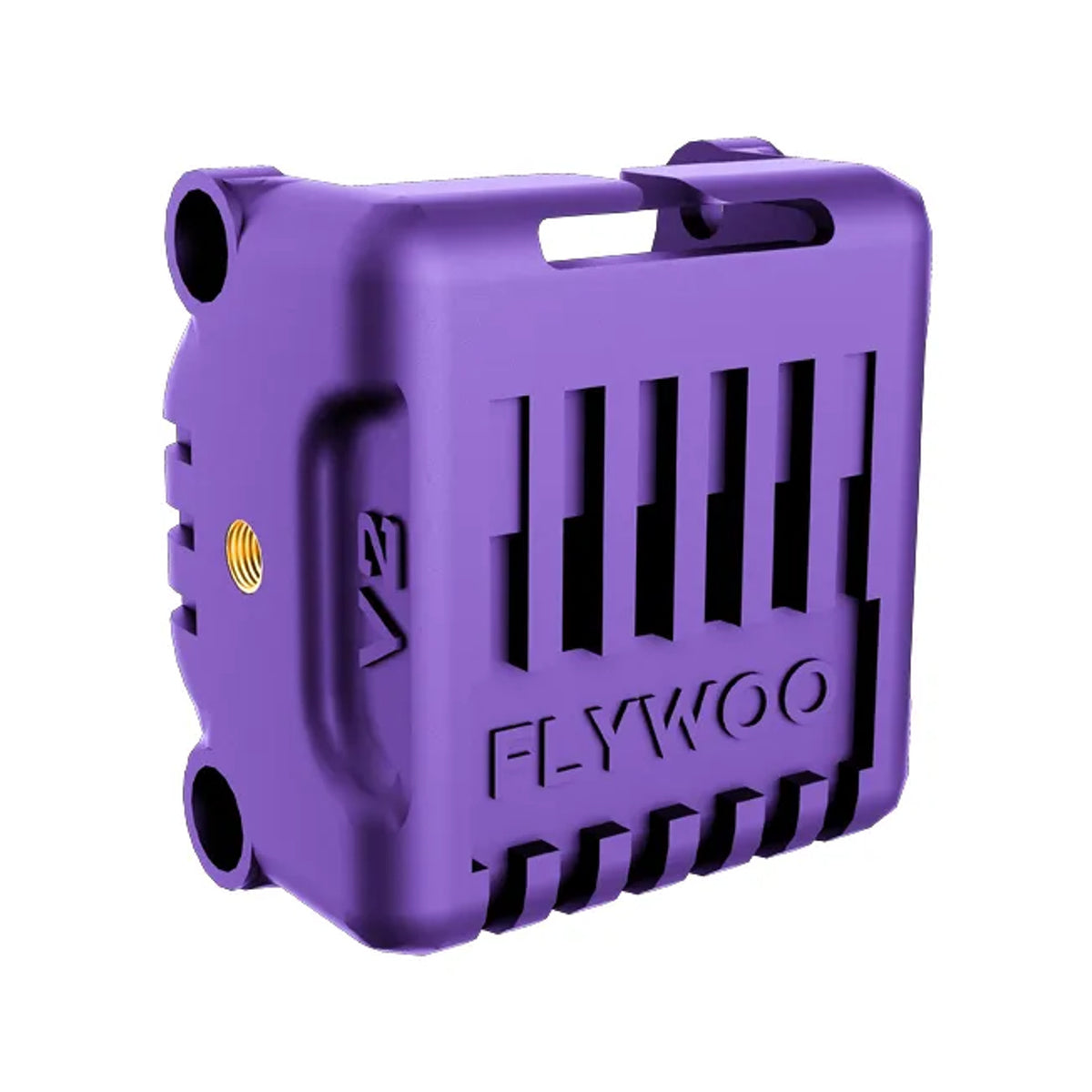

FLYWOO DJI O4 Wide Camera Protective shell is made for the DJI O4 Wide Air Unit camera. It covers the exposed rear section of the camera, helping protect the rear PCB and coaxial cable connection board from direct impact during a crash.
The shell also adds useful mass to the camera assembly. On lighter standard O4 builds, this can reduce the demand on an overly soft damping setup and make it easier to tune for steadier footage.
Choose the 18mm version for frames with 18mm or 19mm camera mounts. Choose the 20mm version for frames designed around DJI O3 or O4 Pro camera mounting. Both versions are available in black or purple.
Highlights
-
Rear PCB and cable protection
Covers the exposed rear camera area to help protect the PCB and coaxial cable connection board from crash impact. -
Added weight for easier tuning
Adds 1.8g on the 18mm version or 3.7g on the 20mm version, helping balance lighter O4 Wide camera setups. -
Two frame-mount options
The 18mm housing fits 18mm and 19mm camera mounts. The 20mm housing fits O3 and O4 Pro camera mounts. -
POM construction
Made from durable POM for a secure, lightweight camera housing. -
Black or purple
Available in two color options to match your build.
原廠規格
| Specification | 18mm Version | 20mm Version |
|---|---|---|
| Product Name | Flywoo DJI O4 Wide 18mm Cam shell V2 | Flywoo DJI O4 Wide 20mm Cam shell V2 |
| Compatible Camera | DJI O4 Wide Air Unit camera | DJI O4 Wide Air Unit camera |
| Compatible Frame Mount | 18mm / 19mm FPV frames | DJI O3 / O4 Pro FPV frames |
| Housing Dimensions | 18 × 22.5 × 20mm | 20 × 23.2 × 20mm |
| Housing Weight | 1.8g | 3.7g |
| Material | POM | POM |
| Housing Mounting | M2×3 cross-head screws | M2×4 cross-head screws |
| Camera Core Mounting | M2×3 round-head screws | M2×3 round-head screws |
| Color Options | Black / Purple | Black / Purple |
In the box:
- 1* Cam shell v2
- 1* Screws
