產品介紹
【Flywoo】CAP2‑TVS ESC 電源突波濾波器 是Flywoo 原廠相機、鏡頭或濾鏡配件，對應原廠資料：Flywoo CAP2-TVS ESC Power Filter。下單時請依本店商品選項確認版本、接頭、電壓、尺寸與數量；下方完整保留原廠目前公開的特色、規格、相容資訊、圖文與包裝內容。
本店可選規格
- Default
原廠完整資料：Flywoo CAP2-TVS ESC Power Filter
Product Description：
When brushless motors decelerate from high speeds, they generate powerful back EMF spikes that can far exceed the 30V voltage rating of most PCBA components. These transient voltage surges are the silent killers of FPV electronics, causing unexpected ESC failures and costly repairs mid-flight.

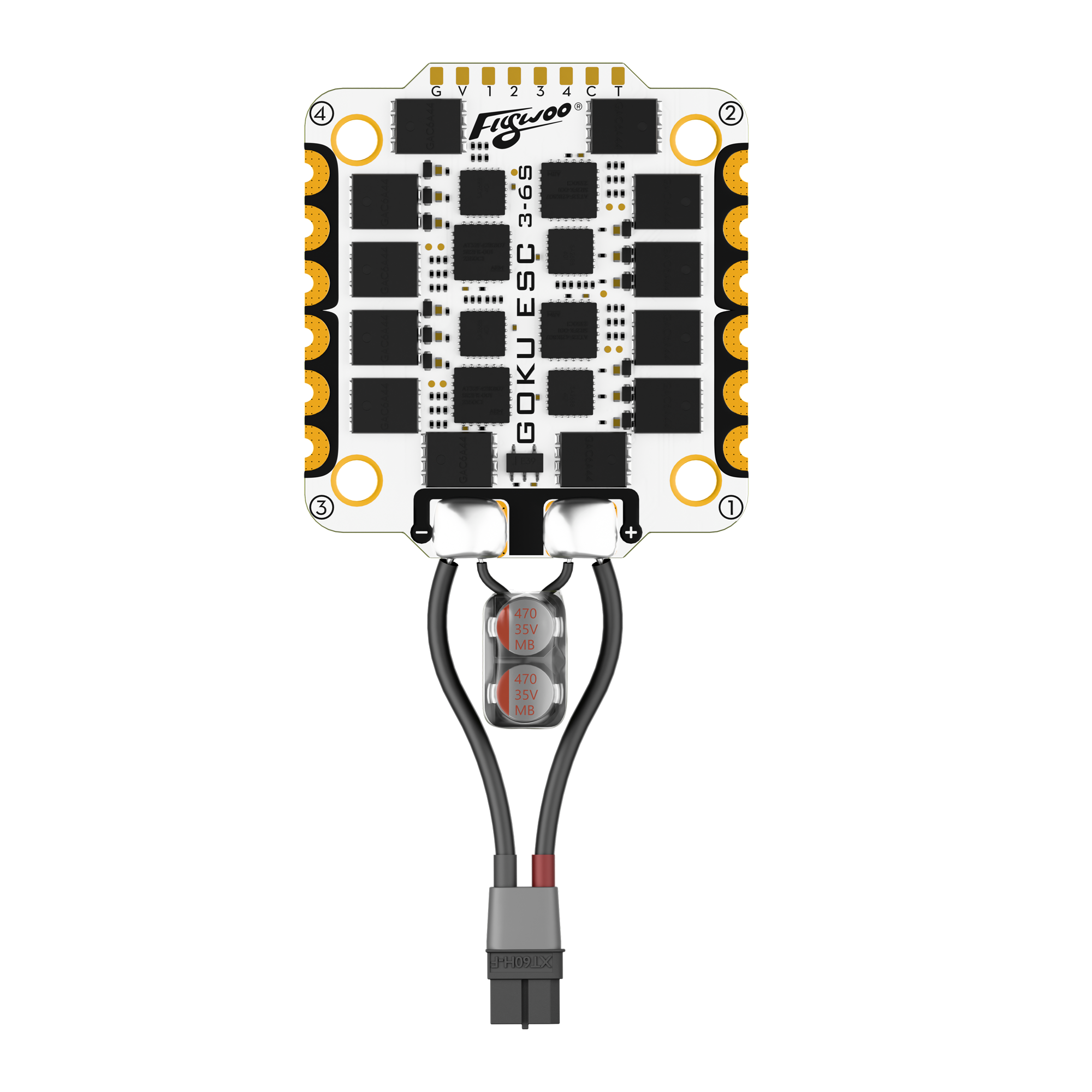

The Flywoo CAP2-TVS ESC Power Filter Board is engineered to eliminate this risk entirely. Equipped with high-performance Transient Voltage Suppressors (TVS), it instantly clamps any voltage spike above 26V to safe operating levels, creating an impenetrable shield for your flight controller and ESCs. Combined with two pre-soldered 470µF 35V MB solid-state capacitors, it also delivers superior power filtering for smoother throttle response and cleaner signal integrity.
Specifications:
| Parameter | Value |
|---|---|

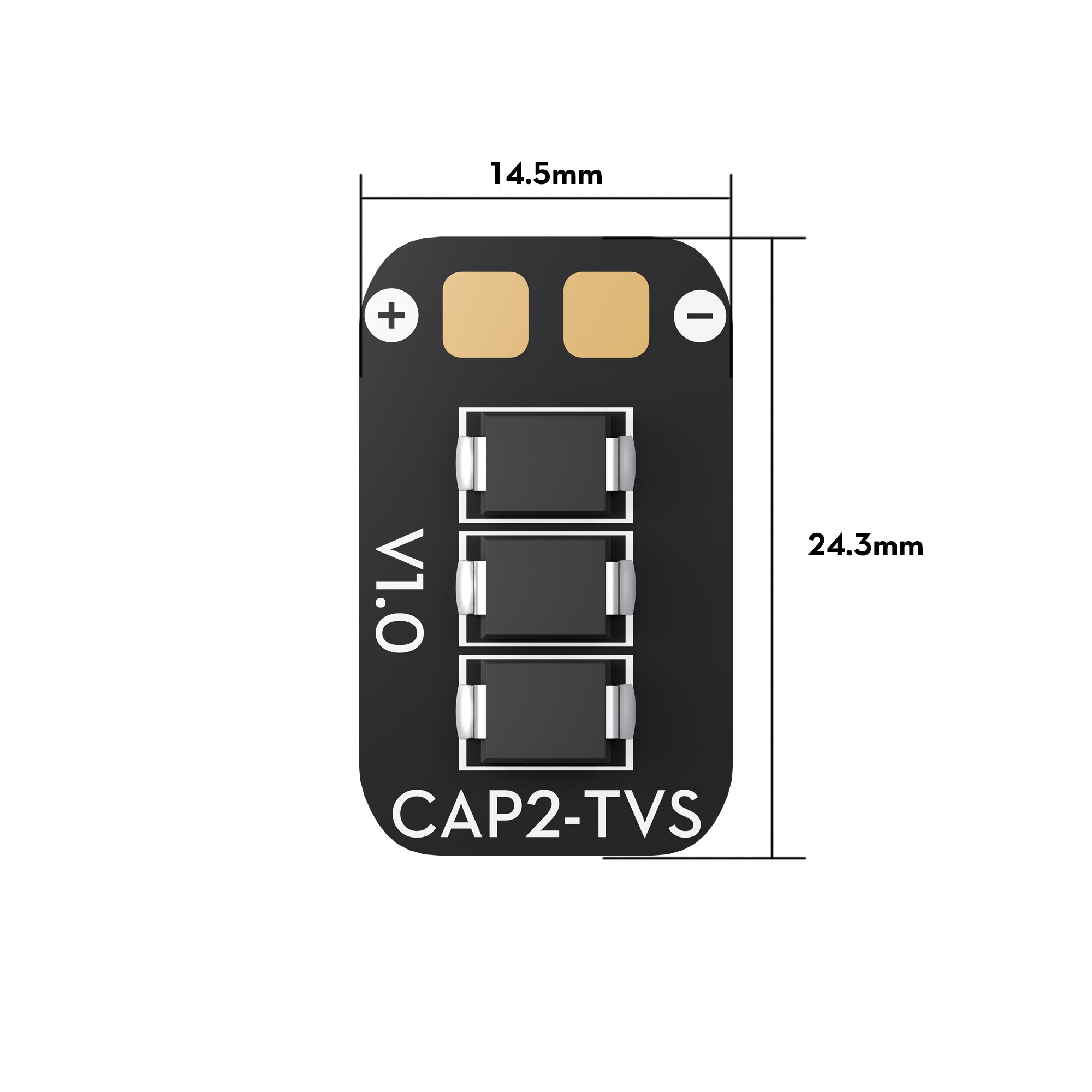

| Dimensions | 24 × 14.5 × 15.3 mm |
| 重量 | 3.9 g |
| Input Voltage | 3-6S LiPo (11.1-25.2V) |

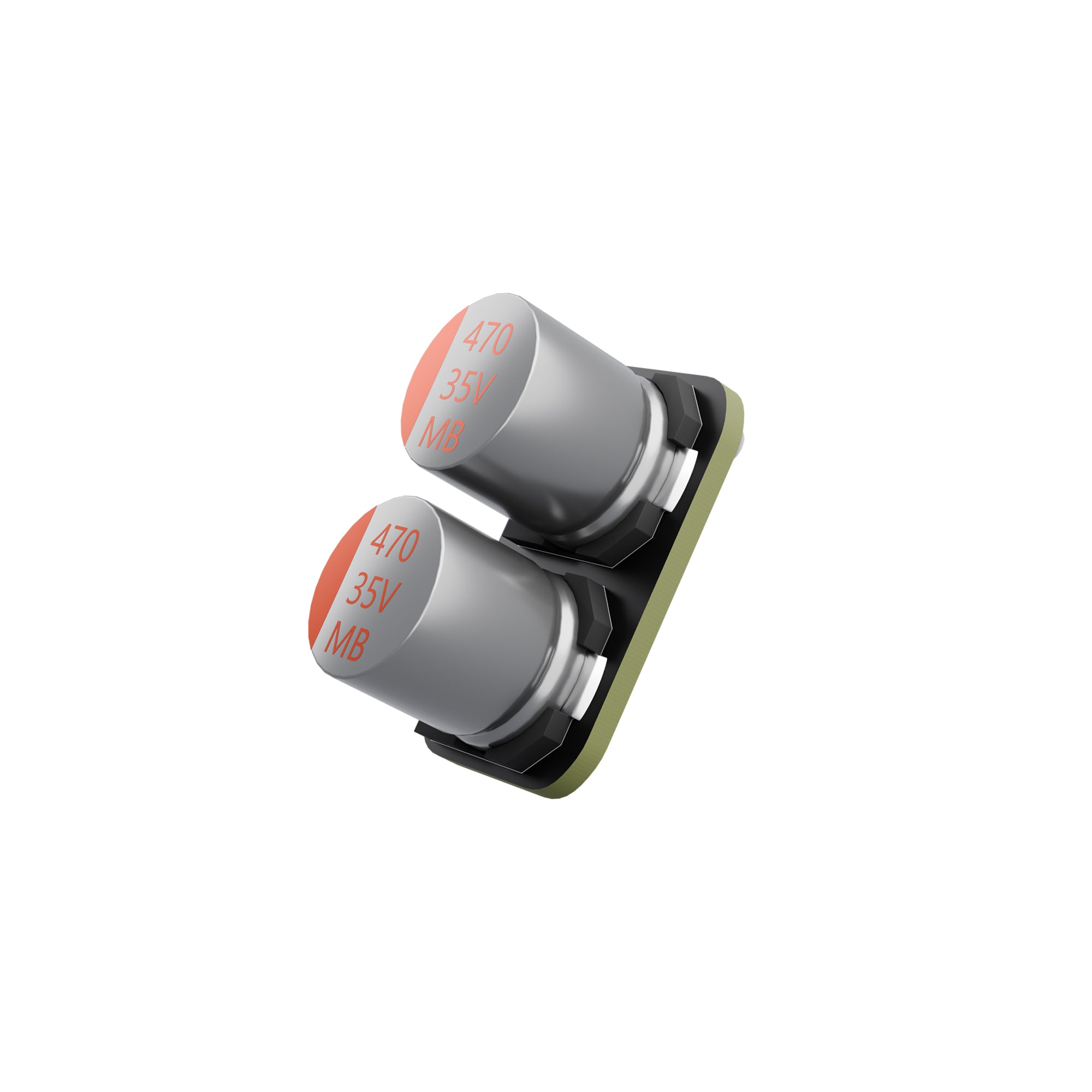

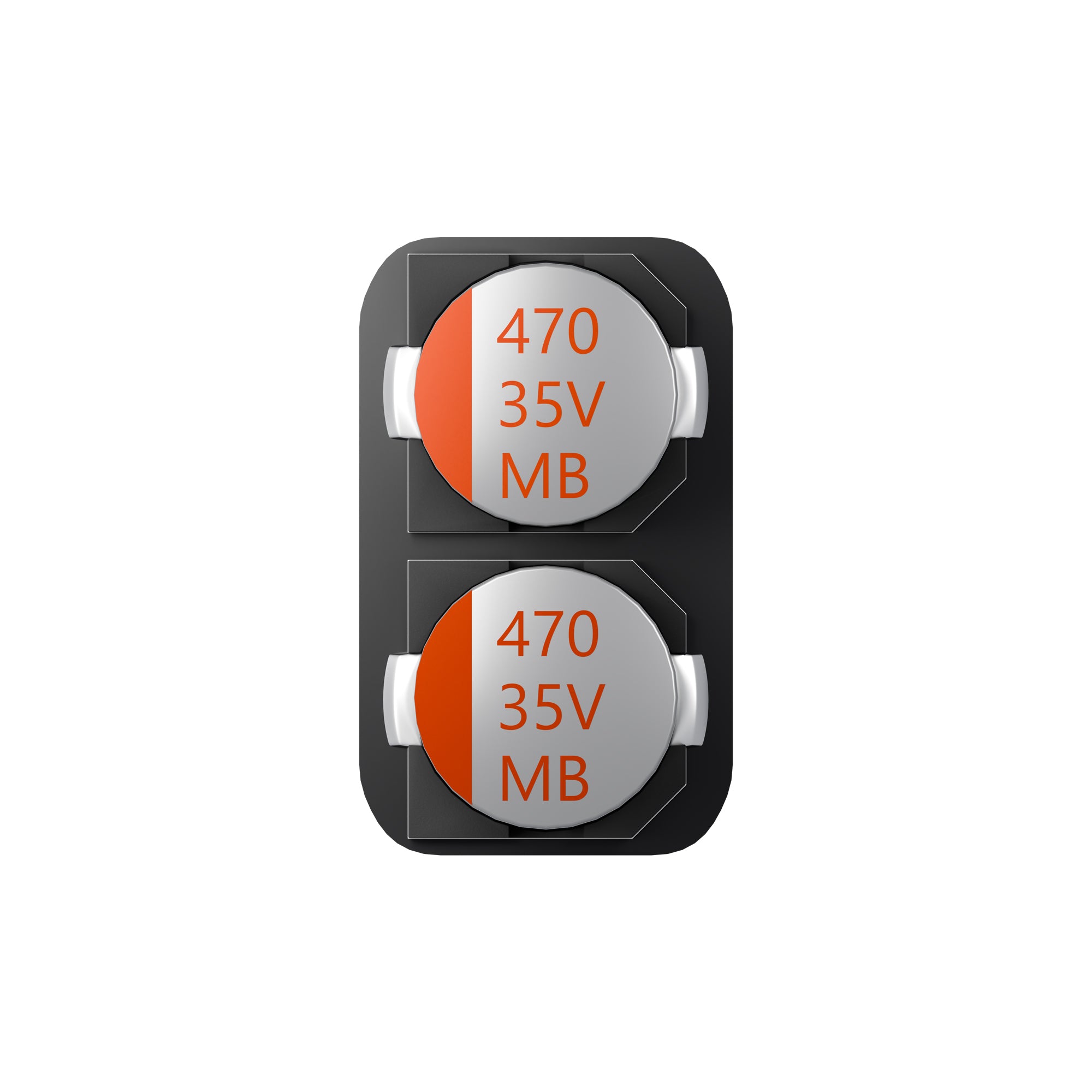

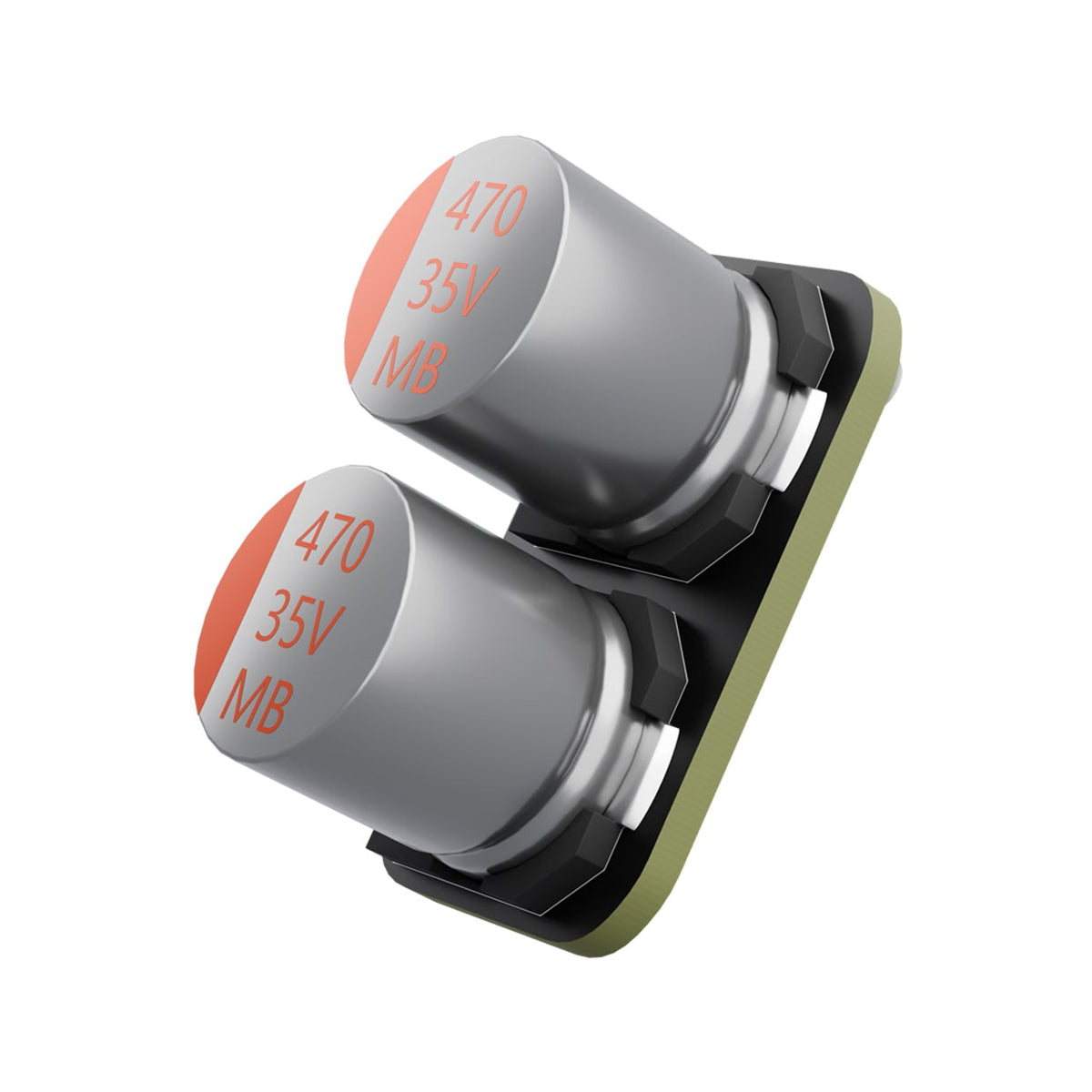

| Capacitors | 2 × 470µF 35V MB Solid-State |
Package :
- 1 × Flywoo CAP2-TVS ESC Power Filter Board (with pre-soldered TVS and capacitors)
⚠️ 下單前請先聯繫酷飛 LINE 官方帳號確認是否有現貨，確認後再下單。
加入 LINE 官方帳號（LINE ID：@729jvyax）
商品圖文說明
以下為本商品現有圖片，請搭配上方規格與選項確認實際購買內容。
