【Flywoo】OpenLager Nano 黑盒記錄模組｜0.4g・512MB
$541.00
跳到商品資訊
【Flywoo】OpenLager Nano 黑盒記錄模組｜0.4g・512MB
$541.00
推薦搭配配件
⚠️ 下單前務必先確認現貨
商品庫存流動快速，請先聯繫酷飛 LINE 官方帳號，確認商品型號、規格與現貨後再下單。
聯繫酷飛官方 LINE LINE ID：@729jvyax
zingala 銀角零卡分期
想使用銀角零卡分期付款，請前往本商品的銀角頁面選擇方案並完成申請。
產品介紹
【Flywoo】OpenLager Nano 黑盒記錄模組｜0.4g・512MB 是Flywoo 原廠 FPV 商品，對應原廠資料：Flywoo 0.4g Black Box OpenLager Nano module（512mb)。下單時請依本店商品選項確認版本、接頭、電壓、尺寸與數量；下方完整保留原廠目前公開的特色、規格、相容資訊、圖文與包裝內容。
本店可選規格
- Default
原廠完整資料：Flywoo 0.4g Black Box OpenLager Nano module（512mb)
About this product

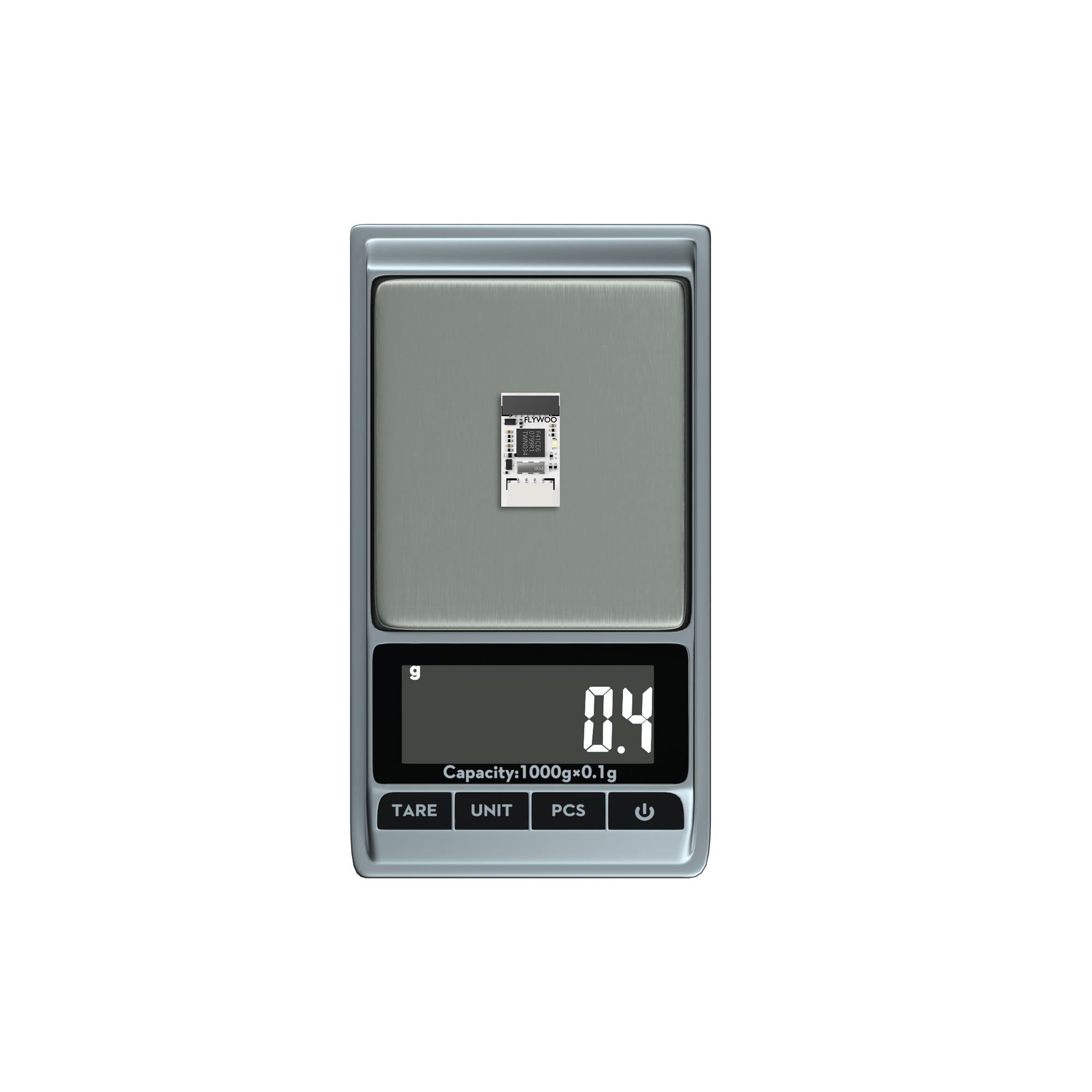

The world’s smallest flight data recorder, engineered for micro drones. Integrates 512MB SLC NAND Flash storage and a USB-C 3.0 reader. Ultra-compact design (83% smaller than traditional modules) at just 0.4g, ideal for FPV drones and space-constrained UAVs.
Key Features:
▶ Ultra-Compact Design – 14×7×3.5mm footprint, defying space constraints
▶ Dual-Mode Reader – Built-in USB 3.0 interface for high-speed data transfer, hot-swappable, and emergency USB drive functionality
configuration
- Storage: 512MB SLC NAND Flash
- Interface: USB-C 3.0 (backward compatible with USB 2.0)
- Voltage: 4.5V
- Dimensions: 14×7×3.5mm (module) / 18.2×15.4×6.2mm (reader)
- Operating Temp: -10°C to +40°C
- LED status:
1. Red light: power light, always on when powered on
2. Blue light:
Slow flashing: memory cannot be detected, use USB card reader to connect to computer to format
Fast flashing: flight data recording
In the box

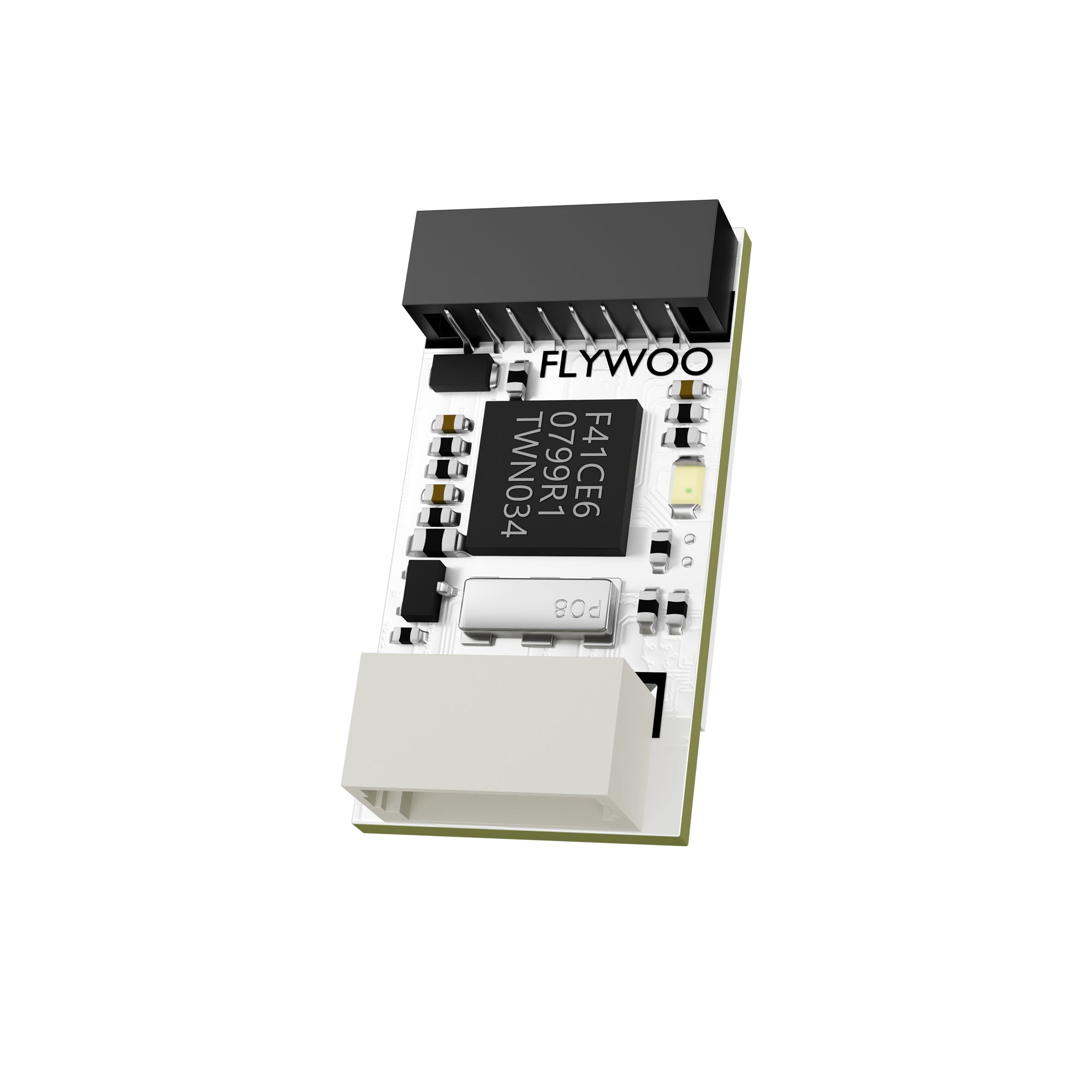

- 1x Black Box module

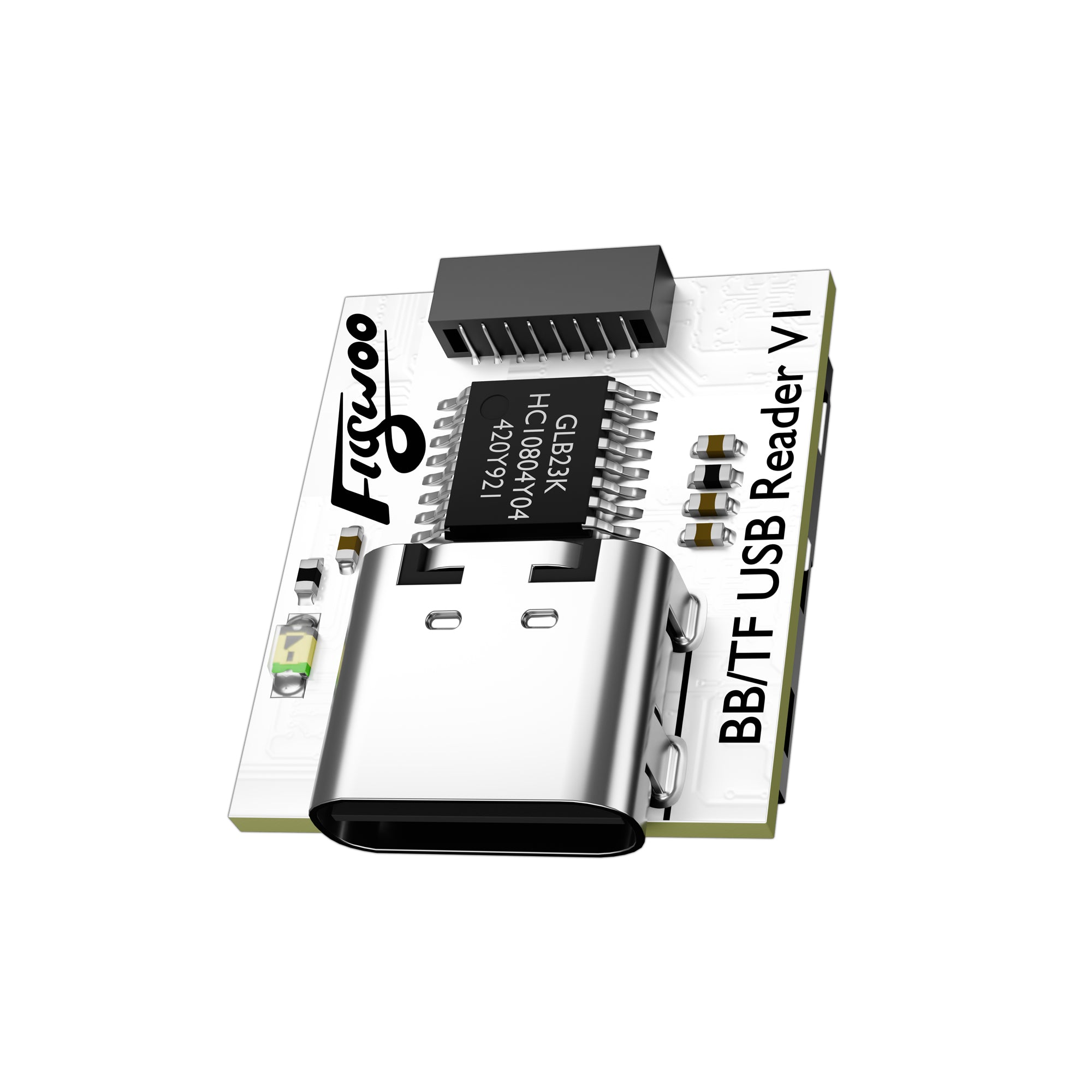

- 1x BBITF USB Reader Vi

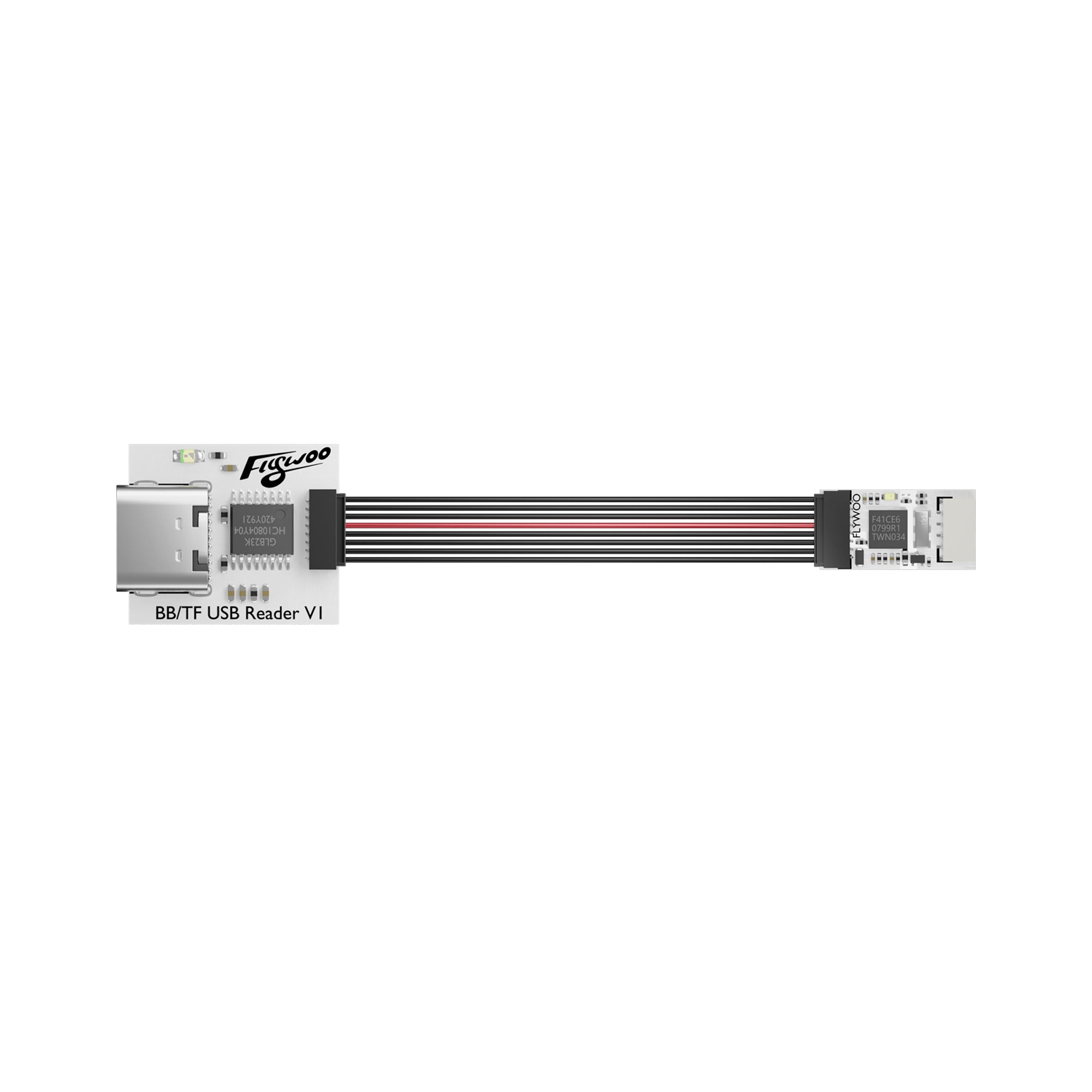

- 1x black box & USB Reader connector cable
- 1x 4P-0.8mm 10cm cable
LED status:
1. Red light: power light, always on when powered on
2. Blue light:
Slow flashing: memory cannot be detected, use USB card reader to connect to computer to format
Fast flashing: flight data recording
查看 Flywoo 官方頁：Flywoo 0.4g Black Box OpenLager Nano module（512mb)
