Flywoo 2.4G ExpressLRS ELRS 接收機 EL24E / EL24P

原廠完整資料：0.4g Flywoo 2.4G ExpressLRS ELRS EL24E / EL24P

New Version : 0.4g Flywoo TCXO 2.4G ELRS EL24E \ EL24P


ELRS receiver user manual

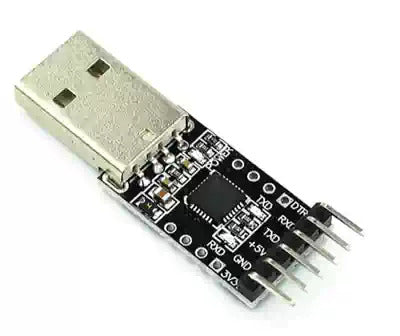

In order to prevent the receiver from not working due to the interruption of the BF/WIFI update, it is recommended to purchase a CP2102 programmer module to update the receiver firmware.

The Flywoo 2.4GHz Elrs Nano Series Receiver is an Open Source Program Based on Expresslrs, the Lightweight, the Lightweight, Minimal Size, Use ESP8285 MCU. So You Can Upgrade Firmware by WiFi, That's Too Simple, divided into two Version EL24E / EL24P.

1. EL24E: ESP8285 MCU, SX1280 RF CHIP, it has a Built-in Ceramic Antenna, Which Is Super Light and Small in Size.

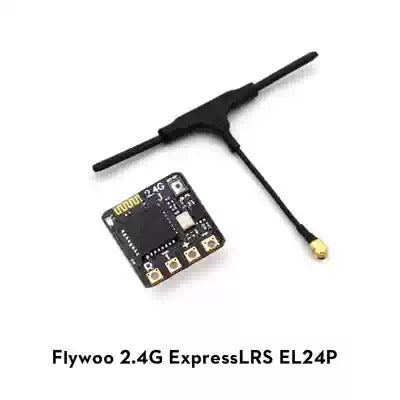

2. EL24P: ESP8285 MCU, SX1280 RF CHIP, use IPX ports, connect external T-type antennas, farther distance, stronger signal

 Due to the low-latency and high-refresh-rate rf module, They is the Ultra Light and nano size of the Ultra Light and Nano Size.

Specifications:
EL24E Nano Receiver

• Type: ISM
• ESP8285 MCU
• SX1280IMLTRT RF Module
• SMD Ceramic antenna
• Frequency Range: 2400 MHz to 2500 MHz
• Maximum receive refresh rate: 500Hz
• Minimum receiver refresh rate: 25Hz
• Working voltage: 5v

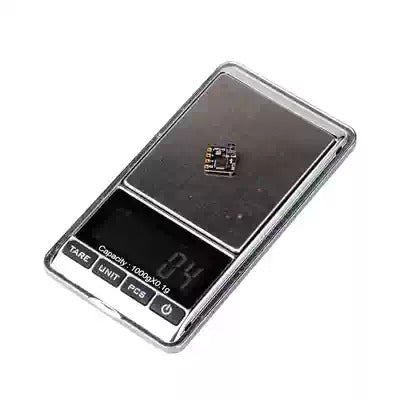

• Weight: 0.4g
• Dimension: 10.8mm*11mm*6mm
• Peak gain: 3.7dB

EL24P Nano Receiver

• Type: ISM
• ESP8285 MCU
• SX1280IMLTRT RF Module
• Frequency Range: 2400 MHz to 2500 MHz
• Maximum receive refresh rate: 500Hz
• Minimum receiver refresh rate: 25Hz
• Working voltage: 5v
• Weight: 0.4g
• Dimension: 10.8mm*11mm*6mm
• Peak gain: 3.2dB

Package include 1pcs 40mm half-wave dipole antenna

Notes:

currently our EL24E/EL24P pre-loaded firmware are Official versions, you can upgrade the official firmware when Official perfect target available.

More details

https://github.com/ExpressLRS/ExpressLRS

Bind procedure:

- Supply power to the EL24E/EL24P rx, wait until the LED on the RX is off, immediately turn off the power, and then repeat again the above steps. When the RX is powered on for the third time, the LED light will start to double-flash, which means that the RX enters the binding mode

- Insert the 2.4G ELRS TX to Radio transmitter, and choose External RF mode to CRSF protocol, then you can find ELRS menu from the Radio systems(Need to copy the ELRS.LUA file to the SD-Card tools first), Enter into ELRS and press [Bind], the LED on the RX module will getting to be solid if bind successfully.

- Receiver LED status meanings:

EL24E/EL24P RX: LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module; LED flash fast means in WIFI hotspot mode, you can connect the WIFI of the RX and upgrade firmware of the RX via visit 10.0.0.1 from the web browser(password: expresslrs)

查看 Flywoo 官方頁：0.4g Flywoo 2.4G ExpressLRS ELRS EL24E / EL24P
