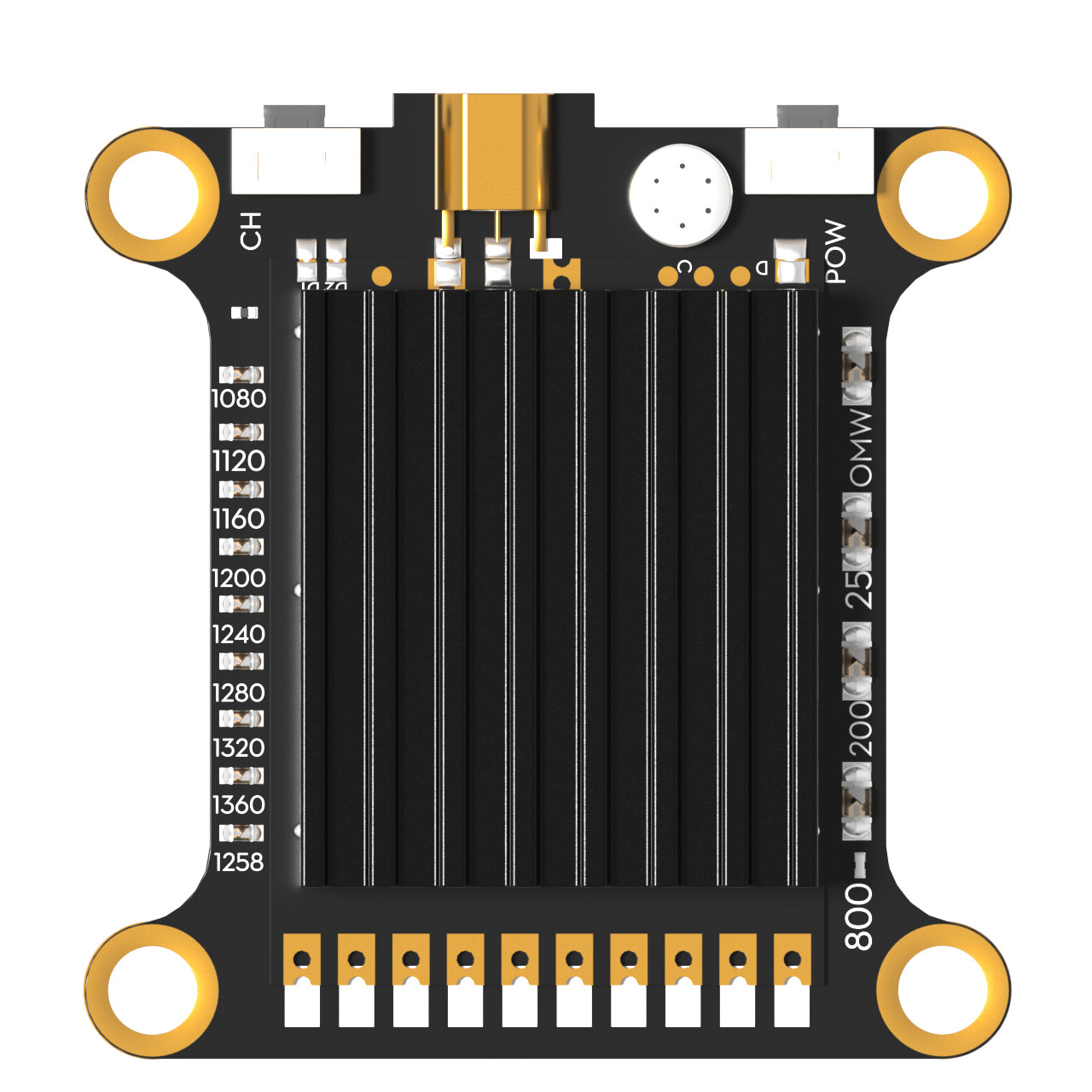

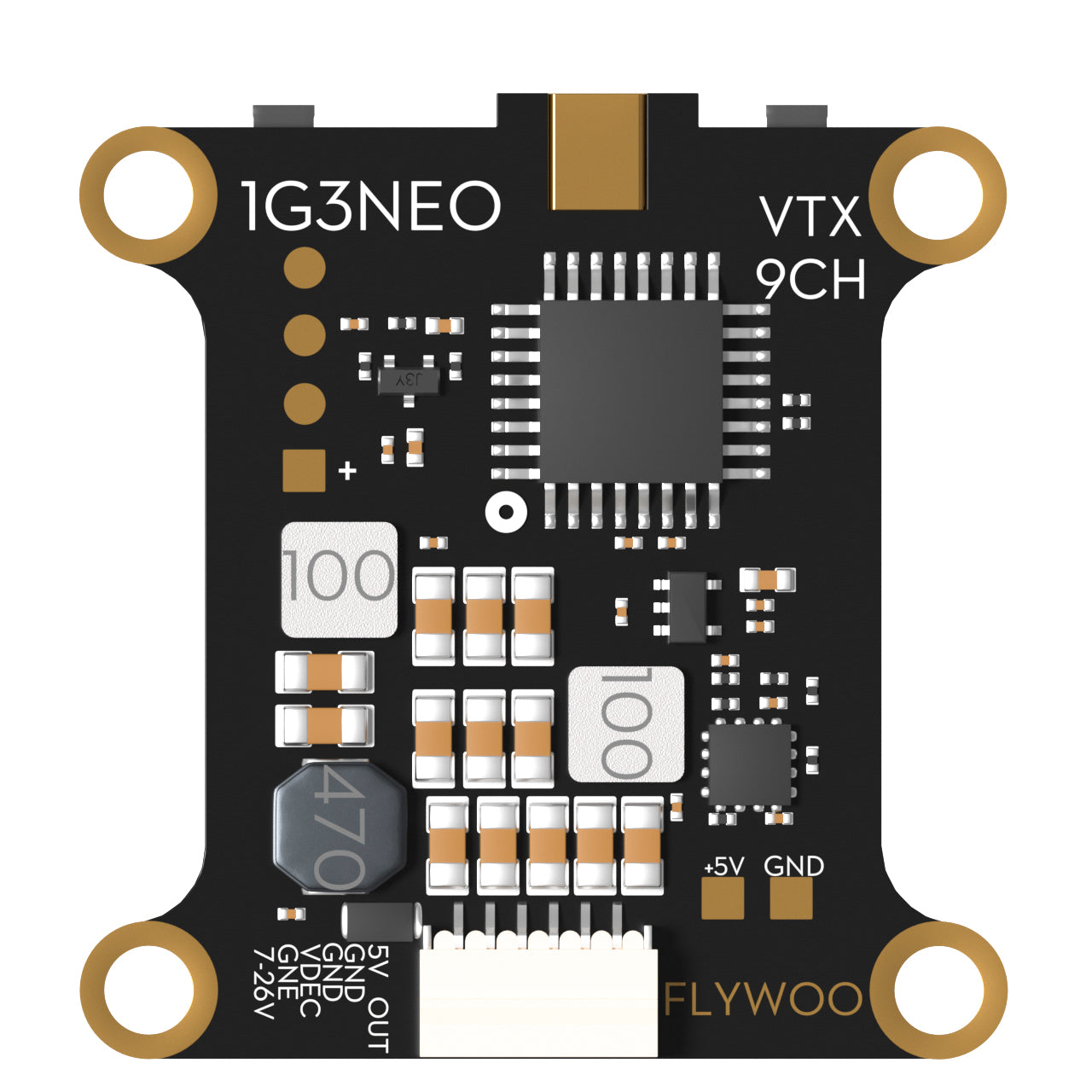

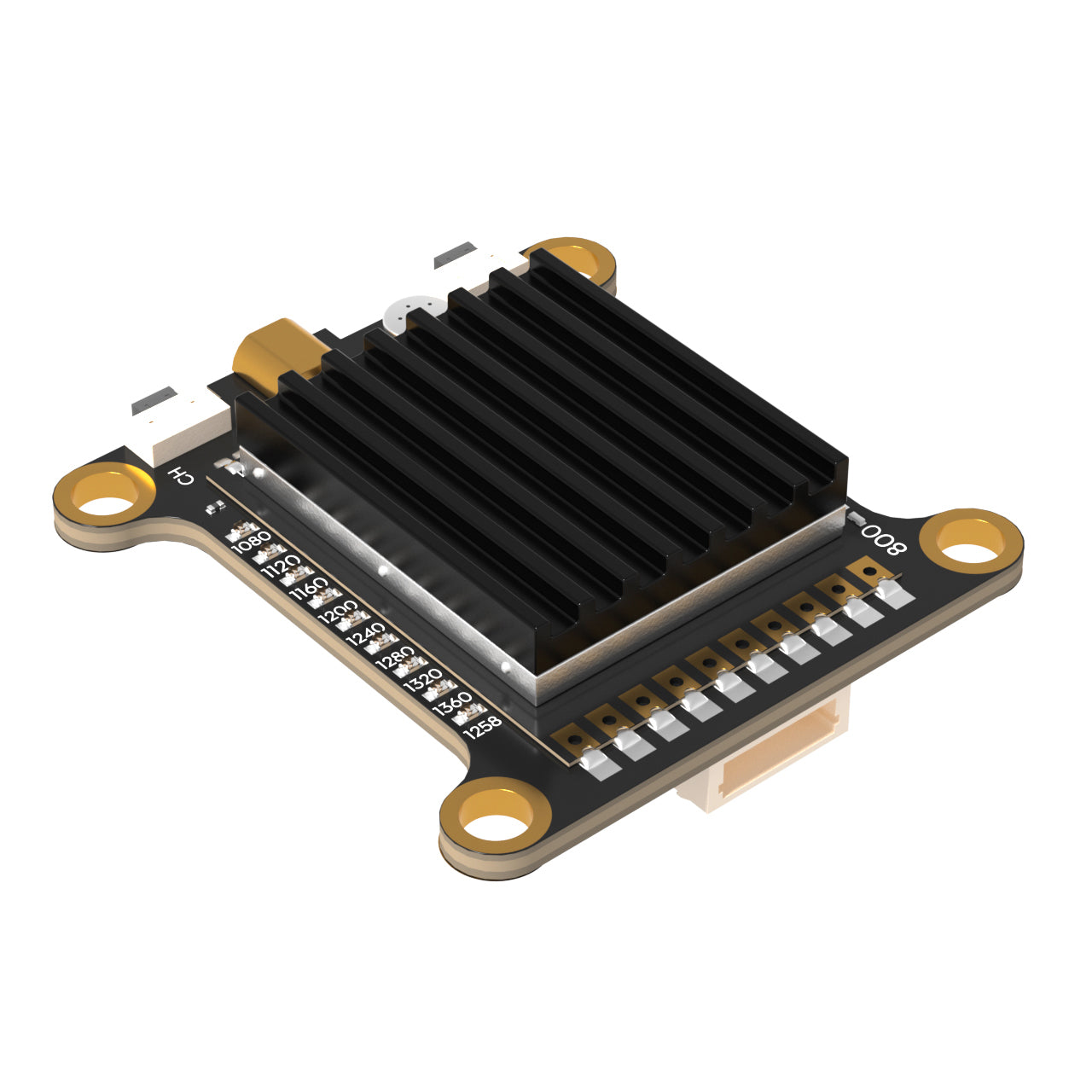

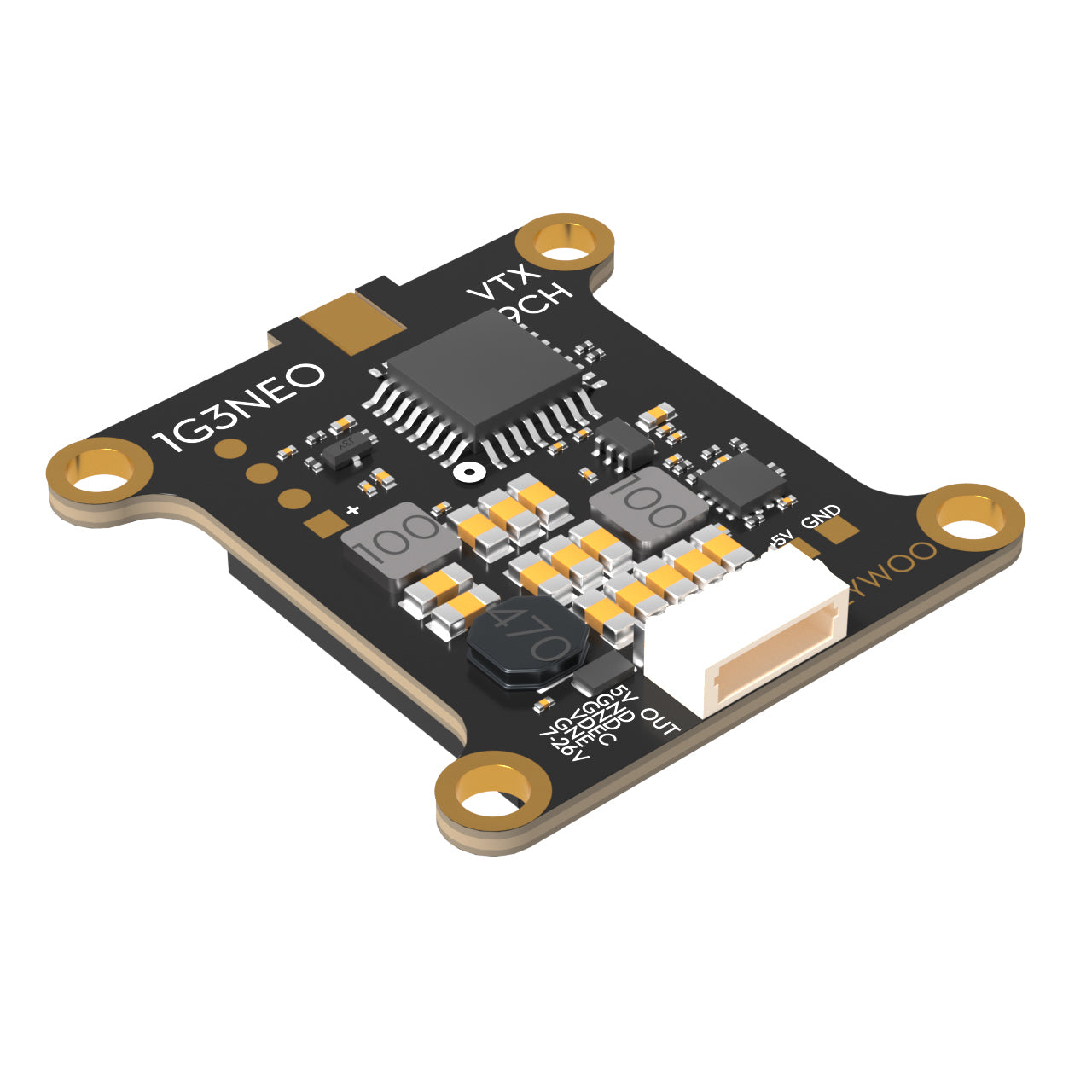

Flywoo 1.2GHz/1.3GHz 2W Video transmitter VTX-1G3 9CH
$2,152.00
跳到商品資訊
Flywoo 1.2GHz/1.3GHz 2W Video transmitter VTX-1G3 9CH
$2,152.00
Features & Specifications
-
8CH (1120,1160,1200,1240,1280,1320,1360,1258MHz)
-
RF power output: 0.1mw(0, pit mode), 25mw(1), 200mw(2), 2000mw(3)
-
Button control and LED indicators
-
Built-in AGC microphone
-
7-26V DC IN (2-6S LiPo)
-
Power Consumption: 280mA(2000mw) @12V IN
-
Video format: NTSC or PAL
-
Audio Subcarrier: 6.5 MHz & 6.0MHz, onboard microphone on 6.5MHz
-
RF Connector: MMCX
-
Weight: 12.2g
-
Size: board 35*35mm

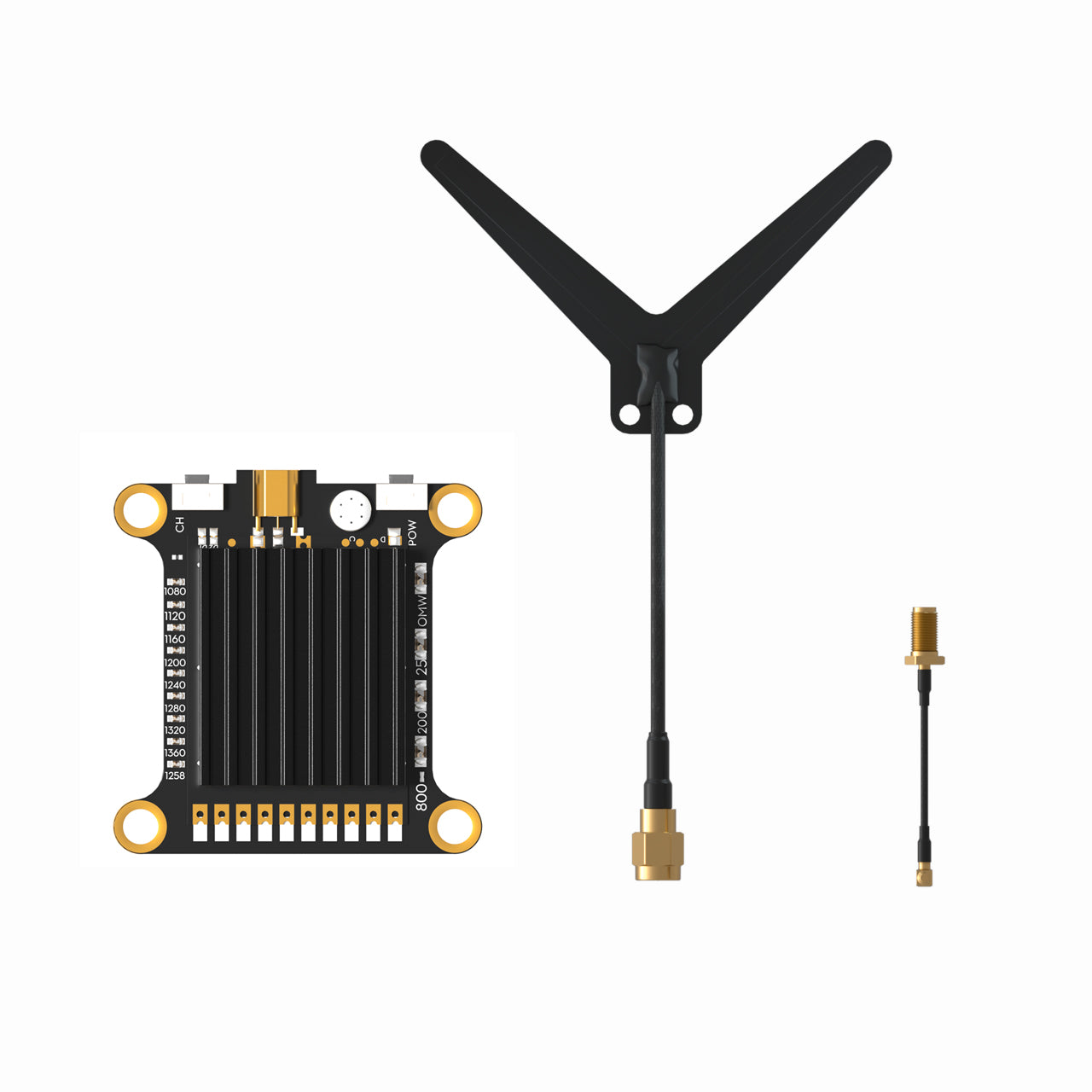

Packing
-
1x 1.2/1.3G Video transmitter VTX-1G3 8CH
-
1x Dipole antenna_SMA, center freq 1240MHz
-
1x MMCX to SMA cable
Settings
-
Press button-power(red led) to select RF output levels, 0 = 0.1mw pitmode, 1=25mw. 2=200mw, 3=2000mw
-
Press button-CH(blue led) frequency setting 1-8CH
