Flywoo 悟空 GOKU H743 PRO 55A 32Bit 128K 穿越機 飛塔

Flywoo 悟空 GOKU H743 PRO 55A 32Bit 128K 穿越機 飛塔

H743 PRO 55A AM32 飛塔
$2,990.00
跳到商品資訊
Flywoo 悟空 GOKU H743 PRO 55A 32Bit 128K 穿越機 飛塔

⚠️ 下單前請先加官方 LINE 確認現貨:本店商品需由客服確認庫存與交期,確認有貨後才會通知付款,請勿先匯款。

Flywoo 悟空 GOKU H743 PRO 55A 32Bit 128K 穿越機 飛塔

$2,990.00
版本

推薦搭配配件

⚠️ 下單前務必先確認現貨

商品庫存流動快速,請先聯繫酷飛 LINE 官方帳號,確認商品型號、規格與現貨後再下單。

聯繫酷飛官方 LINE LINE ID:@729jvyax

zingala 銀角零卡分期

想使用銀角零卡分期付款,請前往本商品的銀角頁面選擇方案並完成申請。

前往銀角分期付款

產品介紹

Flywoo 悟空 GOKU H743 PRO 55A 32Bit 128K 穿越機 飛塔 是Flywoo 原廠 FPV 無人機/穿越機產品,對應原廠資料:GOKU H743 PRO 55A 32Bit 128K 30*30 Stack -- Plug&Play O4 / O4 Pro。下單時請依本店商品選項確認版本、接頭、電壓、尺寸與數量;下方完整保留原廠目前公開的特色、規格、相容資訊、圖文與包裝內容。

本店可選規格

  • H743 PRO 55A AM32 飛塔
  • H743 PRO 飛控(30x30)
  • G55M 55A AM32 電調

原廠完整資料:GOKU H743 PRO 55A 32Bit 128K 30*30 Stack -- Plug&Play O4 / O4 Pro

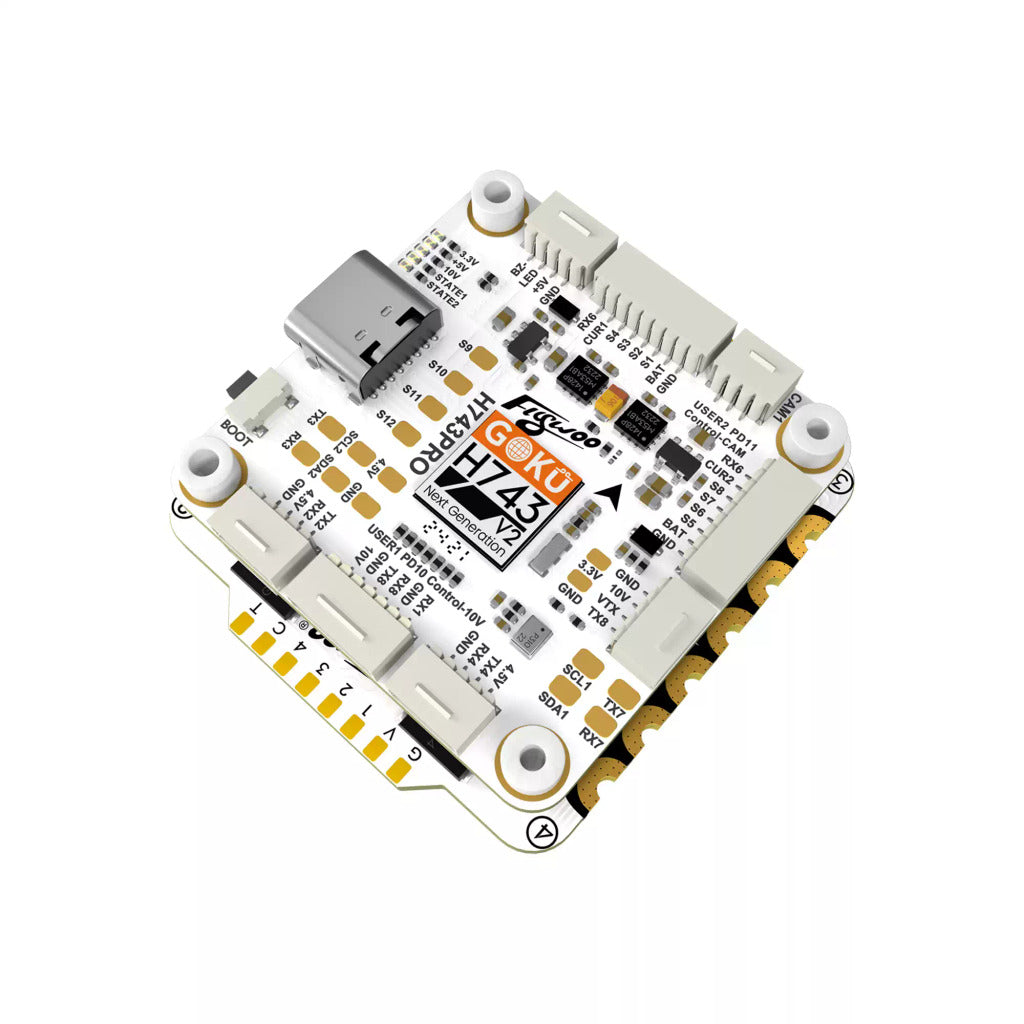

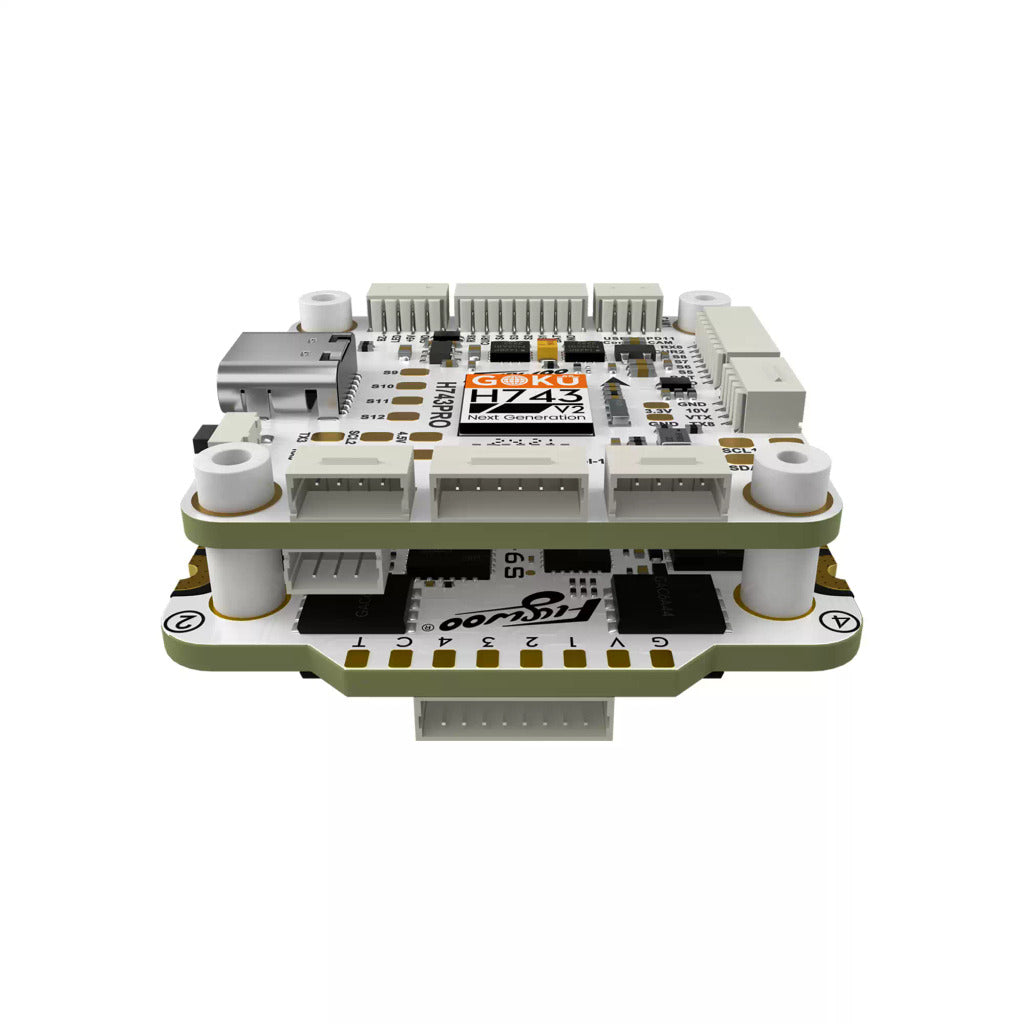

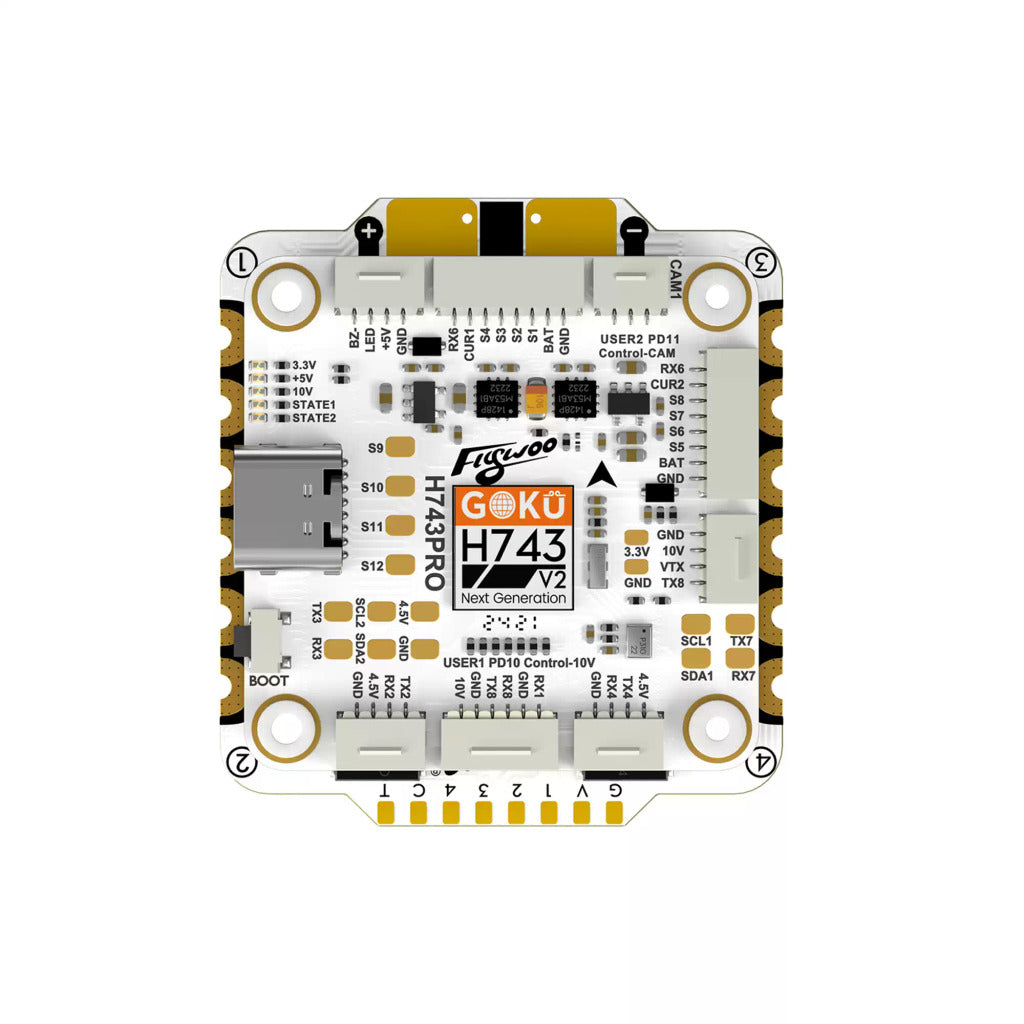

GOKU H743 Pro 32bit 55A Stack  is Flywoo’s flagship flight controller and ESC combo.
It features an STM32H743VIH6 chip (480MHz Cortex-M7 core) and dual ICM42688P gyros.
It offers 512MB blackbox , 10V3A/5V3A dual BECs, and 8 motor outputs for X8 multi-rotor.
It works with Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera control, analog/DJI VTX, GPS, RX ports, and dual ESC connectors.
Paired with the GOKU G55M 55A ESC, it delivers fast, precise handling for racing and freestyle.

Highlights:

1. Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.
2. Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.
3. Efficient Power: Dual 10V/5V 3A BEC provides stable power for peripherals.
4. Versatile I/O: 7 UART ports 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.
5. Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
6. Massive Storage: 512MB blackbox logs full flight data for analysis.

Specifications:

GOKU H743 PRO Flight Controller

  • BetaFlight Firmware: Flywoo H743PRO
  • INAV Firmware:  Flywoo H743PRO
  • APM Firmware:Flywoo H743PRO
  • Flash: 2MB
  • MCU: STM32H743VIH6
  • Gyroscope: ICM42688P*2
  • OSD: AT7456E(LGA16)
  • Barometer: DPS310/SPL06
  • Black Box: 512MB
  • UARTS: 1/2/3/4/6/7/8
  • I2C:2
  • PWM:12
  • Input Voltage: 7.4V-26V/2-6S LiPo/Lihv
  • BEC: 10V3A/5V3A
  • Camera support:CAM1,CAM2
  • Flight Controller Size: 36.5mm x 36.5mm x 8.45mm(Height including plug)
  • Mounting Holes: M3 30x30mm
  • Weight: 9.9g

GOKU G55M AM32 4in1 ESC

  • Support AM32
  • Support Dshot300, Dshot600
  • PWM frequency: 24k-128k
  • Input Voltage: 3-6S Lipo
  • Continuous Current: 55A
  • Firmware:
    AM32:AT32DEVF421
  • Weight: 15g

In the Box

  • 1 x FC&ESC Connection Cable
  • 1 x DJI O4/O4P Connection Cable
  • 1 x Buzzer Connection Cable
  • 1 x Receiver Connection Cable
  • 1 x GPS Connection Cable
  • 2 x Camera Connection Cable
  • 1 x Analog VTX Connection cable
  • 1 x XT60 Power Cable
  • 9 x M3 Shock-Absorbing Ball
  • 5 x M3 Rubber Ring
  • 1 x Capacitors
  • 5 x Nylon studs
  • 5 x Anti-Slip Nuts

Flywoo 悟空 GOKU H743 PRO 55A 32Bit 128K 穿越機 飛塔Flywoo 悟空 GOKU H743 PRO 55A 32Bit 128K 穿越機 飛塔

Flywoo 悟空 GOKU H743 PRO 55A 32Bit 128K 穿越機 飛塔

查看 Flywoo 官方頁:GOKU H743 PRO 55A 32Bit 128K 30*30 Stack -- Plug&Play O4 / O4 Pro


⚠️ 下單前請先聯繫酷飛 LINE 官方帳號確認是否有現貨,確認後再下單。
加入 LINE 官方帳號(LINE ID:@729jvyax)

官方商品圖片


Flywoo 原廠資料核對

商品識別:Flywoo 悟空 GOKU H743 PRO 55A 32Bit 128K 穿越機 飛塔

本頁名稱、變體、價格與既有圖片保留;實際規格、相容性與包裝以本頁所列選項為準。

原廠來源:Flywoo 官方網站
