FLYWOO 悟空 GM10 Nano V3.1 GPS 帶插頭
推薦搭配配件
⚠️ 下單前務必先確認現貨
商品庫存流動快速,請先聯繫酷飛 LINE 官方帳號,確認商品型號、規格與現貨後再下單。
聯繫酷飛官方 LINE LINE ID:@729jvyax
zingala 銀角零卡分期
想使用銀角零卡分期付款,請前往本商品的銀角頁面選擇方案並完成申請。
產品介紹
FLYWOO 悟空 GM10 Nano V3.1 GPS 帶插頭 是Flywoo 原廠 FPV 商品,對應原廠資料:GOKU GM10 Nano V3 GPS。下單時請依本店商品選項確認版本、接頭、電壓、尺寸與數量;下方完整保留原廠目前公開的特色、規格、相容資訊、圖文與包裝內容。
本店可選規格
- GM10 Nano V3.1
原廠完整資料:GOKU GM10 Nano V3 GPS
V3.1 Version : GOKU GM10 Nano V3.1 GPS
GOKU GM10 V3 GPS series is here!
Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster.
Description
Brand: FLYWOO
Model: GM10 NANO V3 GPS

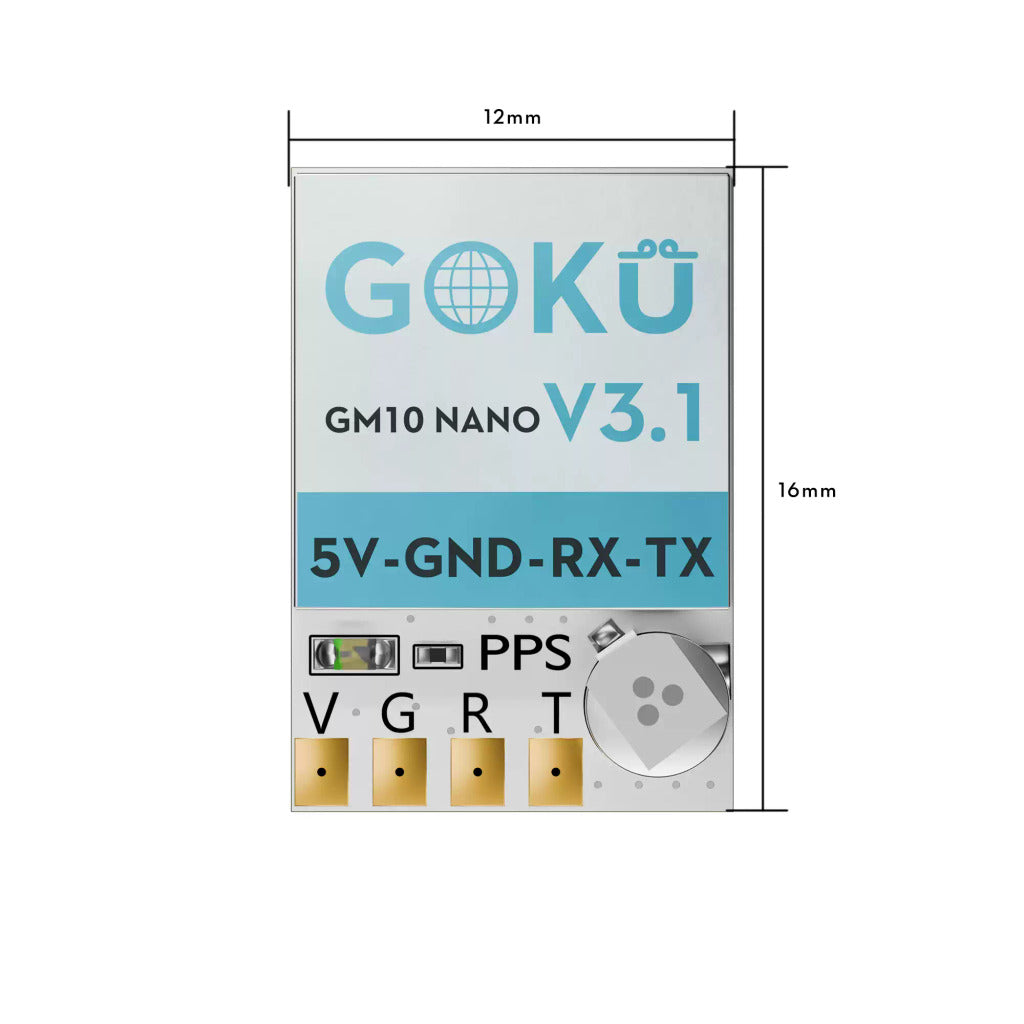

Dimension :12mm*16mm*4.5mm
Weight : 2.2g
Connector : 4pins Pad
Features:
GPS Module,Three Module
4pins Pad,ultra light weight
Specification
Electrical Characteristics
Chipset : M10050(Tenth Generation Chip)
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol : GPS,Galileo,BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel
Sensitivity
Tracking : -162dBm
Reacquisition : -160dBm
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 115200bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency : 1Hz-10Hz,Default 10Hz
Operational Limits
Altitude : 50,000m Max
Velocity : 500m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage :3.3-5V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C
Indicator :
PPS LED:yellow .PPS LED not bright when GPS not fixed,flashing when fixed
The Module’s Pins: RX TX 3.3-5V GND
Includes
1x GM10 NANO V3 GPS
1x 100mm Cable
1x Copper Foil

⚠️ 下單前請先聯繫酷飛 LINE 官方帳號確認是否有現貨,確認後再下單。
加入 LINE 官方帳號(LINE ID:@729jvyax)
商品圖片
Flywoo 原廠資料核對
商品識別:FLYWOO 悟空 GM10 Nano V3.1 GPS 帶插頭
本頁名稱、變體、價格與既有圖片保留;實際規格、相容性與包裝以本頁所列選項為準。
原廠來源:Flywoo 官方網站
原廠資料來源:https://flywoo.net/(已核對 Flywoo 官方網站;未改動價格、SKU、規格選項或庫存)
